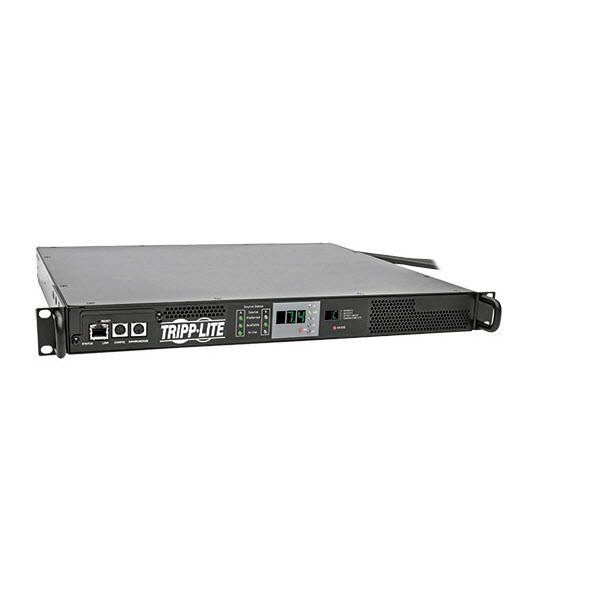

The Tripp Lite PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations.
Dual 10-foot (3-meter) input cords with IEC 309 32A Blue plugs connect to separate primary and secondary single-phase power sources, including out-of-phase sources.

Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy (+/- 1 percent). The PDU constantly evaluates the power quality of both input sources. To ensure connected equipment remains powered, dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds if the primary source fails or becomes unstable.

Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and has an IEC 309 32A Blue outlet for connecting a single device or an additional 230V PDU with IEC 309 32A Blue plug, such as Tripp Lite’s PDUMV32HV. Tiered access privileges allow both an administrator and a guest to log in. Automated alerts help prevent overloads, power loss and downtime. Digital display with LEDs indicates power availability, voltage, input status for both power sources, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).

Tripp Lite PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU Features,

Primary and Secondary Inputs for Power Redundancy

• Fault-tolerant, hot-swappable UPS protection when used with single UPS
• Offers remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations
• Fully redundant UPS protection when each cord is connected to separate UPS
• IEC 309 32A Blue (2P+E) inputs with 10 ft. (3 m) cords connect to separate primary and secondary single-phase power sources

Built-In IEC 309 32A Blue Outlet

• Powers a single device or indirectly powers equipment through a 0U 230V PDU with IEC 309 32A Blue (2P+E) input (sold separately)

Automatic Transfer Switching

• Dynamic solid-state (TRIAC) automatic transfer switching
• 1-5 ms transfer time ensures uninterrupted operation of connected equipment
• Switches to secondary power source if primary source fails or becomes unstable
• Built-in processor monitors power sources and prevents switching if secondary source is unavailable or of lower quality than primary source

Multifunction Digital Display with LEDs

• Reports input status for primary and secondary power sources, power availability, line voltage, frequency, amps, kilowatts and power factor

Advanced Network Monitoring

• Real-time load/current data with billing-grade accuracy (+/- 1 percent)
• Tiered access privileges allow both an administrator and guest to log in
• Optional ENVIROSENSE module (sold separately) monitors temperature and humidity
• Built-in Ethernet network interface allows full remote access for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP
