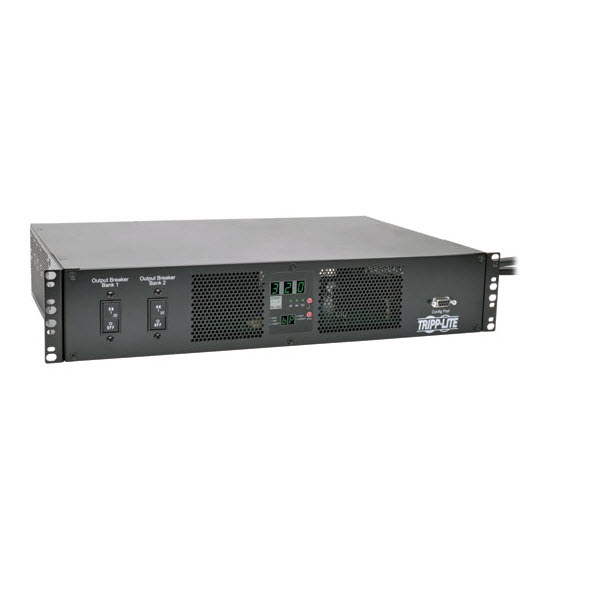

Tripp Lite 7.4kW Single-Phase ATS/Metered PDU, 230V Outlets, 2U Rack-Mount

The Tripp Lite PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Metered PDU provides power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Dual three-meter input cords with IEC 309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard 19-inch racks and features 18 outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker. Multifunction digital display with LED indicators reports output current, voltage and kW loading information.

Tripp Lite PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Metered PDU Features,

Primary and Secondary Inputs for Power Redundancy

• Provides power monitoring and enables redundant power for network devices with non-redundant power supply configurations
• Dual 3m input cords with IEC 309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase power sources

Automatic Transfer Switching

• Dynamic solid-state (TRIAC) automatic transfer switching
• Switches to secondary power source if primary source fails or becomes unstable
• 1–5 ms transfer time ensures uninterrupted operation of connected equipment
• Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source

20A Circuit Breakers

• Protect each of 2 single-phase output banks
• Front-panel LED indicates when breaker has tripped

Cord Retention Brackets

• Secures equipment power cords to reduce cable clutter and increase accessibility to connected components

Multifunction Digital Display

• Front-panel digital display with LED indicators reports output current, voltage and kW loading information

Mounts Horizontally in 2U of Rack Space

• Compatible with EIA-standard 19 in. 4-post racks and rack enclosures
