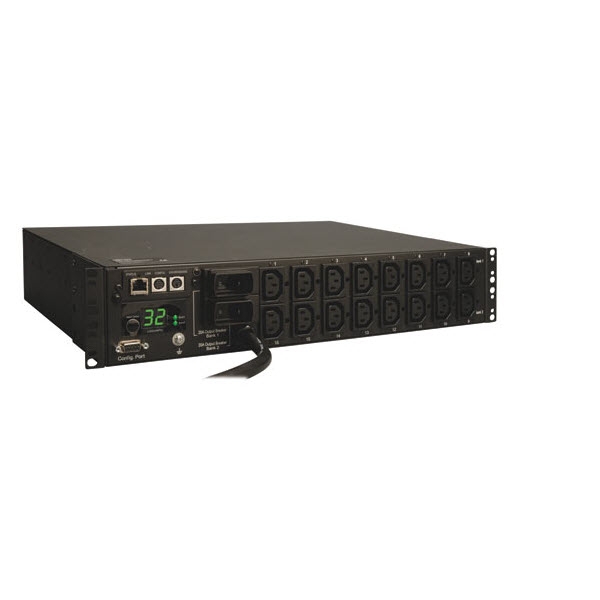

Tripp Lite PDUMH32HVNET Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

Tripp Lite PDUMH32HVNET Switched PDU Features

• 230V Switched PDU with built-in web/network interface in 2U rackmount form factor; 32A capacity
• Blue 230V IEC-309 32A (2P+E) input cable; 12 ft. / 3.6m power cable included
• 16 switched C13 outlets
• 2U horizontal rackmount form factor
• Network interface provides PDU control and data regarding input voltage, frequency and loading information
• Digital display reports load level information in amps
• Supports user-specified alarm notification thresholds
• DHCP/Manual configuration support
• 10/100 Mbps auto-sensing
• Real-time clock backup maintains the time of day and date even if the PDU is unpowered
• Tiered access privileges allow an administrator and a guest to login via web browser
• Alert notifications via email or SNMP traps offer immediate event notification
• Firmware upgrade ability supports future product enhancements
• Fully compatible with FREE PowerAlert Network Management System / NMS Software
• Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
• Mounting ears are reversible for front or rear facing rackmount installation
• Included cord retention brackets
• Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
• In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
• Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
• Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
