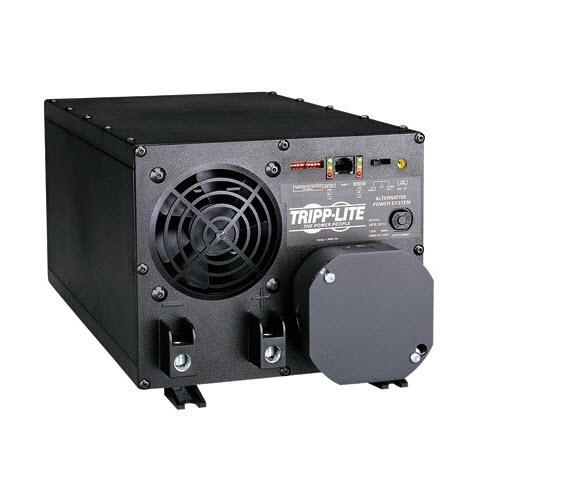

Tripp Lite APSINT Series 2000W Inverter/Charger with Auto-Transfer Switching, Hardwired

The Tripp Lite APSINT2012 2000W APS INT Series 12V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and pumps to portable lighting and computer equipment in heavy-load conditions. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.

Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans, the Tripp Lite APSINT2012 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime in heavy-load conditions. When powered by an external AC source, the unit keeps the user-supplied battery charged via a three-stage 15/60A selectable charging system while simultaneously delivering AC power to connected equipment.

Tripp Lite APSINT2012 Features

• Reliable Power for Mobile, Emergency and Remote Sites
• Generates safe, stable, computer-grade 230V AC power from 12V battery bank
• Unlimited runtime with variety of user-supplied batteries
• Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans
• Ideal for powering tools, saws, motors, pumps, portable lighting, appliances and computer equipment in heavy-load conditions

Meets Normal and Peak Power Demands

• 2000W of continuous power, 3000W of reserve power up to 1 hr.
• 4000W of peak power up to 10 sec. to accommodate surge power demands during equipment startup and cycling
• Automatic overload detector, built-in cooling fan and resettable AC circuit breakers protect unit from damage
• High-current DC input terminals for simple hardwired installation

Automatic Transfer Switching

• Transfer relay switches to inverter power during blackout in 20 ms
• 3-position switch enables Auto, Charge Only or System Off mode
• DIP switches configure high and low voltage auto-transfer

3-Stage 15/60A Selectable Battery Charger

• Serves as battery charger when external 230V AC power is supplied and powering connected equipment
• Protects battery from overcharging and overdischarging
• Low-battery protection prevents excessive battery depletion
• DIP switches configure wet/gel charging profiles

Optional Remote Control Capability

• RJ45 communication port allows connection of optional remote control module, such as Tripp Lite’s APSRM4

Front-Panel LEDs

• Indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status

Rugged Polycarbonate Housing

• Resists moisture, vibration and impact
• Built-in mounting feet for installation on any rigid horizontal surface
