Tripp Lite DVI over Cat5/Cat6 Active Extender, Box-Style Remote Video Receiver, 60Hz, 200-ft., TAA

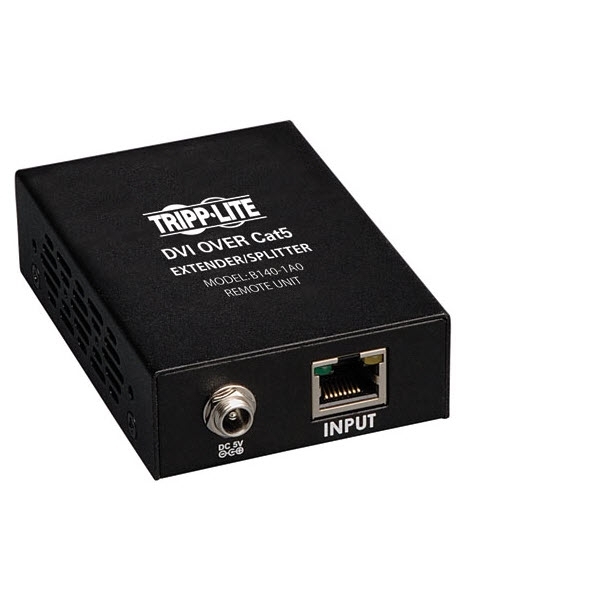

The Tripp Lite B140-1A0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1A0 is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft.

Tripp Lite DVI over Cat5/Cat6 Active Extender Features

• Transmit a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable
• For use with B140-002 or B140-004 extender/splitter transmitter units
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
• Extends a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
• Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
• Features a built-in Equalization control for adjustment of the video image
• Further expand the range and number of monitors by using a B140-110 repeater unit
• Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel)
• A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft.
• HDCP compatible
• Compatible with all operating systems
• Plug and play; no software or drivers required
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
