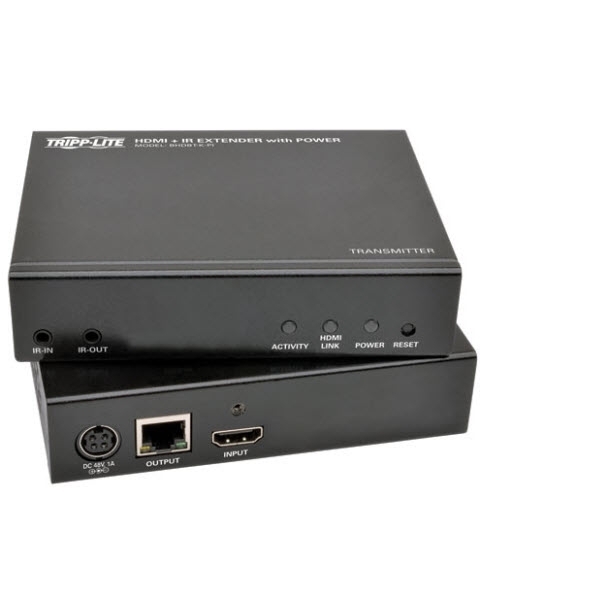

The Tripp Lite BHDBT-K-PI HDBaseT Class B (HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video and IR remote control signals up to 230 feet over a single Cat5e/6/6a cable, including video resolutions up to 1920 x 1080 (1080p). It also extends an Ultra High Definition (UHD) 4096 x 2160 or 3840 x 2160 (4K x 2K) @ 30Hz signal up to 130 feet.

In addition to HDMI and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source.

The two-way IR remote control feature (@ 39 KHz) lets you control your Blu-ray player or other HDMI source using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.

The plug-and-play BHDBT-K-PI supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware.

Tripp Lite HDBaseT Class B HDMI over Cat5e/6/6a Extender Kit Features,

Extends HDMI Video/Audio and IR Control Signals with Power Over a Single Cat5e/6/6a Cable

• Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths
• Extends an Ultra High Definition (UHD) 4096 x 2160 or 3840 x 2160 (4K x 2K) @ 30Hz signal up to 130 ft.
• Extends a high-definition 1920 x 1080 (1080p) signal up to 230 ft.
• Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
• Supports 3D video, EDID and HDCP
• Reduces cable clutter and installation costs
• Built-in PoE technology powers receiver over Cat5e/6/6a cable, eliminating need for external power source

Controls IR Devices

• 2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)

Locking HDMI Ports on Transmitter and Receiver

• Prevent cables from coming loose or disconnected, ensuring an intact signal
• Ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors

Easy to Set Up and Use

• Plug and play with no software or drivers to download and install
• Includes mounting hardware for attaching each unit to a wall, rack or pole

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
