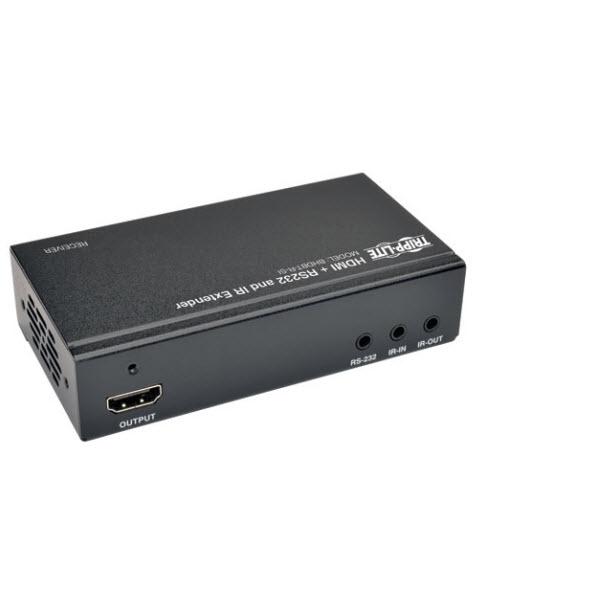

The Tripp Lite BHDBT-R-SI HDBaseT Class B (HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Receiver works in tandem with the Tripp Lite BHDBT-Series matrix transmitter in your HDBaseT Class B installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals. The BHDBT-R-SI supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.

Using a single Cat5e/6/6a cable, the BHDBT-R-SI can extend an HD 1920 x 1080 (1080p) @ 60Hz signal up to 230 feet (70 m) or an Ultra High Definition (UHD) 4096 x 2160 or 3840 x 2160 (4K x 2K) @ 30Hz video signal up to 130 feet (40 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI Extender Transceivers between the receiver and transmitter for a total range up to 780 feet (4K x 2K @ 30Hz) or 1,380 feet (1080p @ 60Hz) with a monitor connected to each transceiver.

You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port (ideal for use with Tripp Lite’s P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.

Tripp Lite HDBaseT Class B HDMI over Cat5e/6/6a Extender Receiver, Serial, IR Features,

Supports the Latest Video and Audio Applications

• Connects to Tripp Lite BHDBT-Series matrix transmitter with a single Cat5e/6/6a cable
• Extends an Ultra High Definition (UHD) 4096 x 2160 or 3840 x 2160 (4K x 2K) @ 30Hz signal up to 130 ft. (40 m)
• Extends a High Definition 1920 x 1080 (1080p) @ 60Hz signal up to 230 ft. (70 m)
• Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
• Supports 36-bit Deep Color (12 bits per channel), CEC passthrough, 3D video, EDID and HDCP
• Add up to 5 BHDBT-TR-SI Extender Transceivers to further expand the range of your installation up to 780 ft. (4K x 2K @ 30Hz) or 1,380 ft. (1080p @ 60Hz) with a monitor attached to each transceiver

Allows You to Control Other Devices

• 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
• RS-232 serial port supports 115 Kbps full-duplex baud rates for devices such as scanners and touchscreen monitors

Easy to Set Up and Use

• Plug-and-play engineering no software or drivers to download and install
• Included mounting hardware lets you install unit on a wall, rack or pole
• Locking HDMI port (ideal for use with Tripp Lite’s P569-006-LOCK HDMI cables) prevents cable from coming loose or disconnected, ensuring an intact signal

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
