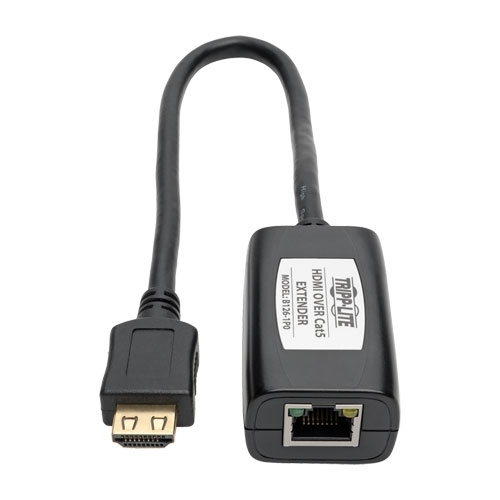

Tripp Lite HDMI over Cat5/6 Passive Extender, Box-Style Remote Receiver, 60 Hz, 100-ft., TAA
The Tripp Lite B126-1P0 HDMI over Cat5/Cat6 Passive Remote Receiver works with Tripp Lite’s B126-002 and B126-004 transmitters to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It’s ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.
The B126-1P0 can extend a 1080i (60 Hz) signal up to 100 feet (30.5 m) or a 1080p (60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series) between it and the transmitter. The built-in HDMI cable features a latching connector that helps prevent accidental disconnection. No external power is required.
In addition to crystal-clear video, the B126-1P0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install.
Tripp Lite B126-1P0 HDMI over Cat5/Cat6 Passive Remote Receiver Features
- Works in tandem with Tripp Lite’s B126-002 and B126-004 transmitter units
- Extends a 1080i (60 Hz) signal up to 100 ft. (30.5 m)
- Extends a 1080p (60 Hz) signal up to 50 ft. (15.2 m)
- Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
- Built-in HDMI cable with latching connector to help prevent accidental disconnection
- Works with all operating systems and HDMI video sources
- Supports HD resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter
- Supports 24-bit True Color (8 bits per channel) and HDCP
| Product Name | Tripp Lite HDMI over Cat5/6 Passive Extender, Box-Style Remote Receiver, 60 Hz, 100-ft., TAA |
|---|---|
| Weight | 0.11 Kg |
| Manufacturer | Tripp Lite By Eaton |
| Color | Black |
