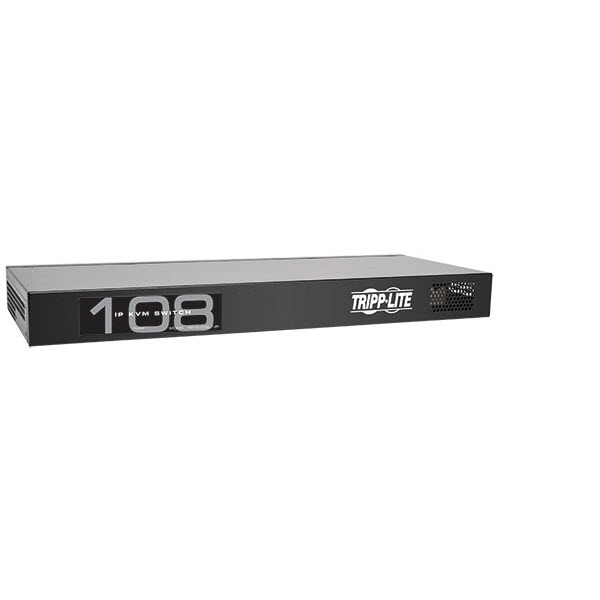

Tripp Lite’s B072-008-1-IP KVM Switch is the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.

This KVM switch can be accessed and controlled remotely, so there’s no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.

Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. It supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.

Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.

Tripp Lite NetCommander 8-Port Cat5 1U Rack-Mount 1+1 User VGA USB KVM Switch Features,

Saves Space and Money

• Mounts in a standard 19 in. rack
• Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
• Use a Server Interface Unit, B078-101-USB-1 (for USB) or B078-101-PS2 (for PS/2) with each server to be connected with Cat5 cable; use a B078-101-USB2 to support Virtual Media data transfer rates up to 12Mbps
• To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room

• Control this KVM switch over IP: remote access means there’s no need to travel to the server room or network closet
• Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
• A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
• 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single remote session
• Supports both IPv4 and IPv6

Simplifies IT Tasks

• On-screen display, hot keys and remote toolbar for easy use
• Free NetCommander-AXS Management Software gives you remote access and control over all your Tripp Lite NetCommander IP KVM switches (B070 and B072 series)
• Supports VGA video resolutions up to 1920 x 1080 @ 60 Hz
• 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; assign individual ports to an IP PDU port to power on/off the server connected to that port
• BIOS-level control of any brand and model server, regardless of the server’s condition and network connectivity
• Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were directly stored on it
• Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit; a B078-101-USB-1 Server Interface Unit can be used for Virtual Media support, but only at speeds up to 1Mbps
• Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
• System-sent messages to SNMP server notify you of network failures
• Supports RADIUS and LDAP/S authentication
• Log tracks events such as logins, reboots and network setting changes on your installation

Advanced Security Features

• Multi-level password protection: create administrator accounts with full access and user accounts with limited access
• Supports TLS 1.2 security protocol
• You can install SSL certificates to ensure secure transactions between web servers and browsers

Built to Last

• Flash-upgradable firmware over the network
• Heavy-duty steel housing stands up to frequent use
