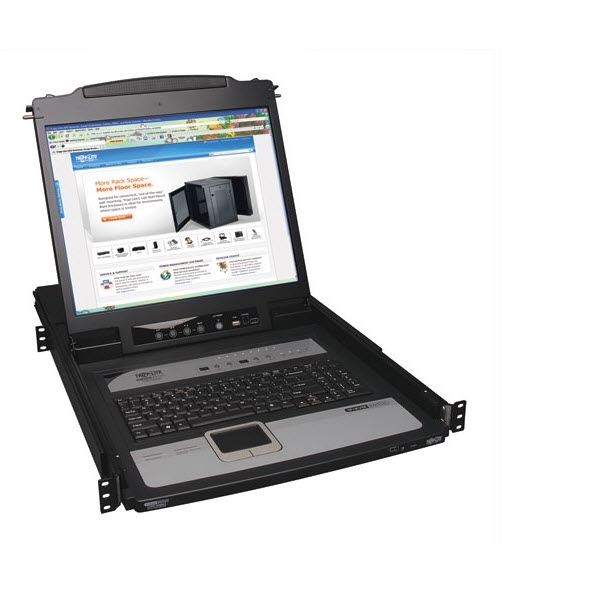

Tripp Lite’s B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers.

The B020-U08-19-IP has a built-in 19” LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.

This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

Tripp Lite NetDirector 8-Port 1U Rack-Mount Console KVM Switch Features,

Saves Space and Money

• Combines 8-port KVM switch, 19-in. LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium
• Mounts into 19”-wide rack, 26”-38” deep
• Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use

IP Remote Access for Fewer Trips to the Server Room

• Remote access offers convenience of controlling servers from anywhere…no need to travel to the server room or network closet
• Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping

Simplifies IT Tasks

• Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
• Panel array mode lets you monitor multiple ports at same time
• Supports RADIUS and LDAP/S authentication
• Auto-scan mode automatically sequences through all active ports accessible to the user
• Includes USB port for an external mouse and a USB 1.1 port for sharing a peripheral across the installation
• Log server tracks events on your installation

Large 19” LCD

• Extra-wide display makes multitasking easier
• Supports video resolutions up to 1280 x 1024; remote monitor resolutions up to 1600 x 1200
• DDC emulation allows for optimal output to the LCD

Advanced Security Features

• Includes password protection and advanced encryption: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
• Allows up to 64 user accounts, with 3 levels of access

Expandability and Long-Lasting Reliability

• Compatible with all major operating systems for easy integration into existing structure
• Firmware is upgradable so your software remains up-to-date
• Heavy-duty steel housing stands up to frequent use

Tripp Lite’s B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers.
The B020-U08-19-IP has a built-in 19” LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.
This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
Tripp Lite NetDirector 8-Port 1U Rack-Mount Console KVM Switch Features,
Saves Space and Money
Combines 8-port KVM switch, 19-in. LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premiumMounts into 19”-wide rack, 26”-38” deepFlip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
IP Remote Access for Fewer Trips to the Server Room
Remote access offers convenience of controlling servers from anywhere…no need to travel to the server room or network closetSupports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping
Simplifies IT Tasks
Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or JapanesePanel array mode lets you monitor multiple ports at same timeSupports RADIUS and LDAP/S authenticationAuto-scan mode automatically sequences through all active ports accessible to the userIncludes USB port for an external mouse and a USB 1.1 port for sharing a peripheral across the installationLog server tracks events on your installation
Large 19” LCD
Extra-wide display makes multitasking easierSupports video resolutions up to 1280 x 1024; remote monitor resolutions up to 1600 x 1200DDC emulation allows for optimal output to the LCD
Advanced Security Features
Includes password protection and advanced encryption: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSLAllows up to 64 user accounts, with 3 levels of access
Expandability and Long-Lasting Reliability
Compatible with all major operating systems for easy integration into existing structureFirmware is upgradable so your software remains up-to-dateHeavy-duty steel housing stands up to frequent use
