PRODUCT OVERVIEW

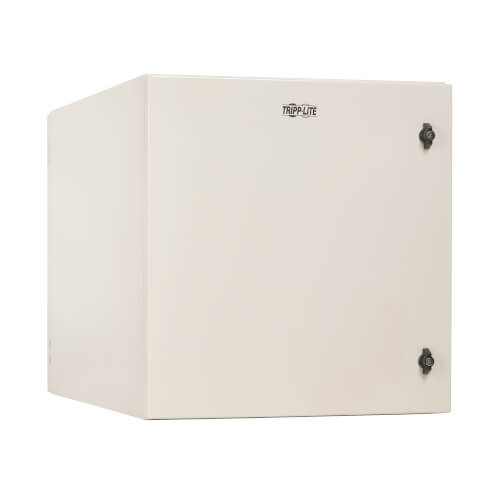

Compact Wall-Mount Enclosure for Rack Equipment up to 32.5 in. Deep
The SmartRack® SRN4G12UHD industrial enclosure is engineered to accommodate 12U of 19-inch rack-mount equipment, including UPS systems, battery packs, and cabling. Built from heavy-duty steel with a resilient gray powder-coated finish, this enclosure supports a maximum load of 200 pounds (90.7 kilograms) and is suitable for both indoor and outdoor use.

NEMA 4 Enclosure for Superior Protection in Harsh Conditions
The SRN4G12UHD NEMA 4 enclosure offers exceptional protection against water ingress (including rain, sleet, snow, splashing, and hose-directed water), solid contaminants (such as falling dirt and windblown dust), and ice formation. Ideal for industrial environments like factories, construction sites, utility plants, power stations, transportation terminals, distribution hubs, and warehouses, this enclosure ensures that sensitive equipment remains secure, organized, and protected from harsh elements.

Secure Locks to Prevent Theft, Tampering, and Damage
The fully welded steel housing of the SRN4G12UHD locks securely with included keys, safeguarding its contents from theft, tampering, dust, and contaminants. The weather-sealed doors open on robust hinges for easy access to equipment and cabling during installation and maintenance. A bottom conduit cutout allows for efficient routing of data and power cables, ensuring a clean and organized setup.

Simple Installation for Enclosure and Equipment
The 12U industrial enclosure arrives fully assembled and is ready for wall mounting with your hardware. The front and rear mounting rails adjust independently to fit equipment up to 32.5 inches deep. All necessary hardware for installing equipment inside the enclosure is included, making setup quick and easy.

Package Includes
• SRN4G12UHD Industrial Enclosure
• (48) 10-32 screws
• (48) M6 washers
• (6) LDPE sheet metal plugs
• (6) M10 foam washers
• (2) Keys
• Owner's manual
