Tripp Lite SRW6UDPVRT Low Profile Switch 6U Wall Mount Wide SmartRack
Actual Stock Can Be Confirmed After Placing the Order.
SKU
SRW6UDPVRT
Pay 4 interest-free payments of AED 421.00.Learn more

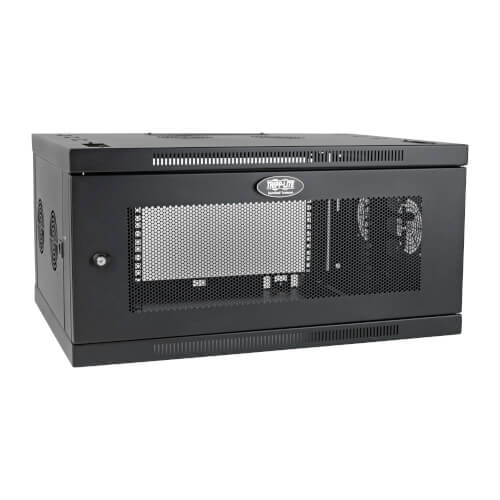

Tripp Lite SRW6UDPVRT Low-Profile Switch 6U Wall-Mount Wide SmartRack
6U rack cabinet with extra width for convenient cable management houses, organizes and secures standard 19 in. rack equipment.
PRODUCT OVERVIEW
6U Wall-Mount Enclosure Houses EIA-Standard 19 in. Rack Equipment up to 20.5 in. Deep
This SmartRack® rack cabinet is designed to house 6U of equipment, such as network switches and patch panels. It's recommended for branch offices, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kg).
Lockable for Simple and Secure Equipment Access
The front door and side panels lock securely to help prevent damage, tampering or theft. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom access ports allow easy cable routing through the cabinet.
Generous Airflow Keeps Equipment Cool
Round ports built into the top, bottom and both sides are designed for optional ventilation fans (such as SRFANWM, sold separately) that keep your equipment cool and functioning at their peak.
Designed with Extra Width for Easier Cable Access and Better Airflow
The SRW6UDPVRT is three inches wider than standard-width wall-mount racks. Combined with two vertical cable managers in front and two cable pass-through ports on top, the extra width provides convenient cable management along the front of the rack. This allows easier cable access from the front and increases airflow by minimizing rear cable clutter that can obstruct vents. Cutouts on top of the rack can be used to secure cable bundles.
Easy Enclosure and Equipment Installation
This 6U server rack comes fully assembled and ready to mount to the wall with user-supplied hardware. The side panels can be removed for convenient installation, maintenance and replacement of equipment. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. Front and rear mounting rails adjust independently to accommodate equipment up to 20.5 inches deep, including network switches and patch panels.
Meets Payment Card Industry Standards
The SRW6UDPVRT provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.
Package Includes
• SRW6UDPVRT SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
• (22) M6 screws
• (22) M6 cage nuts
• (22) M6 cup washers
• (22) 12-24 screws
• Removable mounting plate
• Vertical cable management fingers
• (3) Mounting plate screws
• (2) Keys
• Owner’s manual
• (22) M6 screws
• (22) M6 cage nuts
• (22) M6 cup washers
• (22) 12-24 screws
• Removable mounting plate
• Vertical cable management fingers
• (3) Mounting plate screws
• (2) Keys
• Owner’s manual
| Product Name | Tripp Lite SRW6UDPVRT Low Profile Switch 6U Wall Mount Wide SmartRack |
|---|---|
| Type | 6U |
| Dimensions | 800(W) x 1000(D) |
| Manufacturer | Tripp Lite By Eaton |
| Color | Black |
| Country of Origin | United States |
| Weight | 45.20 Kg |
