Tripp Lite's SU60KX/26B (60kVA) SmartOnline Modular 3-Phase Intelligent, True On-Line UPS System provides 100% system availability with N+1 modular architecture and 1+1 parallel capability. In N+1 configuration, the SU60KX/26B provides three self-contained, redundant 20kVA power modules that can be hot-swapped (load remaining powered) if maintenance is required. In 1+1 configuration, two SU60KX/26B models connected in parallel can provide fail-safe redundancy (two 60kVA models supporting a 60kVA load) or increased capacity (two 60kVA models supporting a 120kVA load).

The SU60KX/26B provides mission-critical equipment with the highest level of power protection available. Large capacity 60,000VA/48,000W UPS continually converts incoming AC power into filtered DC power, and then resynthesizes it back into AC power with a pure sine wave. Perfectly regulated, continuous sine wave output with zero transfer time assures compatibility with all equipment types. High input power factor, advanced IGBT inverter technology and Digital Signal Processor (DSP) technology produce less than 3% input total harmonic distortion (THDi).

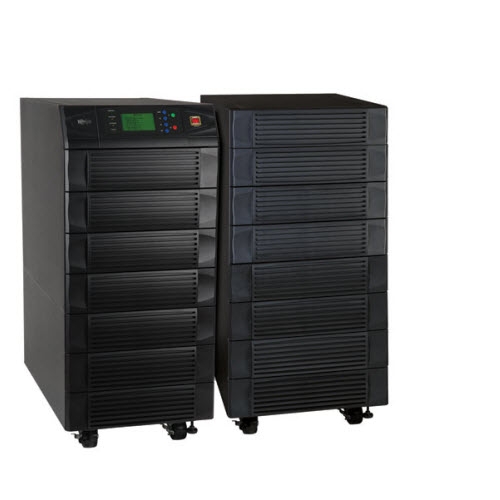

With low THDi, generators run cooler and last longer, allowing managers to save installation costs by installing a generator with a capacity equal to the equipment load (1:1 ratio). Extremely efficient operation (up to 97%) saves money by lowering electricity consumption. Hardwire input and output connections support a variety of permanent or PDU-style power connections. The SU60KX/26B features 220/380V, 230/400V or 240/415V AC, 3-phase, 4-wire + ground, wye input and output. It also features a wide input voltage correction range: 173-300V/276-477V AC. Frequency is 50 or 60 Hz (auto-selectable). SU60KX/26B power modules are housed in a single small-footprint tower compartment. Included battery modules (Models BP480V26B) are housed in a separate stand-alone hardwired external battery compartment (required for UPS operation/backup battery support). Battery runtime can be extended with additional stand-alone hardwired external battery modules. A manual bypass breaker and an automatic bypass function ensure 100% availability of connected equipment by safely passing through AC power if the UPS requires maintenance.

A built-in RS-232 communication port works with PowerAlert Software to provide shutdown commands and condition reporting. An accessory slot accepts an optional internal SNMP card (Model SNMPWEBCARD) for remote shutdowns, reboots and more. Front panel combination LCD/LED display alerts users to a variety of UPS operational modes and conditions. The LCD display includes a real-time event log screen with up to 500 events listed. A dynamic battery management screen optimizes battery function to lengthen service life and allow cold restart of the UPS during a prolonged blackout to utilize its batteries for periodic system access or data retrieval. An Emergency Power Off button turns the UPS output OFF and disables Bypass output. A built-in Emergency Power Off (EPO) dry-contact interface supports remote emergency shutdown in large facilities.

Some of the feature of Tripp Lite's SU60KX/26B are,

• Low THDi (less than 3%) reduces installation costs by allowing 1:1 generator sizing
• Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
• 1+1 configuration: Two SU60KX/26B can be connected in parallel to provide either fail-safe redundancy or increased capacity
• Wide input voltage correction range: 173-300V/276-477V AC
• Precision +/-1% output voltage regulation
• Extremely efficient operation (up to 97%) saves money by reducing electricity consumption
• 60,000VA/48,000W power capacity with 3-phase, hardwire input/output connections
• True on-line, double-conversion UPS with IGBT technology provides pure sine wave AC output at all times
• Maintains continuous operation with zero transfer time through blackouts, voltage fluctuations and surges
• High input power factor, advanced IGBT inverter technology and Digital Signal Processor (DSP) technology produce low input total harmonic distortion (THDi)
