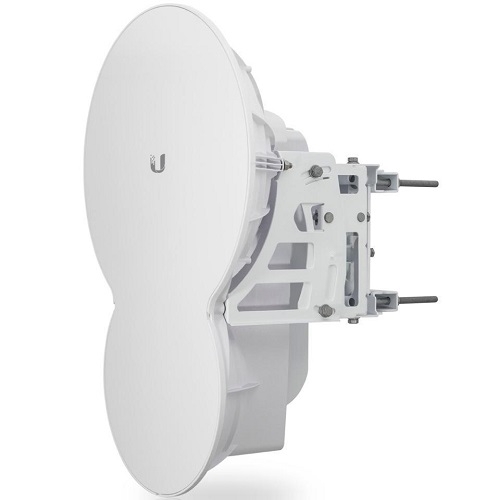

Ubiquiti AF-24 GHz Point-to-Point Gigabit Radio
"Only for Sales outside UAE"
The airFiber®24 is ideal for outdoor, PtP bridging and carrier-class network backhauls.
PRODUCT OVERVIEW
24 GHz Point-to-Point Gigabit Radio
The airFiber®24 is ideal for outdoor, PtP bridging and carrier-class network backhauls.
Revolutionary Performance
Designed to be a high-performance backhaul, the airFiber®24 delivers amazing wireless throughput of up to 1.4+ Gbps, surpassing conventional wired backhauls.
Proven Links: 13+ km
Robust enough to perform in the harshest RF noise environments, the airFiber®24 delivers superior performance with efficiency over real-world, 13+ km links.
Low-Latency Carrier Backhaul
The airFiber®24 supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.
24 GHz Unlicensed Band
The airFiber®24 operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber24 almost anywhere they choose (subject to local country regulations).
Key Features
- Wireless Backhaul
- 24 GHz Radio Band for USA/Domestic Use
- 24.05 - 24.25 GHz Operating Frequency
- Passive PoE (42 - 58 VDC)
| Product Name | Ubiquiti AF-24 GHz Point-to-Point Gigabit Radio |
|---|---|
| Weight | 10.500663 |
| Power Supply (PoE) | 50 VDC at 1.2 A |
| Max. Power Consumption | 50 W |
| Operating Frequency | 24.05 - 24.25 GHz |
| Frequency | 24 GHz |
| Operating Temperature | -40 to 131°F / -40 to 55°C |
| Dimensions | 25.55 x 16.77 x 11.93" / 64.9 x 42.6 x 30.3 cm |
| Manufacturer | Ubiquiti |
| Color | White |
| Country of Origin | United States |
Product Datasheet
