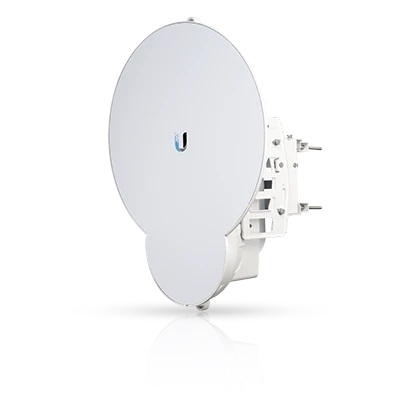

Ubiquiti AF24HD AirFiber 24 GHz Point-to-Point 2 Gbps Radio
TRA Approved (ER55422/17)
Featuring our INVICTUS™ custom silicon for 2+ million packets-per-second processing, the airFiber®24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance.
PRODUCT OVERVIEW
24 GHz Full Duplex Point-to-Point 2 Gbps Radio
Featuring our INVICTUS™ custom silicon for 2+ million packets-per-second processing, the airFiber®24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance.
Revolutionary Performance
Featuring the world’s best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
Proven Links: 20+ km
The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range – up to 20+ km – among 24 GHz products and allows for constellation threshold extension.
Low-Latency Carrier Backhaul
The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
24 GHz Unlicensed Band
The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
| Product Name | Ubiquiti AF24HD AirFiber 24 GHz Point-to-Point 2 Gbps Radio |
|---|---|
| Weight | 17.263726 |
| Operating Channels | 24.1 GHz, 24.2 GHz |
| Operating Frequency | 24.05 – 24.25 GHz |
| Dimensions | 593 x 768 x 370 mm |
| Frequency Accuracy | ±2.5 ppm without GPS Synchronization ±0.2 ppm with GPS Synchronization |
| Maximum Range | 20+ km |
| Channel Bandwidth | 100 MHz |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Power Supply (PoE) | 50V, 1.2A PoE GigE Adapter (Included) |
| Max. Power Consumption | 50 W |
| Manufacturer | Ubiquiti |
| Color | White |
| Country of Origin | United States |
Product Datasheet
