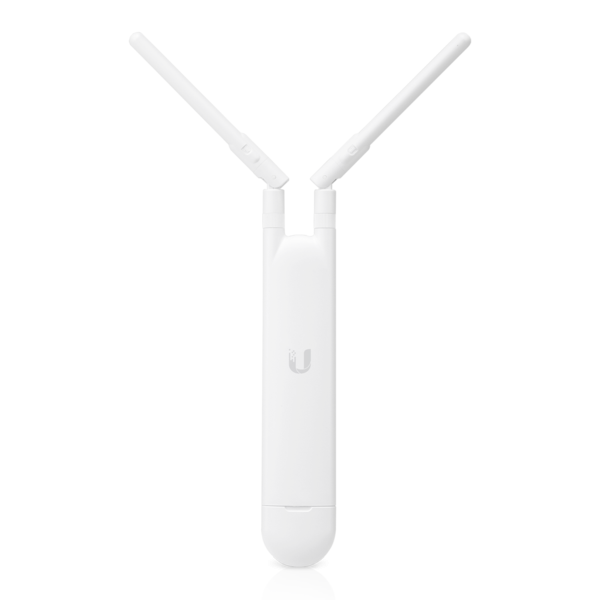

Ubiquiti UAP-AC-M-EU UniFi Mesh Access Point
TRA Approved
High-performance 802.11ac 2x2 MIMO access point for indoor and outdoor installations. Two RP-SMA connectors support external antennas.
PRODUCT OVERVIEW
High-performance 802.11ac 2x2 MIMO access point for indoor and outdoor installations. Two RP-SMA connectors support external antennas.
Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2x2 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.
Antenna Versatility
Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage.
Optimal Performance
Dual-Band performance with aggregate speeds of up to 1167 Mbps.
Compact Form Factor
The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere. Dimensions: 354 x 46 x 34 mm (H x W x D)
Multiple Power Options
Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch, or the included Gigabit PoE adapter.
Mounting Flexibility
The UniFi AC Mesh can be mounted on a pole, wall, or Ubiquiti high-gain antenna.
| Product Name | Ubiquiti UAP-AC-M-EU UniFi Mesh Access Point |
|---|---|
| Weight | 0.453592 |
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Power Supply (PoE) | 24V, 0.5A Gigabit PoE Adapter* |
| Max. Power Consumption | 8.5W |
| Manufacturer | Ubiquiti |
| Color | White |
| Country of Origin | United States |
Product Datasheet
