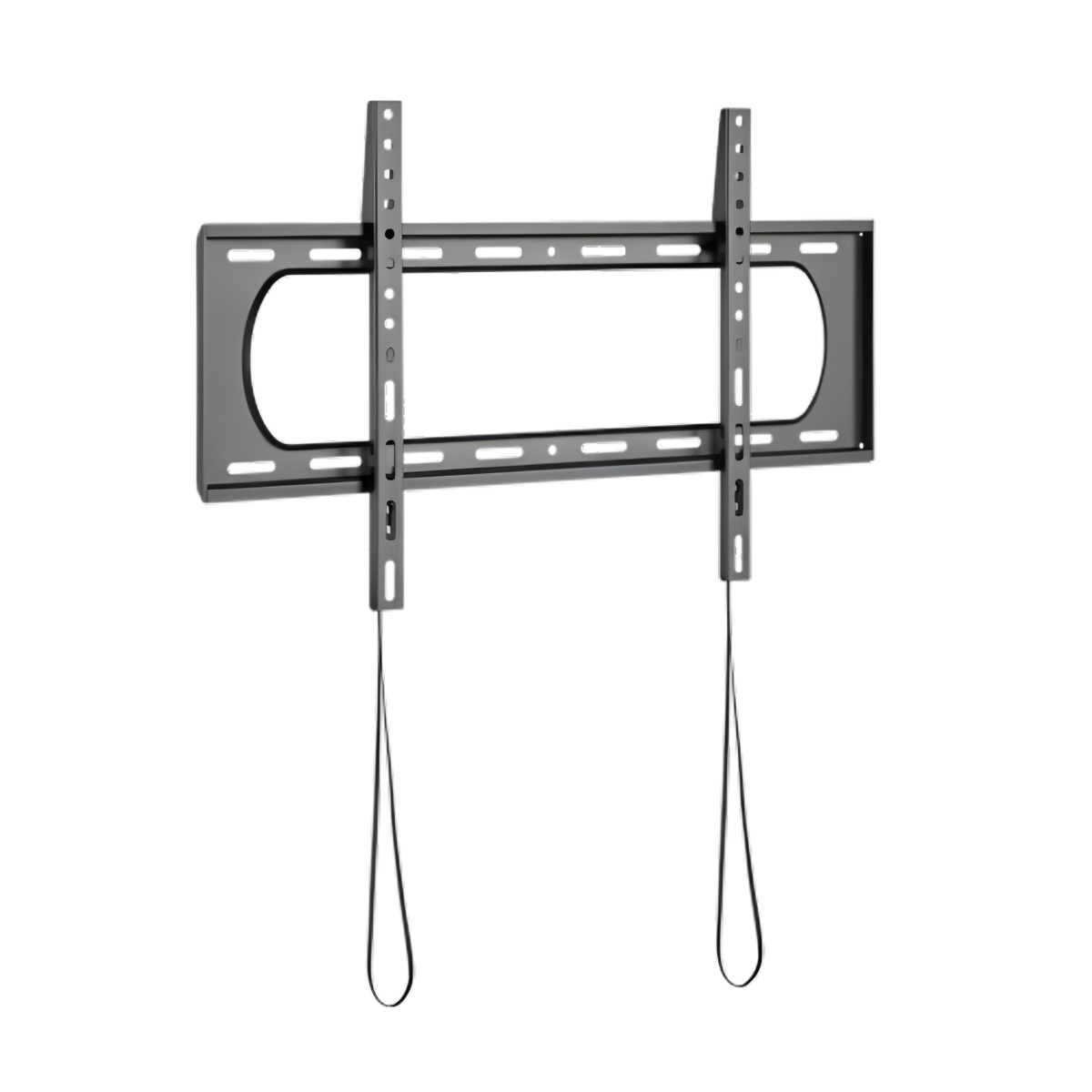

VSYS VS01A-46F Fit Screen Size of 37″ to 80″ Affordable Heavy-Duty TV Wall Mount
Key Feature Of VSYS VS01A-46F Mount
-
➤ Supports 37″–80″ (including curved) displays.
-
➤ High weight capacity: up to 80 kg (176 lbs).
-
➤ Quick-release spring locks for fast, tool-free removal.
-
➤ Ultra-low profile: only 30 mm (1.2″) from the wall.
-
➤ Durable steel construction with 1.8 mm cold-rolled sheet.
PRODUCT OVERVIEW
The Need for Secure and Reliable TV Mounts in Professional Environments
In the fast-evolving world of audiovisual technology, display mounting solutions have become the backbone of professional installations. Whether in corporate boardrooms, retail environments, educational institutions, or entertainment venues, displays must be mounted with precision, stability, and reliability to deliver optimal performance.
Enter the VSYS VS01A-46F Fixed TV Wall Mount UAE a premium mounting solution engineered for medium to large displays (37”–70”). This heavy-duty TV wall bracket from VSYS AV combines superior strength, sleek design, and effortless installation, making it the ideal choice for AV professionals seeking long-lasting and secure display installations.
In this article, we’ll explore how the VS01A-46F redefines professional AV mounting, why fixed mounts remain a popular choice for many installers, and how choosing the right TV wall mount can dramatically enhance viewing experience, safety, and aesthetics.
Key Benefits
-
Ultra-Slim Design: Keeps the display close to the wall for a modern, professional look.
-
Universal Compatibility: Works with most brands and models of flat-panel TVs and displays.
-
Quick Installation: Pre-assembled for efficient setup.
-
Exceptional Strength: Engineered to handle heavy-duty usage in professional environments.
-
Long-Term Reliability: Built for years of performance without the need for maintenance.
| Product Name | VSYS VS01A-46F Fit Screen Size of 37″ to 80″ Affordable Heavy-Duty TV Wall Mount |
|---|---|
| Product Type | Fixed TV Wall Mount |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=1.8mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet (Bracket Arm THK=0.071″ cold-rolled sheet,Wall Plate THK=0.071″ cold-rolled sheet) |
| Surface Finish | Powder Coating |
| Fit Screen Size | 37″-80″ |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50×50,75×75,100×100,100×150, 150×100,100×200,200×100,150×150, 200×200,200×300,300×200, 200×400,400×200,300×300, 300×400,400×300,600×200, 400×400,600×300,600×400 |
| Max. Mounting Hole | 654x402mm |
| Weight Capacity | 80kg (176lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 30mm (1.2″) |
| Installation method | Solid Wall,Double Stud(406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti Theft | No |
| Accessory Kit Package | Normal/Ziplock Polybag,Compartment Polybag |
| Dimensions | 30x685x425mm (1.2″x27″x16.7″) |
| Manufacturer | VSYS |
| Color | Fine Texture Black |
| Country of Origin | China |
