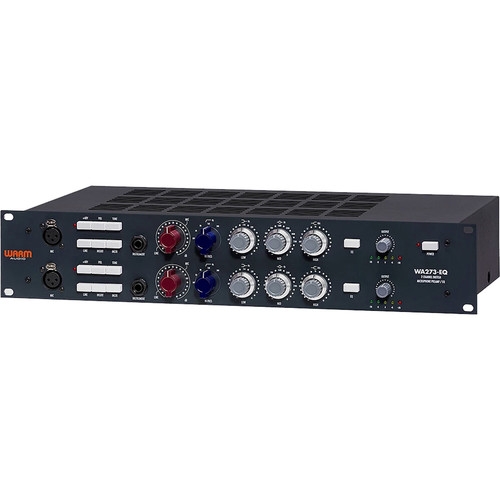

Warm Audio WA273-EQ
The Warm Audio WA273-EQ is a dual-channel, Class-A microphone preamp and equalizer designed to provide up to 80 dB of gain and 3-band EQ for engineers, producers, musicians, and vocalists in mobile-recording rigs and home, project, and commercial studios. It features custom Carnhill transformers and is wired and assembled by hand to deliver the sound and functionality of classic British '73-style preamps.
Its inputs include balanced XLR and 1/4" TRS jacks and two front-panel 1/4" TS instrument inputs. Input impedance, polarity, ground lift, and phantom power are switchable. Connect an outboard compressor or equalizer via the 1/4" TS insert send and return jacks. Balanced XLR and 1/4" outputs are fed by output level controls and allow compatibility with most audio interfaces and mixing consoles. The selectable high-pass filter can be set to 50 Hz, 80 Hz, 160 Hz, or 300 Hz for management of unruly bass frequencies.
The inductor-based EQ boasts selectable frequencies and Blore Edwards dual-concentric potentiometers. The WA273-EQ is rack-mountable and occupies 2 RU.Key Features
- Mic, Line, and Instrument Inputs
- Insert Sends and Returns
- Balanced XLR and 1/4" Outputs
- Up to 80 dB of Gain
