Delta X builds on the global success of the Wharfedale Pro Delta series.

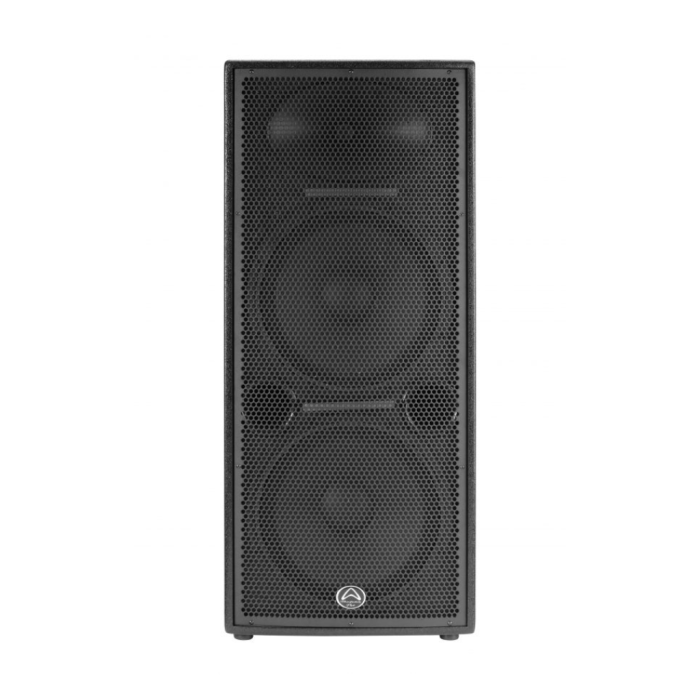

Constructed from 15 mm plywood and covered in the highest quality Rhino Rock paint, the new Delta X215 is instantly recognizable by the engraved iconic Wharfedale Pro ‘boomerang’ logo on its cabinet. The fresh cosmetic design, however, is not the only improvement the engineering team has made.
Internally, Delta X215 also has a 15MM RUSSIAN BIRCH PLYWOOD CONSTRUCTION. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long-term performance and reliability—even at the highest of volumes.
With rear panel switching, Delta X215 can operate in either Bi-Amp or Passive mode. This routing flexibility allows for Delta X systems to be refined using multiple amplifiers and external crossovers.
Custom Wharfedale Pro transducers have also been selected. High-output, low-physical-distortion cast-frame woofers deliver unparalleled low-frequency response. Except the Delta X10, 2” titanium compression drivers are coupled to 90°x45° elliptical waveguides for impressive output level and smooth HF dispersion.
NEW CROSSOVER DESIGN
Delta X10 is made of premium Russian birch plywood. It is even more dense than MDF and creates an extremely strong and durable cabinet. Although not recommended, birch plywood is more tolerant in damp conditions. During construction, it is harder to cut but holds screws better than particleboard or MDF. This makes it ideal for flagship professional audio loudspeakers, which are to be used in extreme and critical environments.
NEW CROSSOVER DESIGN
Internally, Delta X models have a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long-term performance and reliability—even at the highest of volumes.
SOLID AS A ROCK
As with all Wharfedale Pro PA systems, years of expertise are behind a loudspeaker built to last, thanks to our high standards of quality control. The Delta X series is coated in the highest quality Rhino Rock paint finish—a chip-resistant texture with a professional, discrete aesthetic—whilst being prepared for the rigors of life on the road.
BI-AMP AND PASSIVE MODES
In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies, and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker. In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker, and the loudspeaker’s internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.
Features:
2 x 15" drivers with 3" voice coils
2" voice coil HF compression driver137 dB
B Max SPL
Birch plywood construction
Premium Rhino Rock paint
Bi-amp and Passive modes
4Ω impedance1000 W
w continuous2000 W
W programme 4000 W
w peak
2 carry handles
2 sturdy caster Hi-Fi wheels
More Information
Product Name
Wharfedale Pro Delta X215 2x15" 1000W Passive Speaker
