PRODUCT OVERVIEW

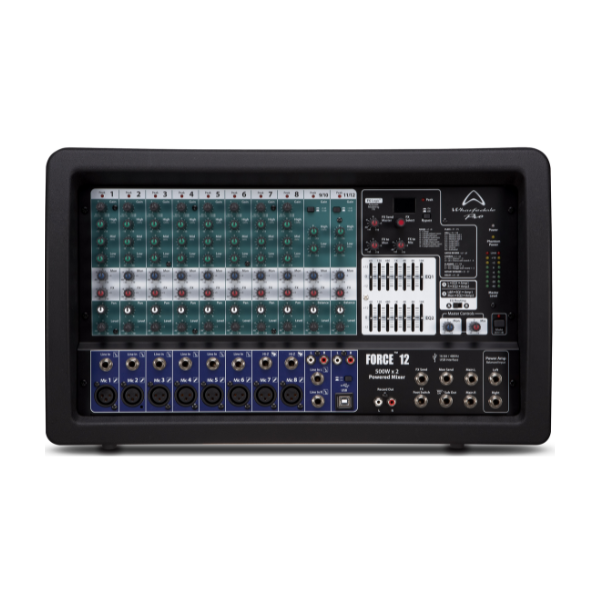

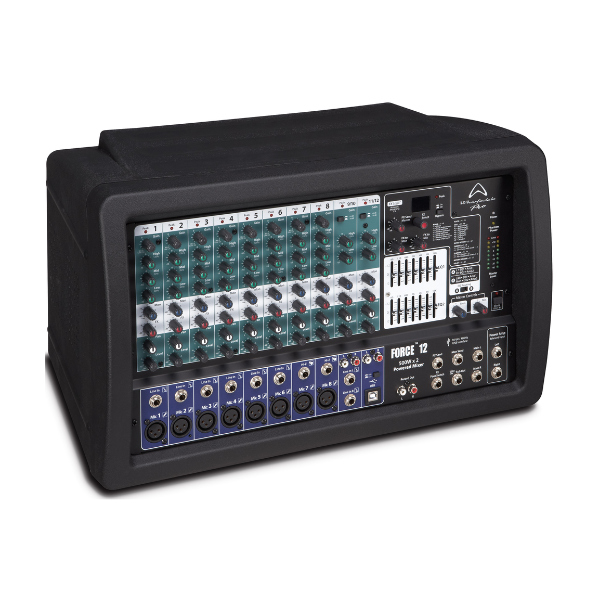

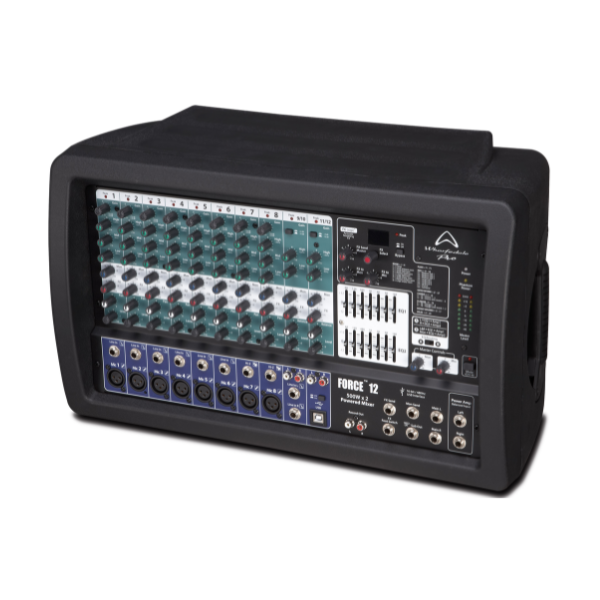

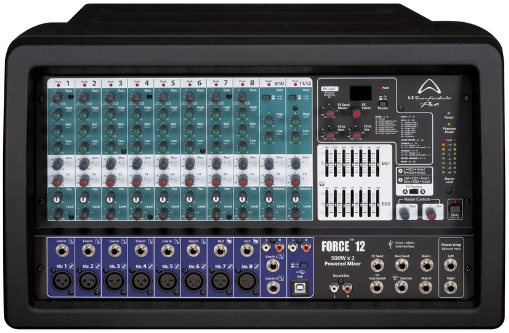

Force 12

Designed to be a perfect balance of portability and power the FORCE 12 is suitable for use in a wide range of portable sound applications. Everything you need to mix and amplify microphones and line level sources is included in one box, with an ergonomic carry handle to aid transportation. The Force 12 features built-in digital FX processing, removing the need for additional expensive and often cumbersome processors. The included graphic EQ can be used to tame feedback issues and allows fine tuning of the overall mix. A mode switch allows the onboard amplification to be used to power either stereo front of house loudspeakers or a mono front of house and mono foldback monitor system. Class compliant USB connectivity is included for quick and simple connection to a laptop computer for playback or recording.

More power, less weight.

The Force Series from Wharfedale Pro are lightweight, compact and portable powered mixers. Designed to be a perfect balance of portability and power the Force Series are suitable for use in a wide range of portable sound applications. Everything you need to mix and amplify microphones and line level sources is included in one box, with an ergonomic carry handle to aid transportation. The one box concept speeds up your setup time and allows you to start your performance quicker than ever before.

Creative FX

Force Series built in digital FX processing, expanding your creativity and improving your sound quality without the need for additional expensive and often cumbersome processors. It also features a dual 7 band master EQ, a simple and effective way of balancing the overall sound in one easy control.

Versatile Inputs

Phantom powered XLR microphone inputs allow you to connect any type of microphone, including both condensers and dynamic mics. Line level inputs are available with both ¼” jacks and RCA connectors, perfect for backing track sources or keyboards.

Record Via PC or Mac

A built in USB audio interface enables a CD-quality recording of your live performance. The USB audio interface also can send a stereo feed from your PC or Mac into a channel also for backing track playback.

Key Features

• 4 Ohms: 550W RMS x 2
• 8 Ohms: 290W RMS x 2
• Lightweight Class-D Amplifier Modules
• Lightweight, High-Efficiency Switch-Mode Power Supplies
• Phantom Powered Balanced XLR Mic Inputs
• RCA / USB input on one stereo channel
• +48v Phantom Power
• ¼” Jack and RCA Line Level Inputs
• Peak Indicator for Each Channel
• Speakon Outputs
• 2-Band EQ on Every Channel
• Built-in Digital FX
• Clip LED display
• Dual 7-Band Graphic EQ on Master Section
• 4 Segment LED Metering
• 56 stereo FX ith LED display
• Low level outputs (main, mon send, fx send, sub)
• Thermal protec, overcurrent protect and output short protect
