PRODUCT OVERVIEW

M16

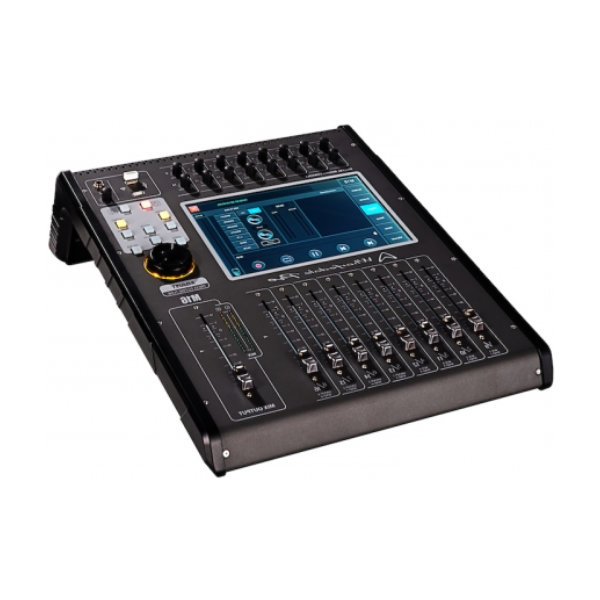

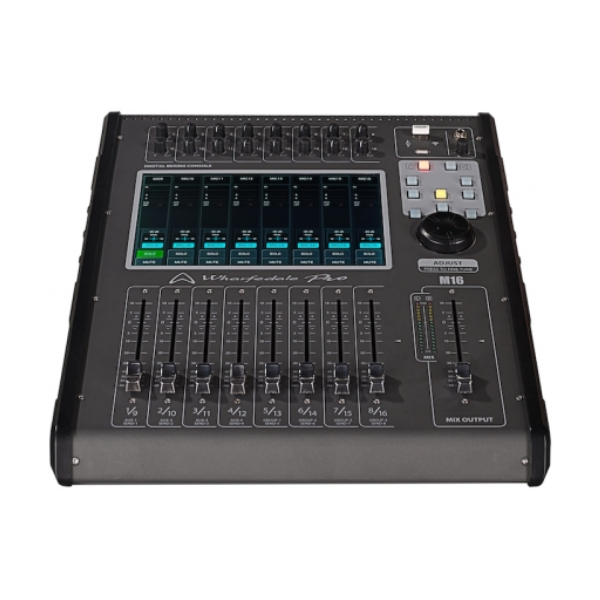

M16 is a unique and innovative multi-function digital mixing console, with many advantages such as its small size, lightweight construction, high quality audio path, user friendly interface and a ‘class leading’ premium touch sensitive 10.1” screen.

Using the 4th generation industrial floating-point SHARC processor and 24bit / 192kHz AD/DA conversion, M16 delivers high quality audio with a responsive feel.

The custom layer, channel link and mute group modes make it ideal for live performances, conferences, schools, churches, cultural auditoriums, weddings, concerts, homes, bands, multi-purpose halls and other sound reinforcement systems.

The system also includes WiFi interfacing allowing the mixer to be controlled remotely with mobile devices.  A rear panel expansion bay also allows for optional interface boards to be inserted.  Currently these include Dante, AES/EBU and USB protocols.

The 9 x 100mm motorised faders make control simple and custom layers can be created to make M16 easy to use for the most inexperienced operator.

10.1" touch sensitive screen

• The internal screen of M16 is huge.
• The 1280 x 800 resolution makes navigation of the features inside M16 easy.
• The internal software is fast - making the experience responsive and intuitive.
• Every feature, every setting and everything you need to control is all there under your fingers.

iPAD control

M16 is supported by a free app for iPAD.

This app gives comprehensive wireless control of the M16 along with input/output metering. It is invaluable when using the M16. However, because the app can be used in 'Offline mode', it is a perfect tool for making setups without being connected to an M16.

Optional expansion cards

Around the back of the M16 is the expansion card slot.

Choose between USB, DANTE and AES/EBU protocols.

The optional cards give 2 in / 2 out digital interfacing and allow the M16 to be connected to a wide variety of external protocols and devices.

Optional flight case

M16 is versatile and lightweight.

Protect it during transportation with the optional flight case.

With protective internal foam padding and durable aluminium construction, the M16 flight case is perfect for life on the road.

Around the back

• All connections are made on the rear panel.
• 16 x mic/line inputs
• 8 x assignable buss outputs
• 1 x optional expansion card slot
• 1 x RS-232/485 connector
