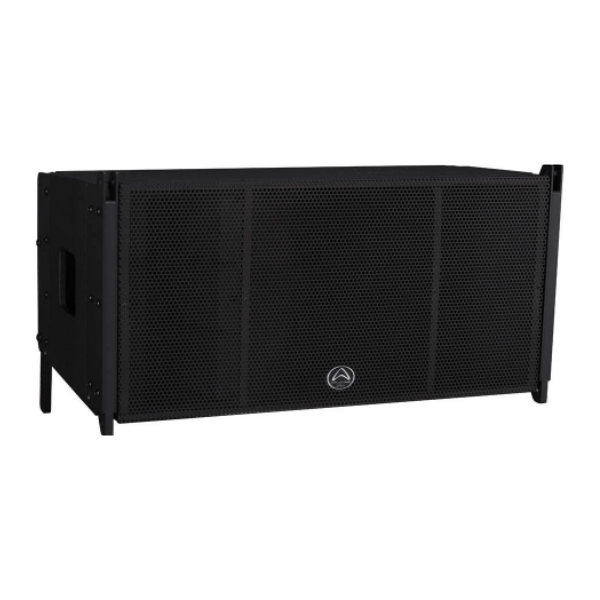

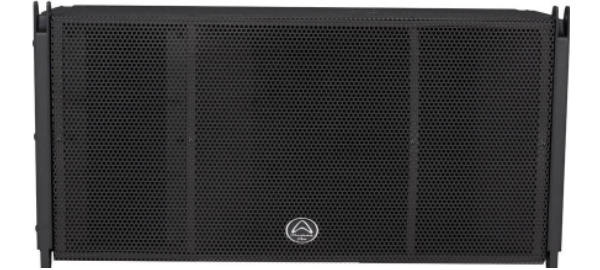

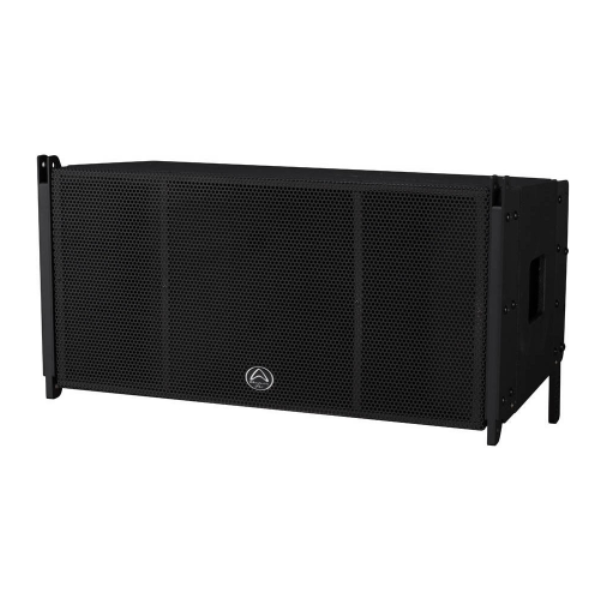

Wharfedale Pro WLA-12 1x12" 400W Line Array Passive Speaker
The Wharfedale Pro WLA-12 is a mid-format line array system with exceptional output, frequency response, directivity and throw capability. High tech transducers and enclosure design techniques give the WLA-12 a perfect power to size ratio.
PRODUCT OVERVIEW
WLA-12
The Wharfedale Pro WLA-12 is a mid-format line array system with exceptional output, frequency response, directivity and throw capability. High tech transducers and enclosure design techniques give the WLA-12 a perfect power to size ratio.
Huge Sound Pressure Level
The WLA-12 achieves ultra-high sensitivity with its fully horn-loaded architecture. A horn-loaded 12” LF is combined with three horn-loaded titanium compression drivers for the HF, generating high SPL with maximum efficiency (134dB Max). The ultra-high sensitivity of the WLA Series creates punishing levels from even the most modest of power amplifiers ensuring that your system can generate a huge SPL.
Ready for rigging
A versatile captive, hidden rigging system allows for fast setup, with the widest range of splay angles, while keeping the toughened steel brackets hidden within the chassis. Inter element splay angles from 0° to 12.5° a guarantee that a WLA-12 system can meet the needs of your venue.
Rhino Rock-Solid
Rhino Rock, our proprietary ultra-touch textured composite finish is used to ensure that the WLA-12 can withstand life on the road, even in the most demanding touring applications.
Versatile Speaker Management Options
Physically aligned transducers and an internal passive crossover network deliver natural intelligibility, clarity and precision without the need for expensive speaker management. A rear panel bypass setting allows you to use an external active crossover network or speaker management system to fine tune the system.
Key Features
- 400W RMS / 800W Program / 1600W Peak
- 134dB Max SPL
- 47Hz - 18 kHz Frequency response
- High Sensitivity, Full Horn Loaded Design
- 3x 1” Exit HF Compression Drivers
- Constant directivity waveguides
- Rare Earth Magnets
- Physically Aligned Transducers
- 2 x parallel speakon inputs
- Extremley durable Rhino Rock finished cabinets
- Internal Passive Crossover Network
- External Crossover Bypass Switching
- Front Hinged Rigging System
- Comprehensive adjustable splay angles
- Captive Rigging Hardware with Tethered Quick Release Pins
- Tethered Quick Release Pins (Each Rated To 2000Kg)
- Comprehensive Adjustable Splay Angles
| Product Name | Wharfedale Pro WLA-12 1x12" 400W Line Array Passive Speaker |
|---|---|
| Weight | 72.85 Kg |
| Frequency Response | 47Hz - 18kHz |
| Frequency Range | 45Hz - 150Hz |
| Power Capacity | 400W / 800W / 1600W |
| Maximum SPL | 134dB Max SPL |
| Impedance | 8Ω |
| Dimensions | 1025mm x 585/530mm x 580mm |
| Manufacturer | Wharfedale |
| Color | Black |
| Country of Origin | United States |
