Wharfedale Pro XO-206 12W 3 Way Crossover

PRODUCT OVERVIEW

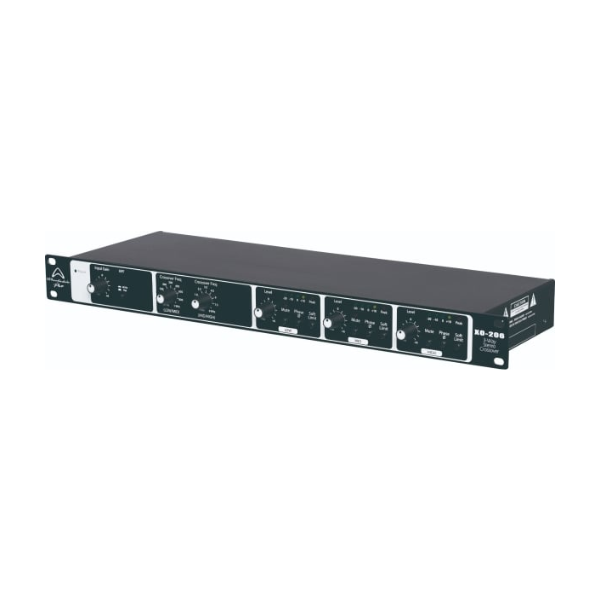

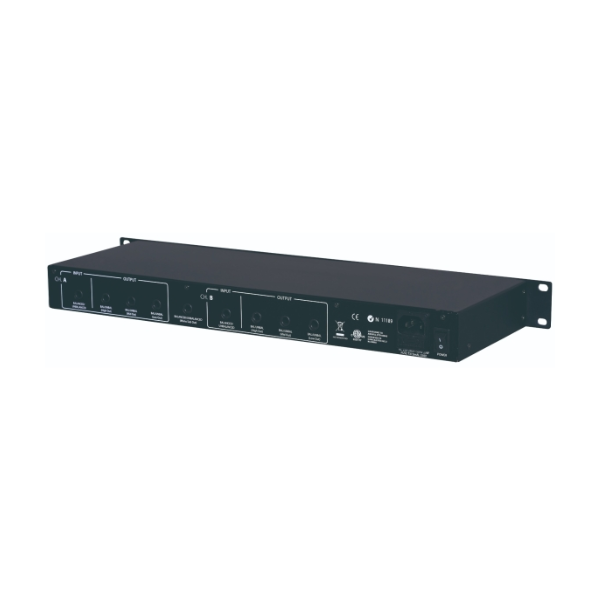

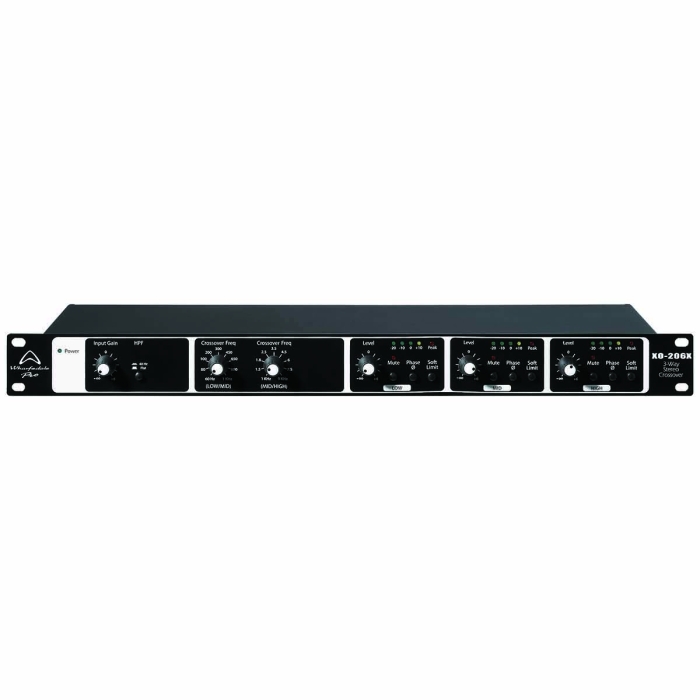

Wharfedale Pro XO-206

The Wharfedale Pro XO-206 is a professional 3-way stereo crossover designed for tri-amplified sound reinforcement systems. With a simplified and intuitive interface, it allows for fast and safe setup while protecting your valuable audio equipment. Available in standard 6.3 mm balanced jack connections or XLR inputs/outputs in the 'X' model.

Maximum Protection & Reliability The XO-206 crossover is engineered to maximize headroom and protect your speakers. Built-in high-pass filters, soft limiters, and polarity controls prevent over-excursion, maintaining optimal sound quality.

Intuitive Control

Front-panel controls, LED meters, and flexible input and output options make setup and monitoring effortless. Adjust output levels, mute channels, and configure crossovers quickly for any live or studio application.

Simplistic, Accurate Control

XO series crossovers feature 24 dBoct LinkwitzReilly filters. The crossover frequency for both channels can be controlled from one potentiometer for more accurate control and improved stereo imaging.

Key Features

• 3-way stereo crossover for professional audio systems

• 2 inputs × 6 outputs (6.3 mm jack or balanced XLR on 'X' model)

• One-control setup for both channels for simplified operation

• Precision 24 dBoct Linkwitz-Riley filters for clear, balanced sound

• Switchable 40 Hz high-pass filter (HPF) to protect low-frequency drivers

• Polarity switch to reduce phase issues

• Soft limiter on all channels for safe output levels

• LF/HF mute switches and output level controls for precise tonal balance.

• Mono LF output switch for subwoofer integration

• Ground lift switch to prevent hum and interference

• 1U 19" rackmount chassis with LED meters and clip indicators

Why Choose Wharfedale Pro XO-206?

• Delivers clear, precise audio separation for tri-amped systems

• Ensures long-term reliability with high-quality components

• Simplifies system setup without sacrificing professional features

Upgrade your audio setup with the Wharfedale Pro XO-206 – reliable, precise, and easy-to-use.Hi-Fi
