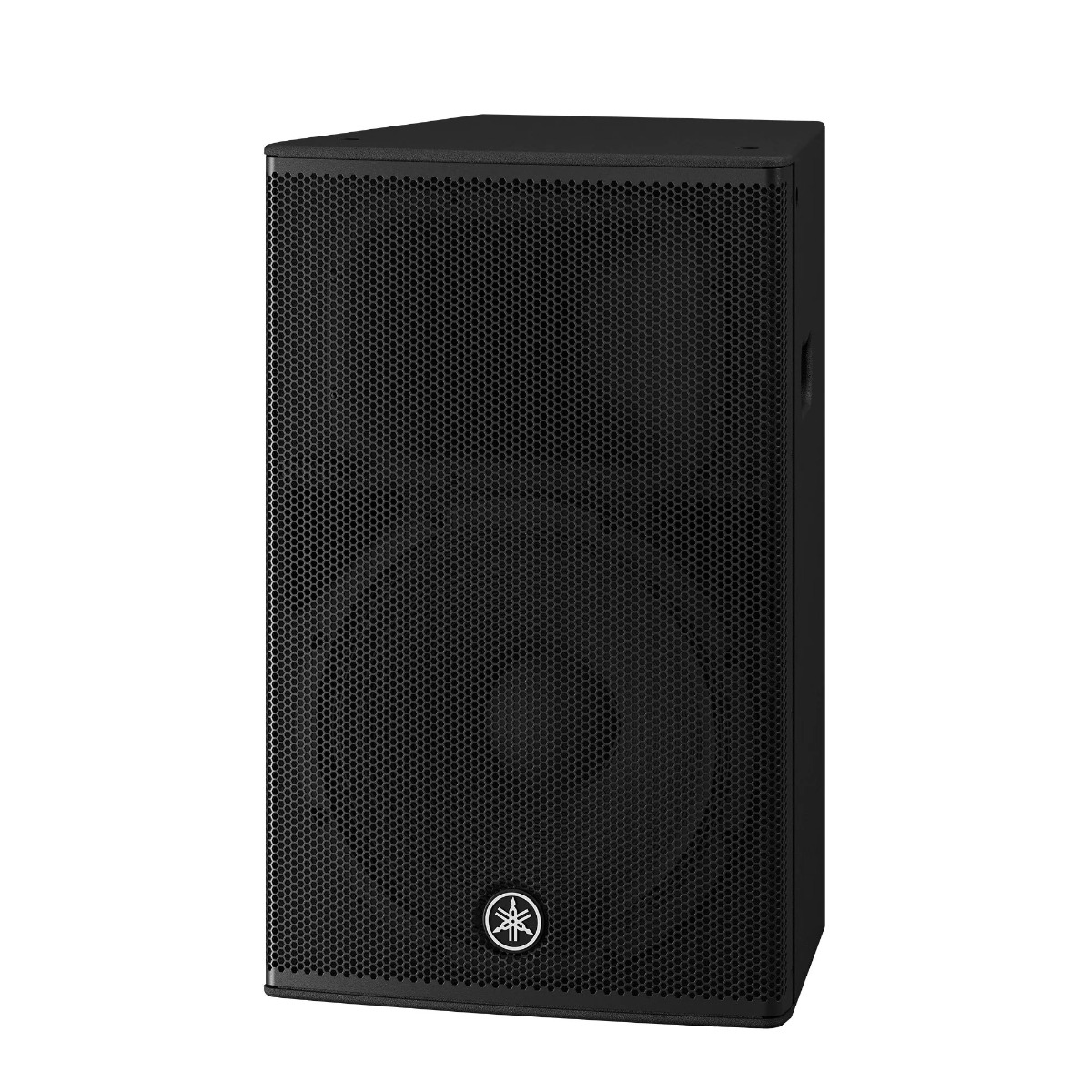

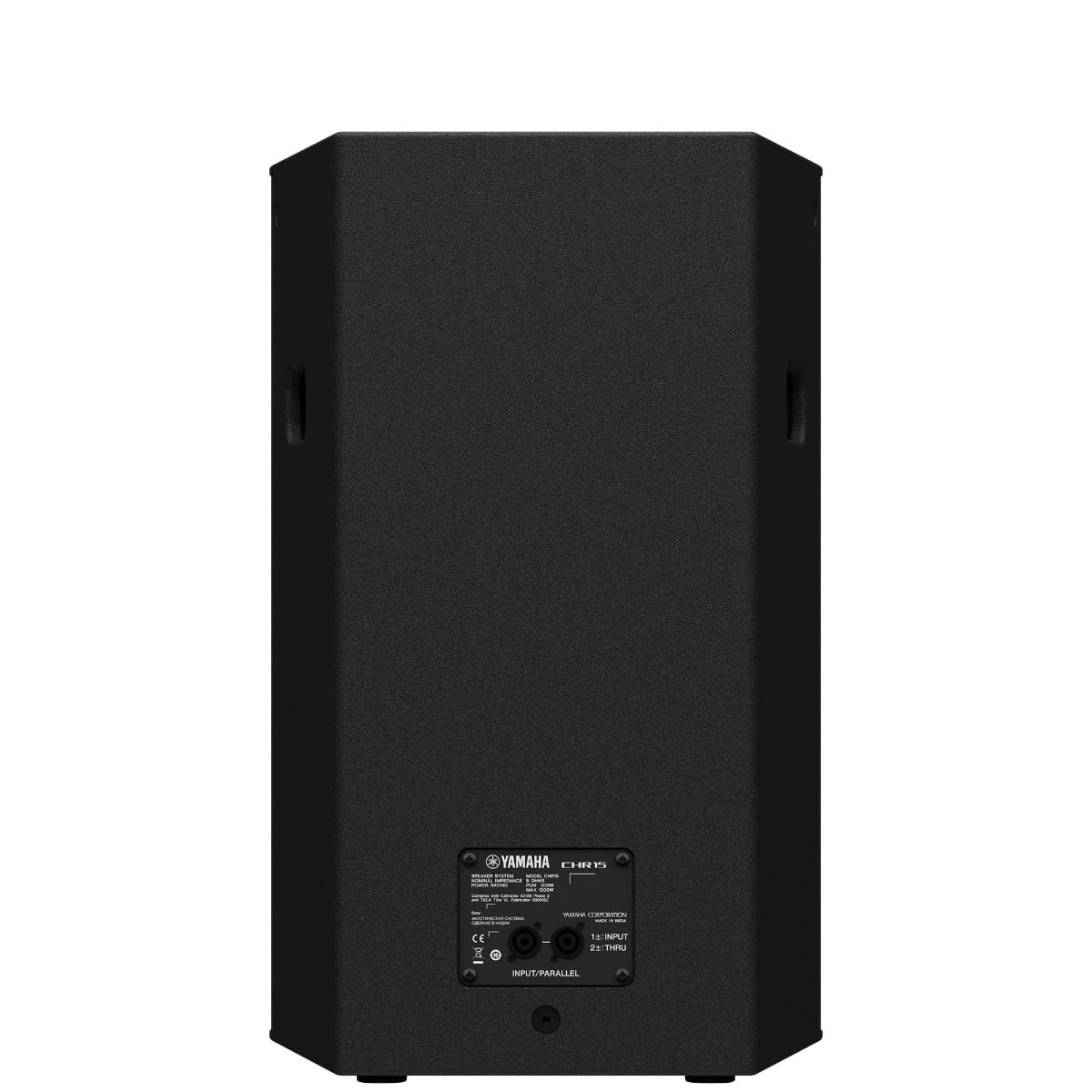

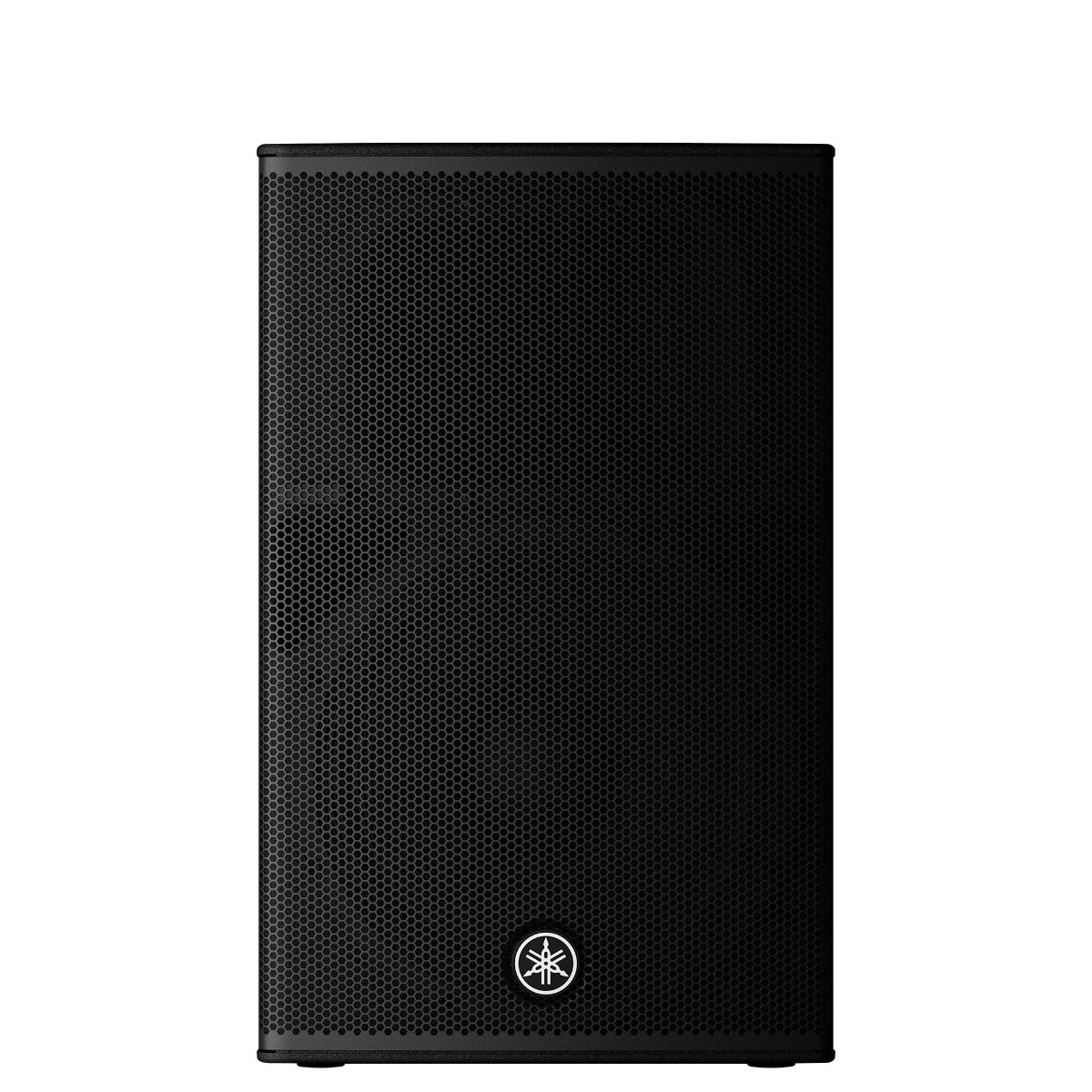

Yamaha CHR15 15-Inch 2-Way Passive 1000W Peak Full-Range Bass Reflex Loudspeaker
Key Features:
-

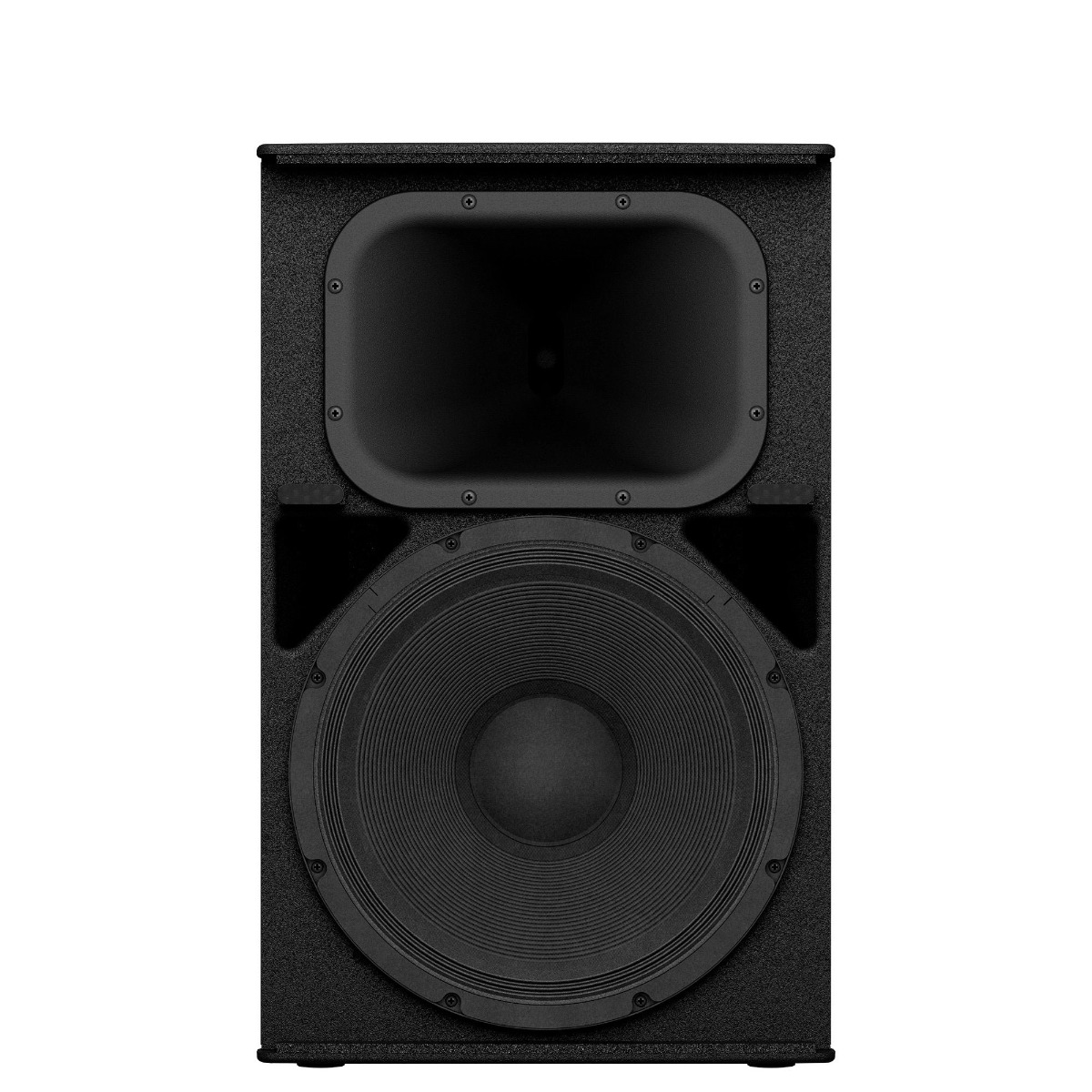

15-inch woofer and 1.4-inch compression driver deliver powerful, clear, full-range sound with deep bass response.
-
Premium plywood cabinet minimizes vibration for enhanced audio clarity and natural sound reproduction.
-
Durable polyurea-coated enclosure provides superior resistance to scratches and demanding touring environments.
-
Dual-angle pole mount (0°/-7°) optimizes sound coverage for different venue and installation requirements.
-
Rigging points and Yamaha DSP compatibility enable flexible installation and optimized system performance.
PRODUCT OVERVIEW
High-Power 15-Inch Two-Way Loudspeaker
The Yamaha CHR15 Loudspeaker is a high-performance passive speaker designed to deliver powerful and accurate sound reinforcement for live performances, installations, and professional audio applications. Its 15-inch low-frequency driver and precision high-frequency compression driver provide exceptional clarity with deep bass and balanced mids. The rugged design ensures reliable operation in demanding environments.
Clear and Balanced Audio Performance
Engineered with Yamaha's advanced acoustic technology, the CHR15 delivers smooth frequency response and impressive vocal intelligibility across a wide listening area. The carefully optimized cabinet and horn design minimize distortion while producing consistent, natural sound. It is an excellent choice for speech, music playback, and live sound reinforcement.
Durable Cabinet for Professional Use
The enclosure is constructed from premium plywood, offering excellent durability and enhanced acoustic performance. A tough polyurea coating protects the cabinet from scratches, impacts, and everyday wear, making it suitable for touring, rental companies, event venues, and fixed installations. Its robust build ensures long-lasting reliability in demanding professional environments.
Flexible Installation and Mounting Options
The Yamaha CHR15 supports multiple deployment configurations, allowing it to be used as a front-of-house speaker or installed permanently in commercial and entertainment venues. Integrated mounting points and a practical cabinet design simplify installation while ensuring secure placement. Its versatility makes it ideal for auditoriums, houses of worship, conference halls, and performance spaces.
Ideal for Live Sound and Fixed Installations
Whether used for concerts, educational institutions, corporate events, or hospitality venues, the Yamaha CHR15 delivers dependable performance with excellent sound coverage. Its combination of high output capability, durable construction, and precise audio reproduction makes it a trusted solution for professional audio systems that demand consistent quality and reliability.
| Product Name | Yamaha CHR15 15-Inch 2-Way Passive 1000W Peak Full-Range Bass Reflex Loudspeaker |
|---|---|
| Weight | 22.500000 |
| Dimensions | 432 mm x 692 mm x 405 mm (17.0" x 27.2" x 15.9") |
| Frequency Range (-10 dB) | 49 Hz - 20 kHz |
| Maximum SPL @ 1 m | 125 dB at 1 meter |
| Nominal Impedance | 8Ω |
| Manufacturer | Yamaha |
| Color | Black |
| Country of Origin | United Arab Emirates |
Product Datasheet
