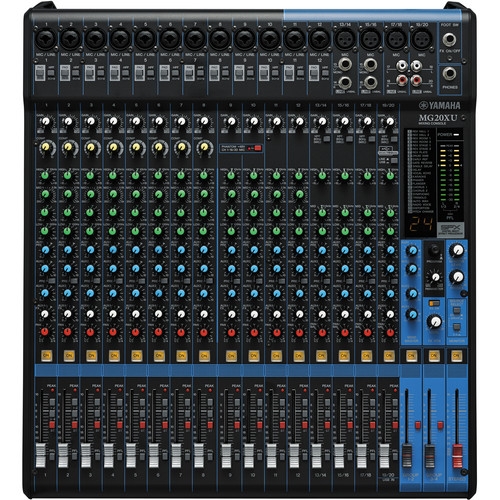

Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface
PRODUCT OVERVIEW
The Yamaha MG20XU is a compact mixer capable of 20 simultaneous inputs and is ideal for live performances, recordings, lectures, and more. The mixer features 12 mono mic/line combo input channels, and 4 stereo line input channels that can also be used as mono mic or line inputs. It also features USB connectivity and is capable of providing 2 channels in and 2 channels out to your computer at up to 24-bit / 192 kHz, ideal for recording live performances, demos, and more.
Channels 1-20 are each equipped with D-PRE mic preamps, 3-band EQ, pan control, and a high-pass filter, and channels 1-12 feature a sweepable midrange control. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26 dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix.
The MG20XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers, or devices such as digital recorders.
Each of the MG20XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix. The MG20XU ships with a rackmount kit and a power cord.
Key Features
- 16 Mic / 20 Line Inputs
- 12 Mono + 4 Stereo Inputs
- D-PRE Mic Preamps
- 4 Group Buses + 1 Stereo Bus
- 4 Aux Including FX
- High-Quality SPX Effects, 24 Programs
- 1-Knob Compressors
- 24-Bit / 192 kHz USB Audio Interface
- Rackmount Kit Included
- Includes Power Cord
| Product Name | Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface |
|---|---|
| Weight | 0.90 Kg |
| Frequency Response | +0.5 dB / -1.5 dB (20 Hz to 48 kHz), Refer to the Nominal Output Level at 1 kHz, GAIN Knob: Min |
| Max. Power Consumption | 36 W |
| Dimensions | 17.5 x 5.1 x 19.7" / 444 x 130 x 500 mm |
| Manufacturer | Yamaha |
| Color | Black |
| Country of Origin | United Arab Emirates |
