Yamaha Rio1608-D3 16 Input 8 Output Digital Audio I/O Rack Dante Compatible Stage Box
Key Features:
-
16 high-quality analog inputs and 8 analog outputs for flexible stage connectivity
-
Dante network audio interface with up to 16 transmit and 10 receive channels for digital routing
-
Dual redundant power supplies for maximum reliability in live and fixed installations
-

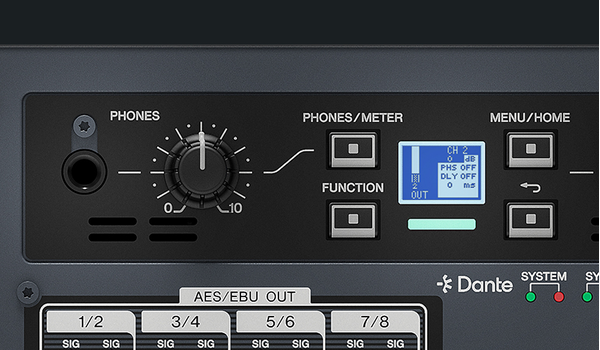

Built-in front-panel display with local control of gain, delay, and key audio parameters
-
Integrated headphone output plus enhanced output processing including delay, phase, and level control
PRODUCT OVERVIEW

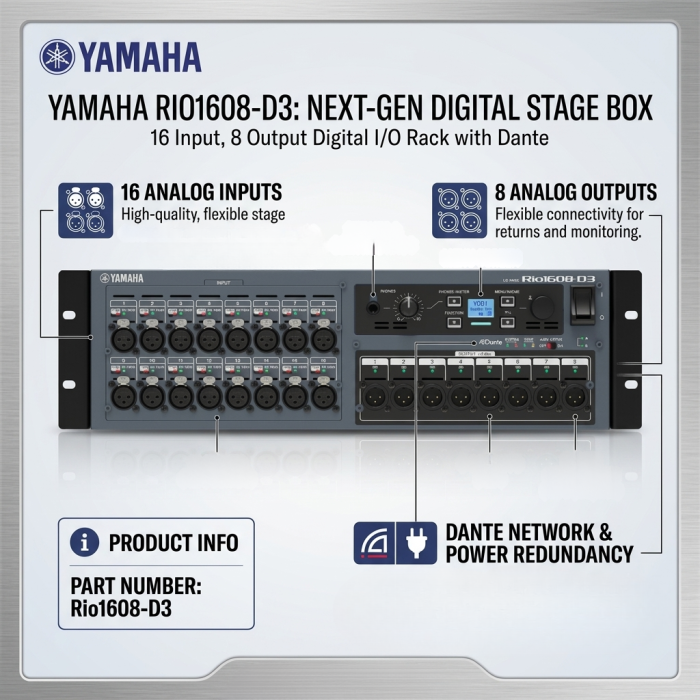

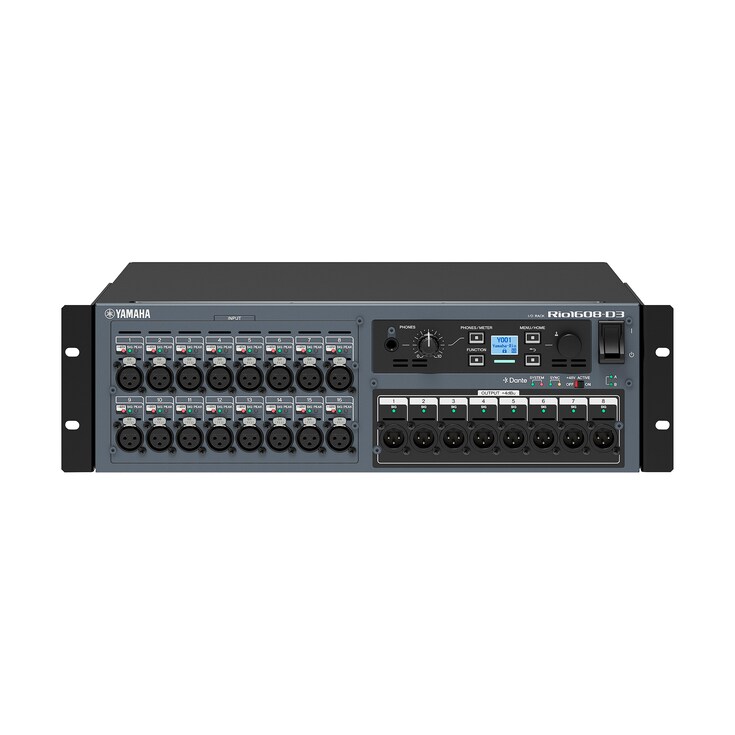

Yamaha Rio1608-D3
The Yamaha Rio1608-D3 is a professional 16-input and 8-output Dante-enabled stage box designed for high-end live sound and installed audio systems. It is part of Yamaha’s third-generation R Series, built to deliver improved audio clarity, lower noise, and higher dynamic range. This unit is widely used in touring, broadcast, and fixed installations where reliability and networked audio distribution are critical. It integrates seamlessly with Yamaha CL, QL, DM7, and RIVAGE PM consoles.
High-Quality Preamps and Audio Performance
This stage box features 16 premium microphone preamps with switchable 48V phantom power, ensuring compatibility with a wide range of microphones. The 32-bit AD/DA conversion architecture provides exceptionally clean signal reproduction with ultra-low distortion. It is engineered to maintain transparency so that the console processing remains the primary tonal shaping stage. The result is a natural, accurate sound capture suitable for professional mixing environments.
Dante Network Integration

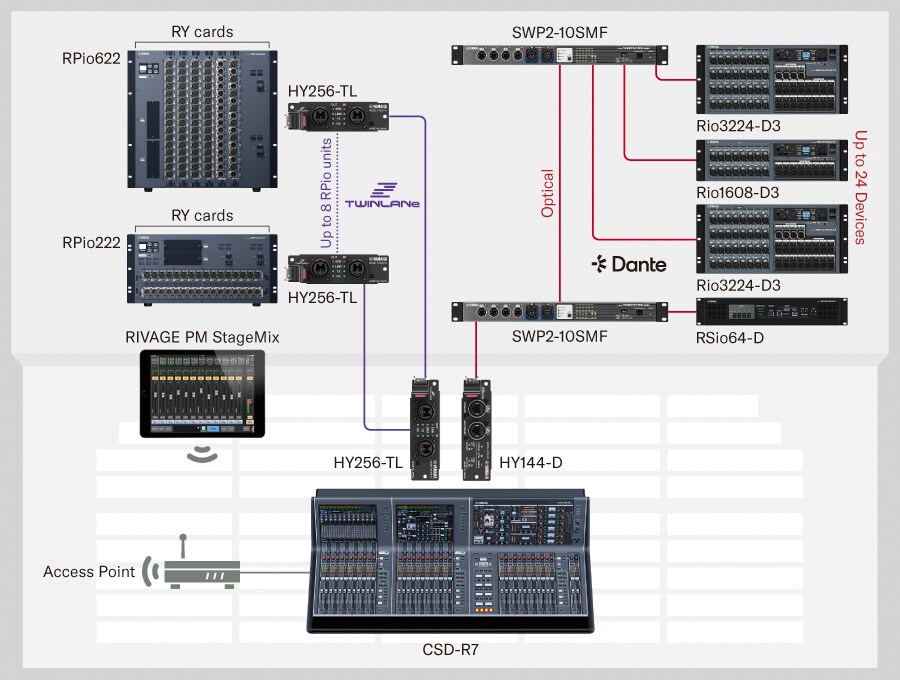

The Rio1608-D3 operates on the Dante audio-over-IP protocol, allowing flexible routing and digital audio distribution over standard Ethernet networks. It supports redundant Dante connections, ensuring uninterrupted audio flow even in case of network failure. This makes it highly dependable for critical live productions. Engineers can also control gain, routing, and phantom power remotely through Dante Controller or compatible Yamaha systems.
Reliability and System Design
Built with dual redundant power supplies, the unit is designed to maintain operation even if one power source fails. It also supports daisy-chaining and advanced network configurations for complex audio systems. The inclusion of local control options and a clear front-panel display improves usability in fast-paced stage environments. Its rugged construction makes it suitable for demanding touring and permanent installations.
Professional Use Cases and Value
The Rio1608-D3 is commonly deployed in concert venues, broadcast trucks, theaters, and large-scale events where multi-channel audio distribution is required. Its tight integration with Yamaha digital consoles makes it a core component in many professional audio ecosystems. While it represents a premium investment, it is valued for its stability, sound fidelity, and long-term reliability in mission-critical applications.
| Product Name | Yamaha Rio1608-D3 16 Input 8 Output Digital Audio I/O Rack Dante Compatible Stage Box |
|---|---|
| Weight | 9.200000 |
| Frequency Response | Fs = 96 kHz or Fs = 48 kHz @ 20 Hz-20 kHz, reference to the nominal output level @ 1 kHz |
| Dimensions | (W x H x D): 480 x 132 x 370 mm (18.9” x 5.2” x 14.6”) |
| Power Consumption | 60 W |
| Manufacturer | Yamaha |
| Color | Black |
| Country of Origin | United Arab Emirates |
Product Datasheet
