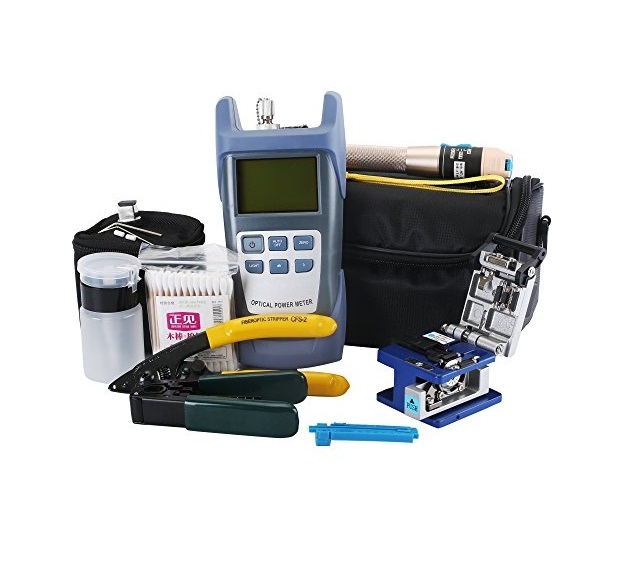

Zoostliss FTTH Fiber Optic Tool Kit ( With Medidor Fibra Optica, Visual Fault Locator & FC-6S Fiber Cleaver)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Buy Zoostliss FTTH Fiber Optic Tool Kit With Medidor Fibra Optica, Visual Fault Locator & FC-6S Fiber Cleaver at Best Prices!
Zoostliss FTTH Fiber Optic Tool Kit
Portable optical power meter is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fiber network. It is a compact device with backlight switch and auto power on-off ability. Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition, it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same time.
Brief Specifications:
- Wavelength(nm): 800~1700nm
- Detector: InGaAs
- Measurement Range (dBm): -70~+10
- Uncertainty: ±0.2(5%)
- Calibrated Wavelength(nm): 850,980,1300,1310,1490,1550
- Resolution(dB): Linear indication: 0.1% Loharithmic indication: 0.01dBm
- Optical Connector: FC/ Universal 2.5mm adaptor
- Operating Temperature: -10 ~ +60C
- Storage Temperature: -25 ~ +70C
- Relative Humidity: 0 to 95% (non-condensing)
| Product Name | Zoostliss FTTH Fiber Optic Tool Kit ( With Medidor Fibra Optica, Visual Fault Locator & FC-6S Fiber Cleaver) |
|---|---|
| Weight | 0.599998 |
| Wavelength (nm) | 800~1700nm |
| Calibrated Wavelength (nm) | 850,980,1300,1310,1490,1550 |
| Measurement Range (dBm) | -70~+10 |
| Detector | InGaAs |
| Storage Temperature | -25 ~ +70C |
| Optical Connector | FC/ Universal 2.5mm adaptor |
| Uncertainty | ±0.2(5%) |
| Relative Humidity | 0 to 95% (non-condensing) |
| Dimensions | 190 × 100 × 48 mm |
| Manufacturer | Zoostliss |
| Color | N/A |
| Country of Origin | United Arab Emirates |
