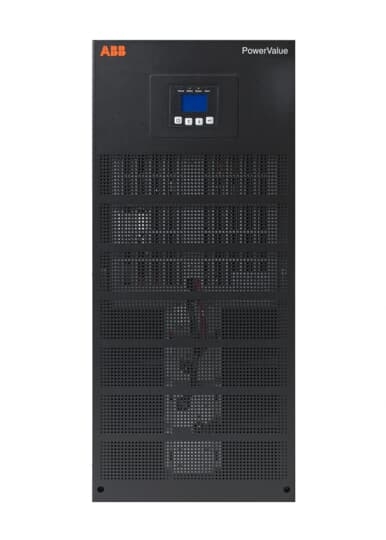

ABB 20 kVA PowerValue 11/31 T B UPS Reliable Backup Solution
ABB’s new compact PowerValue 11/31 T UPS 20 kVA B slots perfectly into this market segment. It incorporates all the features necessary to deliver reliable power, low running costs, long battery life, easy maintenance, and full flexibility for the user.
PRODUCT OVERVIEW
An efficient uninterruptible power supply with scalable runtime
For the owners or operators of security systems, electrical installations, building management systems, IT rooms, and the like, a reliable supply of electrical power is essential.
ABB’s new compact PowerValue 11/31 T 20 kVA B UPS slots perfectly into this market segment. It incorporates all the features necessary to deliver reliable power, low running costs, long battery life, easy maintenance, and full flexibility for the user.
Available in tower format, this UPS features double conversion and voltage and frequency independent (VFI) topology that protects against all supply failures. 10 and 20 kVA versions are available—and up to four units can be configured in parallel to boost power capability or provide redundancy. Three-phase or single-phase inputs can be accommodated, and this choice is configurable in the field for maximum flexibility. Further, the PowerValue 11/31 T 20 kVA B UPS can handle single or dual inputs—allowing the customer to manage two independent power sources.
Simple to install and with a small footprint, the PowerValue 11/31 T produces stable, regulated, transient-free, pure sine wave AC power with extremely tight output voltage regulation.
Highlights:
- Energy savings thanks to efficiencies up to 94% (online).
- 97% efficiency in ECO mode.
- Low harmonic distortions (< 5% THDi) and active power factor correction (0.99 input PF) eliminate interference from other equipment in the network.
- Paralleling up to 4 units allows for an increase of capacity and the introduction of redundancy to the system to enhance availability.
- Integrated manual bypass switch simplifies maintenance and reduces the need for external switchgears. Can operate as a frequency converter (50 Hz to/from 60 Hz).
- Compact solution that can achieve 5-16 min runtime with internal batteries.
- Same model supports different wiring schemes: three-phase and single-phase input as well as single and dual input feed.
| Product Name | ABB 20 kVA PowerValue 11/31 T B UPS Reliable Backup Solution |
|---|---|
| Output Power | 15.0kVA/ 15000VA |
| Output Voltage | 240 Volts |
| Input Frequency | 45 - 55 Hz for 50 Hz systems / 55 - 65 Hz for 60 Hz system |
| Input Voltage Range | 1ph + N: 220 / 230 / 240 VAC 3ph + N: 380 / 400 / 415 VAC |
| Interface Ports | LCD, RS-232, SNMP slot, USB |
| Control Panel | LCD display |
| Battery Type | VRLA, vented lead-acid |
| Recharge Time | Not specified (typical UPS‑dependent) |
| Audible Alarm | Built‑in UPS alarm (standard) but specific data not published |
| Approvals | Network interface (SNMP card), dry- contact card (AS400) |
| Dimensions | 350 × 890 × 715 mm (W × H × D) |
| Shipping Dimensions | 715 × 350 × 890 mm (approx.) |
| Weight | 190.000000 |
| Shipping Weight | 188 kg (package) |
| Manufacturer | ABB |
| Color | Black |
| Country of Origin | United Arab Emirates |
