ABB External Battery Pack PowerValue 11RT G2 1 kVA UPS

PRODUCT OVERVIEW

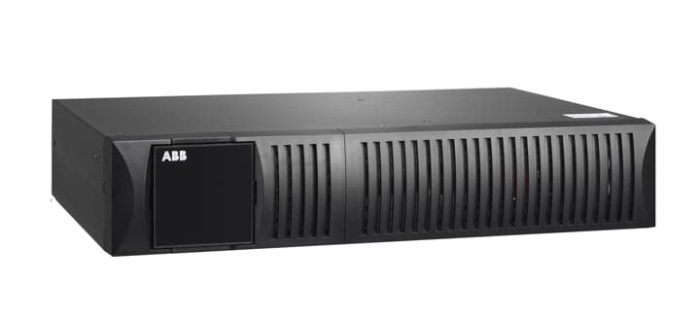

Design and Build

This external battery unit features a compact, standardized footprint that aligns with common UPS accessory formats. Its physical dimensions are approximately 438 mm (width) × 86 mm (height, 2 U) × 309 mm (depth), and it weighs around 17.9 kg (net). The robust enclosure supports up to four sealed lead‑acid battery cells, each with nominal ratings that collectively contribute to extended runtime performance.  The module can be deployed in tower orientation or mounted within a standard 19‑inch equipment rack alongside the compatible UPS unit. This adaptability facilitates integration into server closets, edge data shelves, and other structured IT spaces without the need for custom shelving or support fixtures.

Battery Technology and Runtime Performance

At its core, this external module houses four sealed lead‑acid (SLA) batteries, each rated at 9.4 Ah and 12 V nominal. These batteries are designed for reliable UPS support with predictable discharge characteristics and established service life performance.

When installed with the ABB PowerValue 11RT G2 1 kVA UPS, a single external battery unit can extend backup time significantly beyond the internal UPS battery capacity, enabling minutes to hours of additional run time depending on connected load. For reference, practical performance figures with one battery module show extended backup durations—for example, approximately 21 minutes at full load and 48 minutes at half load. Adding multiple modules in parallel further increases backup time in proportion to battery capacity added.

Key Product Features

1. Designed specifically as an external battery extension for the PowerValue 11RT G2 1 kVA UPS.

2. Houses four sealed lead‑acid battery cells rated at 9.4 Ah / 12 V nominal.

3. Compact rack/tower form factor (438 mm × 86 mm × 309 mm) for flexible installation.

4. Scalable runtime — connect multiple modules to proportionally extend backup duration.

5. Net weight approximately 17.9 kg, suitable for rack mounting or standalone use.

6. Compatible with standard 19‑inch racks (2 U) and tower configurations.

7. Enables enhanced business continuity for critical loads when mains power is unreliable.
