Allen & Heath DSP Rack Module for iDR0

SKU

M-DSPDUAL-0-A

Limited Stock - Running Out Quickly

Please call at +971-4-3360300 or Email Us for Special Pricing!

The remaining connectors not yet mentioned are the three outputs for the left and right channels and the new mono master channel, and these are provided by balanced XLRs.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Allen & Heath DSP Rack Module for iDR0:

Besides the channel inputs, insert points, and direct outputs already mentioned, there is a row of six jack sockets for the aux send outputs. When these are used to send signals out to effects, the returning signal can be plugged into either one of the two pairs of jack sockets labelled ST1 and ST2, although the unbalanced ST2 is partly intended as an audio input for a device playing pre-recorded interval music during live shows. These inputs are situated next to a pair of impedance-balanced outputs marked AB, which offer an alternative version of the stereo mix and are intended for sending a signal to an external stereo recorder. Just below the AB outs is a blanking panel where the Sys-Link II option can be added

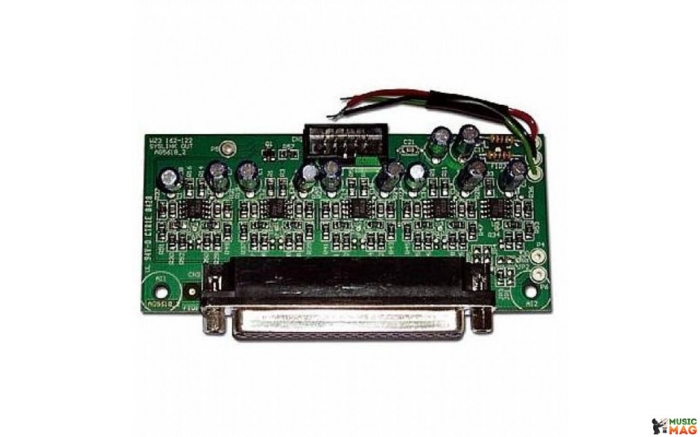

This Sys-Link II card can be inserted behind the blanking panel at the bottom right-hand side of the mixer's back panel. Once installed, the WZ316:2 can act as an input expander module for the WZ314:4:2 or a variety of Allen & Heath's larger mixers.
