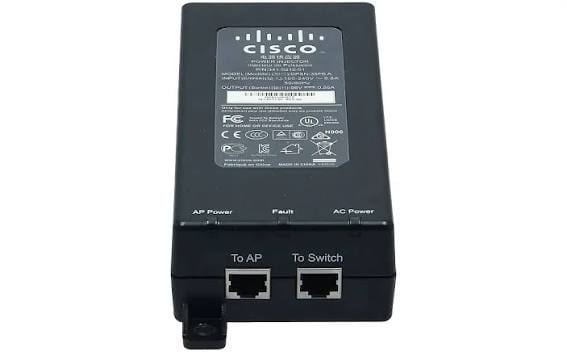

Cisco AIR-PWRINJ7= at a Glance

High-Power Multigigabit PoE Solution

The Cisco AIR-PWRINJ7= provides a dedicated power delivery solution for compatible Cisco access points when sufficient PoE power is not available directly from the network switch.

The injector receives Ethernet data from the network and combines the data with electrical power before delivering both through a single Ethernet cable to the connected wireless access point.

Key Features

• Multigigabit Power over Ethernet injector
• IEEE 802.3bt PoE standard support
• Up to 50W PoE power output
• Supports 10/100/1000/2500/5000 Mbps Ethernet speeds
• 1 × RJ-45 data input port
• 1 × RJ-45 data and PoE output port
• 100–240V AC input power
• 56V DC rated PoE output
• Designed for compatible Cisco wireless access points
• External midspan PoE deployment
• Built-in protection features
• Suitable for enterprise wireless network installations

Multigigabit Ethernet Connectivity

AIR-PWRINJ7= supports Ethernet connectivity at speeds ranging from 10 Mbps through 5 Gbps. This allows compatible access points to maintain high-speed wired uplink connectivity while receiving power through the same Ethernet connection.

IEEE 802.3bt PoE Power Delivery

The Cisco AIR-PWRINJ7= is designed for higher-power wireless access point deployments. It provides up to 50W of PoE power using IEEE 802.3bt technology.

• IEEE 802.3bt compliant power delivery
• Up to 50W PoE output
• 56V DC rated output
• 54–57V DC output range
• Maximum output current up to approximately 1.161A

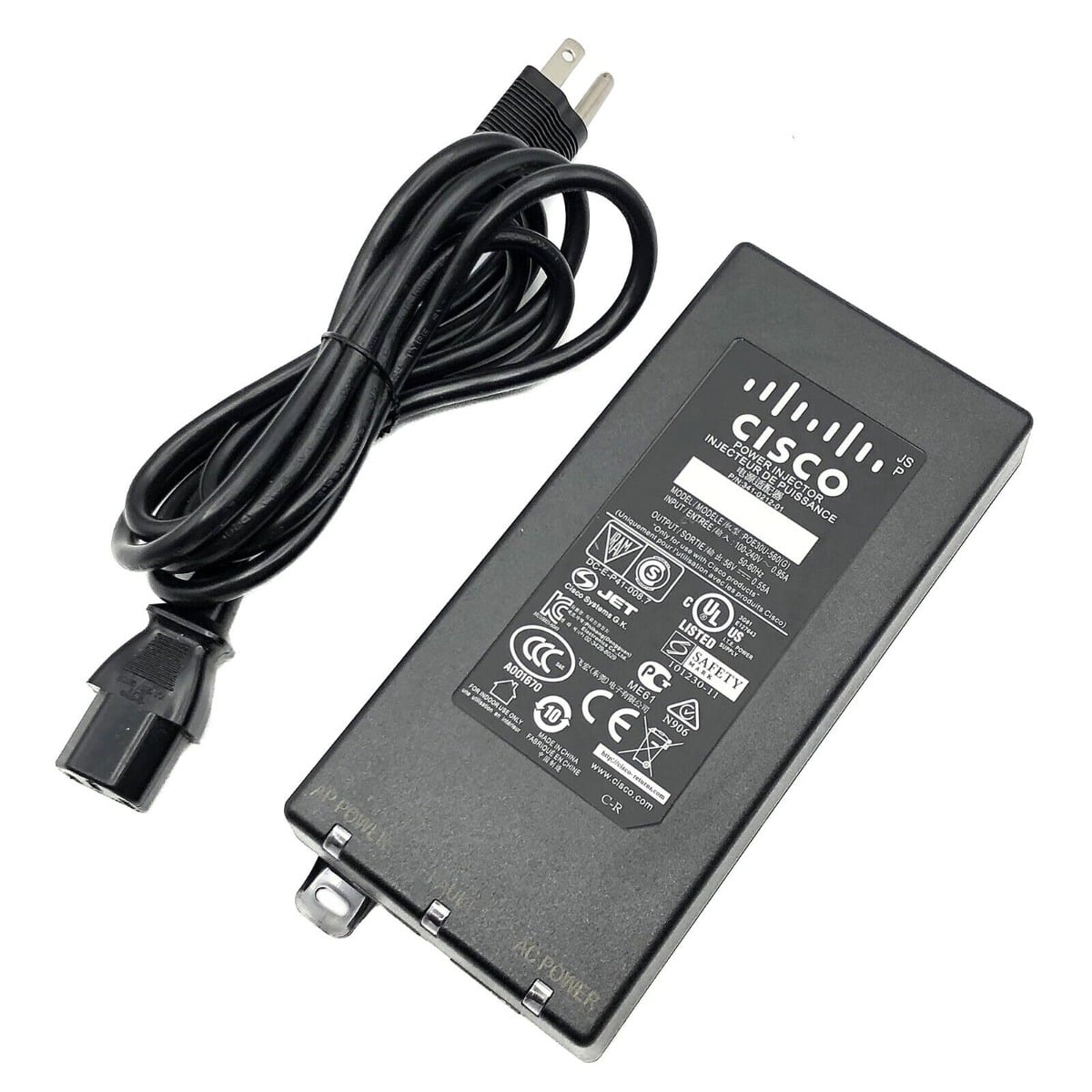

AIR-PWRINJ7= Dimensions

The Cisco AIR-PWRINJ7= measures approximately 140 × 65 × 38.5 mm, making it suitable for compact external midspan PoE installations.

Easy PoE Deployment

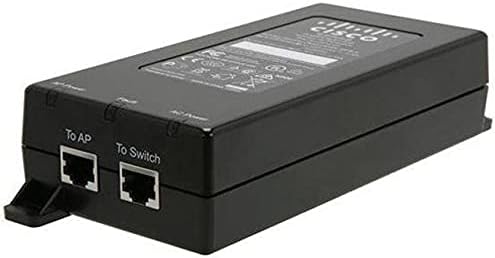

AIR-PWRINJ7= can be installed between a network switch and a compatible Cisco access point. The injector receives Ethernet data from the network and adds PoE power before sending both through the Ethernet cable connected to the access point.

Typical Connection

Enterprise Wireless Applications

• Enterprise Wi-Fi access point deployments
• Corporate offices and business networks
• Education and university wireless networks
• Healthcare wireless infrastructure
• Retail and commercial environments
• Hospitality and large venue Wi-Fi deployments
• High-density wireless access point installations
• Deployments where a PoE switch port is unavailable

Power and Protection Features

The injector incorporates protection features designed to help safeguard the connected equipment and power delivery system during abnormal operating conditions.

• Overvoltage protection
• Overcurrent protection
• Overload protection
• Overtemperature protection
• Short-circuit protection

Compatibility Consideration

AIR-PWRINJ7= should be used with Cisco wireless access points that officially support this injector and its available power level. The required power depends on the access point model, installed features and deployment configuration.

Benefits of Cisco AIR-PWRINJ7=

• Provides high-power PoE for compatible Cisco access points
• Supports Multigigabit Ethernet connectivity up to 5 Gbps
• IEEE 802.3bt technology for higher power delivery
• Useful where PoE switch infrastructure is unavailable
• Simple external midspan installation
• Designed for enterprise wireless networking environments
• Supports data and power through a single Ethernet connection
• Compact form factor for flexible deployment
