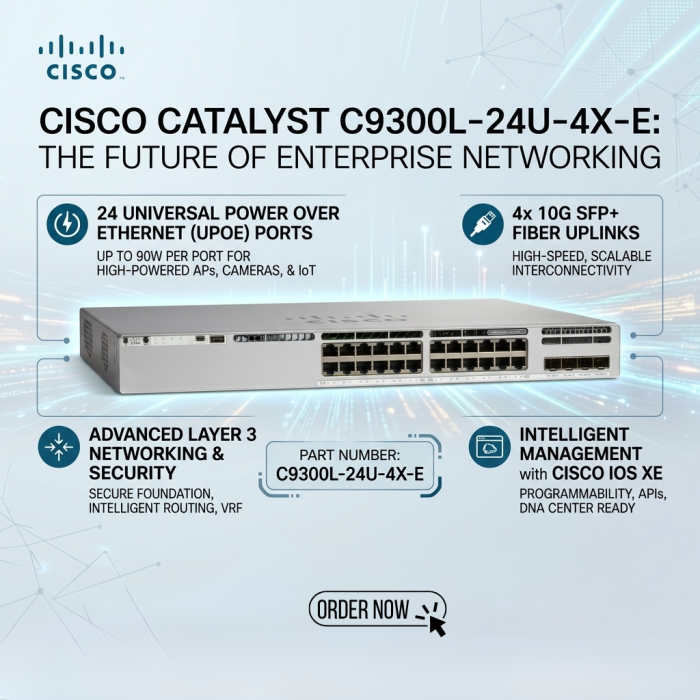

Cisco C9300L-24U-4X-E Catalyst 24-Port UPOE Managed Switch with 4×10G SFP+ Fiber Uplinks

PRODUCT OVERVIEW

Cisco C9300L-24U-4X-E Catalyst 24-Port UPOE Managed Switch with 4×10G SFP+ Fiber Uplinks

The Cisco Catalyst C9300L-24U-4X-E is an enterprise-class Layer 3 managed switch designed to deliver secure, high-performance networking with Universal Power over Ethernet (UPOE) capabilities. Equipped with 24 Gigabit Ethernet UPOE ports and 4 fixed 1G/10G SFP+ uplink ports, it provides reliable wired connectivity while delivering up to 60W of power per port to support high-power devices such as Wi-Fi 6/6E access points, IP cameras, VoIP phones, digital signage, and IoT endpoints. The included Network Essentials license offers comprehensive Layer 2 and essential Layer 3 features for enterprise campus and branch deployments.

Powered by Cisco IOS XE and the Cisco UADP ASIC 2.0 architecture, the C9300L-24U-4X-E provides advanced security, simplified automation, and intelligent network management. It supports enterprise networking features including VLANs, Quality of Service (QoS), Access Control Lists (ACLs), IEEE 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, Flexible NetFlow, and IPv4/IPv6 routing, helping organizations build secure and resilient network infrastructures.

The switch features 24 × 10/100/1000 Mbps UPOE ports, each capable of delivering up to 60W to compatible devices, reducing the need for separate power supplies. Its 4 fixed 1G/10G SFP+ uplink ports provide high-speed fiber connectivity to aggregation or core switches, ensuring maximum throughput for bandwidth-intensive applications. With a 448 Gbps switching capacity, 333.33 Mpps forwarding rate, 8 GB DRAM, and 16 GB Flash memory, the switch is engineered to handle demanding enterprise workloads with outstanding performance and reliability.

For increased resiliency and simplified management, the Cisco Catalyst C9300L-24U-4X-E supports Cisco StackWise-320 technology, enabling multiple switches to operate as a single logical unit with up to 320 Gbps stacking bandwidth. This architecture enhances network availability, streamlines administration, and allows organizations to scale their infrastructure efficiently as business requirements evolve.

The Cisco Catalyst C9300L-24U-4X-E is an excellent choice for enterprise campuses, healthcare facilities, educational institutions, hospitality, retail, manufacturing, and government organizations requiring high-power PoE, advanced security, and scalable Layer 3 switching. Its combination of UPOE, high-speed 10G uplinks, Cisco IOS XE, and enterprise-class reliability makes it a future-ready solution for modern business networks.

Key Features

• 24 × Gigabit Ethernet UPOE (60W) RJ-45 ports
• 4 × Fixed 1G/10G SFP+ uplink ports
• Cisco Network Essentials license
• Cisco IOS XE operating system
• Cisco UADP ASIC 2.0 architecture
• Advanced Layer 2 and Layer 3 switching
• 448 Gbps switching capacity
• 333.33 Mpps forwarding rate
• Cisco StackWise-320 support
• Up to 60W UPOE output per port
• 8 GB DRAM and 16 GB Flash memory
• Enterprise security with VLAN, QoS, ACLs, IEEE 802.1X, DHCP Snooping, and IPv4/IPv6 routing
• Ideal for Wi-Fi 6/6E, IP surveillance, unified communications, IoT, and enterprise campus deployments

Technical Specifications

• Model: C9300L-24U-4X-E
• Ethernet Ports: 24 × Gigabit Ethernet UPOE
• Uplink Ports: 4 × Fixed 1G/10G SFP+
• Power over Ethernet: Universal PoE (UPOE) up to 60W per port
• Operating System: Cisco IOS XE
• License: Cisco Network Essentials
• CPU: Cisco UADP ASIC 2.0
• Memory: 8 GB DRAM
• Flash Memory: 16 GB
• Switching Capacity: 448 Gbps
• Forwarding Rate: 333.33 Mpps
• Stacking: Cisco StackWise-320
• Weight: Approximately 4.35 kg (9.59 lb)
