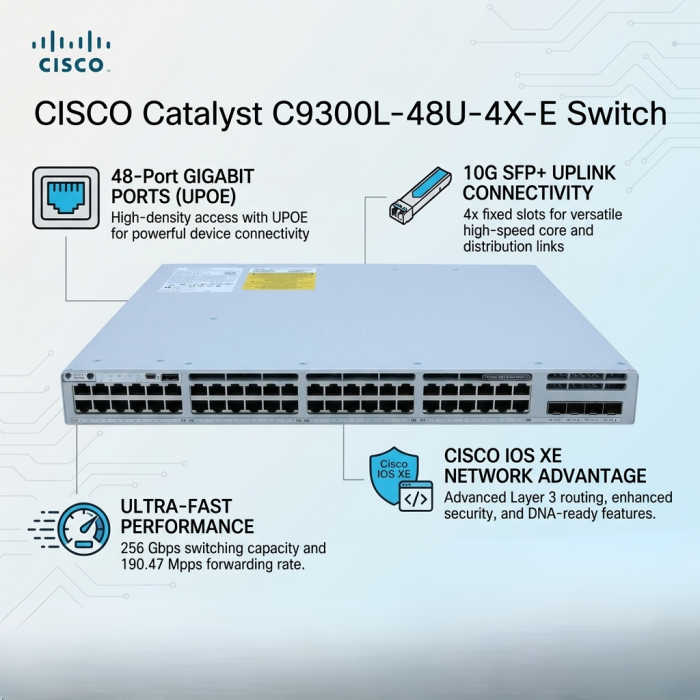

Cisco C9300L-48U-4X-E 48-Port Gigabit UPOE Layer 3 Switch with 10G SFP+ Uplink Connectivity
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Features Of The Cisco Catalyst C9300L-48U-4X-E
-
48-port Gigabit PoE+ Layer 3 switch with 4×1G/10G SFP+ uplinks.
-
Network Advantage with Cisco IOS XE for advanced routing and security.
-
256 Gbps switching capacity and 190.47 Mpps forwarding rate.
-
505W PoE budget with Cisco StackWise-320 support.
PRODUCT OVERVIEW
High-Power UPOE Performance for Enterprise Networks
The Cisco Catalyst C9300L-48U-4X-E is a high-performance enterprise Layer 3 managed switch designed for modern business networks requiring reliable connectivity, advanced security, and high-power PoE delivery. It features 48 Gigabit UPOE RJ-45 ports capable of delivering up to 60W per port, making it ideal for powering next-generation wireless access points, IP phones, PTZ cameras, digital signage, IoT devices, and other power-hungry network endpoints.
High-Speed Network Connectivity
Equipped with 4 fixed 1G/10G SFP+ uplink ports, the switch provides high-speed fiber connectivity to aggregation and core network infrastructure. With 256 Gbps switching capacity and approximately 190.48 Mpps forwarding performance, the C9300L-48U-4X-E delivers fast and reliable data transmission for demanding enterprise applications, cloud services, video, unified communications, and high-density network environments.
Built for Enterprise Growth
Powered by Cisco IOS XE with a Network Essentials license, the switch provides enterprise-grade Layer 2 and Layer 3 networking, intelligent management, automation, and security capabilities. It supports Cisco StackWise-320, allowing compatible switches to operate as a single logical unit with up to 320 Gbps stacking bandwidth for improved scalability, resiliency, and simplified network administration.
Advanced Enterprise Security
The Cisco Catalyst C9300L-48U-4X-E provides comprehensive security features including IEEE 802.1X authentication, MACsec encryption, Access Control Lists (ACLs), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and Secure Boot. These technologies help protect enterprise networks against unauthorized access and common network-based security threats.
Next-Generation UPOE Networking
Designed for modern digital infrastructure, the Cisco Catalyst C9300L-48U-4X-E combines high-power UPOE connectivity, high-speed 10G SFP+ fiber uplinks, advanced Layer 3 networking, and intelligent management in a scalable enterprise platform. It is well suited for Wi-Fi deployments, IP telephony, CCTV surveillance, IoT, digital signage, healthcare, education, retail, hospitality, and corporate networks.
Ideal Applications
Enterprise Campuses • Branch Offices • Wi-Fi Access Points • IP Telephony • PTZ CCTV Cameras • IoT Networks • Digital Signage • Healthcare • Education • Retail • Hospitality • Manufacturing
| Product Name | Cisco C9300L-48U-4X-E 48-Port Gigabit UPOE Layer 3 Switch with 10G SFP+ Uplink Connectivity |
|---|---|
| Weight | 4.350000 |
| Switching Capacity | 256 Gbps |
| Memory | 8 GB DRAM, 16 GB Flash |
| Interface | 48 × 10/100/1000 UPOE RJ-45, 4 × 1G/10G SFP+ |
| Ethernet | Gigabit Ethernet UPOE |
| I/O Port | 48 × RJ-45 UPOE, 4 × 1G/10G SFP+, Console, USB-C Console, USB 3.0, Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP ASIC 2.0 |
| Network/Network Standard | IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3bt, 802.1Q, 802.1X, IPv4/IPv6 |
| Dimensions | 4.4 × 44.5 × 40.9 cm |
| Power Supply | 1100W AC |
| Operating Temperature | 0°C to 45°C |
| Max. Power Consumption | 1100W AC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | China |
