Cisco C9500X-60L4D-E 60-Port 50G + 4-Port 400G Catalyst Switch
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9500X-60L4D-E
-
60 × SFP56 Ports supporting 10/25/50 Gigabit Ethernet connectivity.
-
4 × QSFP-DD Ports supporting 40/100/200/400 Gigabit Ethernet.
-
Powered by the Cisco Silicon One Q200 ASIC for high-performance switching.
-
Supports Cisco IOS XE, with C9500X-60L4D requiring IOS XE 17.10.1 or later.
-
Designed for high-density enterprise aggregation, campus core, and data-center network environments.
Cisco C9500X-60L4D-E 60-Port 50G + 4-Port 400G Catalyst Switch
High-density enterprise switching platform featuring 60 x 10/25/50G SFP56 ports, 4 x 40/100/200/400G QSFP-DD ports, Cisco Silicon One Q200 ASIC technology, and Cisco IOS XE capabilities for demanding campus core, distribution, aggregation, and high-bandwidth network environments.
Cisco C9500X-60L4D-E Overview
The Cisco C9500X-60L4D-E is a high-density Cisco Catalyst 9500X Series enterprise switching platform designed for demanding campus core, distribution, aggregation, and high-performance network deployments. It combines 60 SFP56 ports supporting 10/25/50 Gigabit Ethernet with 4 QSFP-DD ports supporting 40/100/200/400 Gigabit Ethernet.
Powered by the Cisco Silicon One Q200 ASIC and offering up to 9.2 Tbps switching capacity and up to 8 Bpps forwarding performance, the platform provides scalable bandwidth, high port density, advanced buffering, and reliable enterprise networking capabilities.

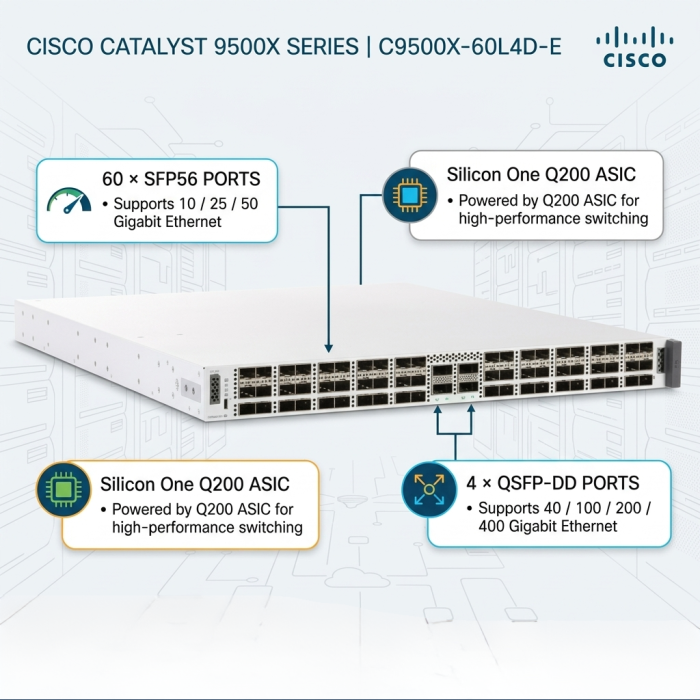

Product Views
Key Features
60 x SFP56 Ports
Provides 60 high-density SFP56 interfaces supporting 10/25/50 Gigabit Ethernet connectivity.
4 x QSFP-DD Ports
Four high-speed QSFP-DD interfaces support 40/100/200/400GbE connectivity for high-bandwidth uplinks and aggregation.
Cisco Silicon One Q200
Advanced Cisco Silicon One Q200 ASIC technology provides high-performance packet processing and scalable forwarding.
Cisco IOS XE
Runs Cisco IOS XE for programmability, automation, telemetry, security, and advanced enterprise networking capabilities.
High-Density Fiber Switching
Combines 60 SFP56 interfaces and 4 QSFP-DD interfaces in a compact high-density 1U chassis.
1U Rack Design
Compact 1U form factor helps maximize rack-space efficiency in enterprise campus, aggregation, and high-performance network deployments.
High-Performance Switching
The C9500X-60L4D-E is designed for high-bandwidth enterprise environments where scalable Ethernet performance, dense fiber connectivity, and high-speed uplinks are essential.
Port Connectivity
| Interface | Quantity | Supported Speeds | Technology |
|---|---|---|---|
| SFP56 | 60 | 10/25/50GbE | SFP56 Fiber |
| QSFP-DD | 4 | 40/100/200/400GbE | QSFP-DD Fiber |
Cisco Silicon One Q200 ASIC
The C9500X-60L4D-E platform is built around the Cisco Silicon One Q200 ASIC, providing high-performance packet processing, scalable forwarding, large table scale, and advanced hardware capabilities for modern high-density enterprise networks.
Enterprise Networking Capabilities
Enterprise Security
Cisco Catalyst 9500X platforms provide hardware-based security capabilities including line-rate MACsec and WAN-MACsec, helping protect enterprise network traffic and infrastructure.
Cisco IOS XE
Cisco IOS XE provides a modern software architecture supporting programmability, automation, telemetry, software-defined networking capabilities, and advanced enterprise network operations.
Compact 1U Enterprise Design
Hardware & Management
1G Connectivity Support
The C9500X-60L4D platform supports up to eight 1G connections using supported SFP-1G-SX and/or SFP-1G-LH transceiver modules in the SFP56 ports.
High Availability & Power
Redundant Power
Two power supply slots support redundant power configurations for improved system availability.
Modular Fans
Modular fan architecture provides flexible cooling options and supports reliable operation in different rack environments.
Rack Efficient
The compact 1U chassis provides high port density while minimizing rack-space requirements.
Ideal Applications
High-performance switching for enterprise campus core networks.
Dense fiber connectivity for enterprise distribution layers.
High-bandwidth aggregation for demanding enterprise network environments.
High-speed 100G/200G/400G connectivity for modern enterprise and infrastructure deployments.
Cisco C9500X-60L4D-E
The Cisco Catalyst C9500X-60L4D-E combines 60 high-speed SFP56 interfaces and 4 QSFP-DD ports with Cisco Silicon One Q200 ASIC technology and Cisco IOS XE software. With up to 9.2 Tbps of switching capacity, up to 8 Bpps forwarding performance, and a compact 1U design, it is engineered for scalable enterprise core, distribution, aggregation, and high-bandwidth network deployments.
| Product Name | Cisco C9500X-60L4D-E 60-Port 50G + 4-Port 400G Catalyst Switch |
|---|---|
| Weight | 12.800000 |
| CPU | Intel 2.3 GHz x86, 8-Core CPU |
| Switching Capacity | Up to 9.2 Tbps |
| Memory | 32 GB DDR4 RAM |
| Interface | 60 × SFP56 + 4 × QSFP-DD |
| Ethernet | 10/25/50GbE on SFP56; 40/100/200/400GbE on QSFP-DD |
| I/O Port | 60 × SFP56, 4 × QSFP-DD, USB-C Console, RJ-45 Management/Console |
| Operating System | Cisco IOS XE |
| Network/Network Standard | IEEE 802.3 Ethernet, IPv4/IPv6, Layer 2/Layer 3, BGP, OSPF, VXLAN/EVPN, MPLS |
| Dimensions | 4.4 × 44.5 × 55.4 cm |
| Power Supply (PoE) | 1500W AC / 1500W DC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
