Product Overview

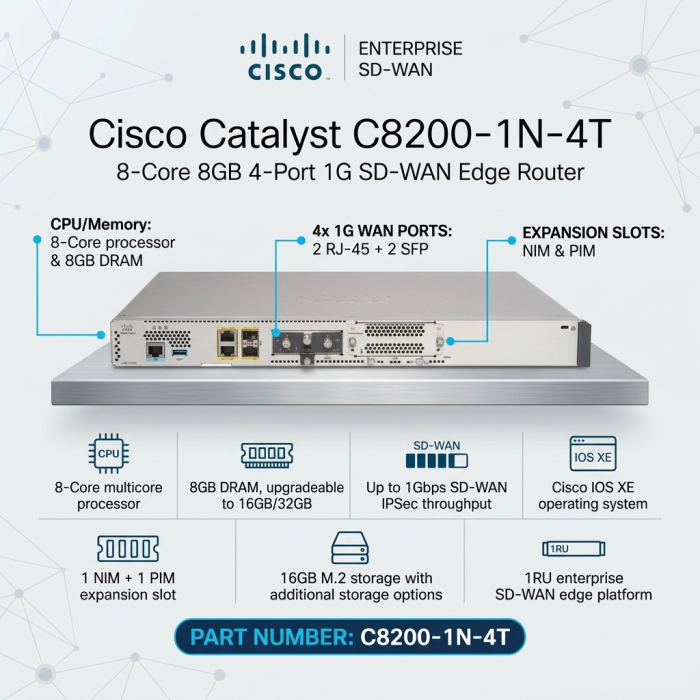

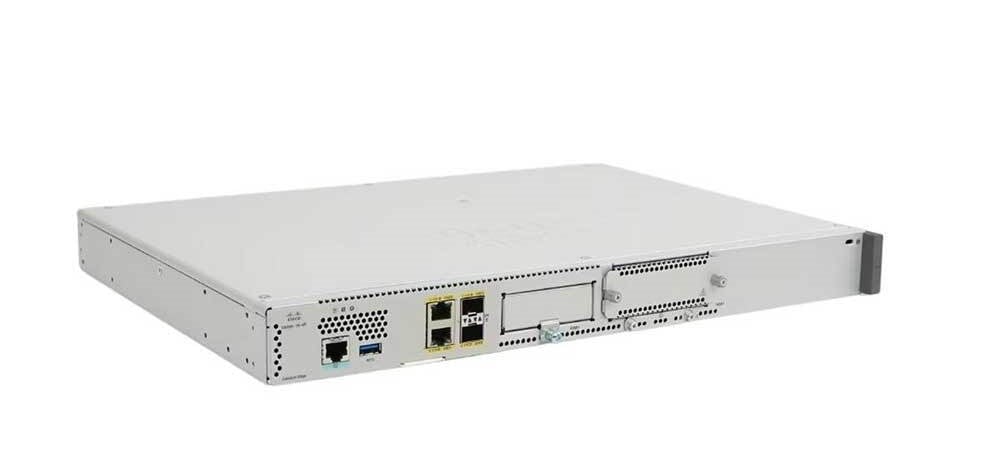

The Cisco Catalyst C8200-1N-4T is a modular 1RU SD-WAN edge platform engineered for small and medium-sized enterprise branch offices that require higher throughput, network scale and service flexibility. It combines powerful multicore processing, integrated Gigabit Ethernet WAN ports, modular interfaces and advanced security capabilities in a compact enterprise platform.

Powered by an 8-core CPU and supplied with 8GB of default DRAM, the C8200-1N-4T provides the processing and memory resources required for demanding branch routing, SD-WAN, VPN and security workloads. The DRAM can be upgraded to 16GB or 32GB for higher-scale deployments.

The platform includes four integrated 1 Gigabit Ethernet WAN interfaces consisting of 2 × RJ-45 copper ports and 2 × SFP fiber ports. It also provides one NIM slot and one PIM slot for additional connectivity and network expansion.

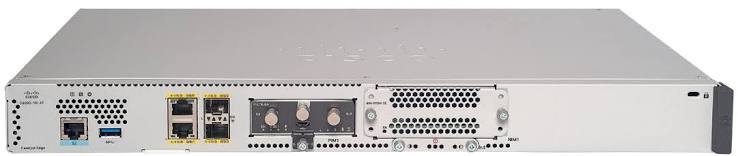

4-Port Gigabit Ethernet WAN Connectivity

The C8200-1N-4T provides four onboard Gigabit Ethernet WAN interfaces for connecting enterprise branches to different WAN services. The combination of copper and fiber interfaces gives network administrators greater flexibility when deploying Internet, MPLS, Ethernet or other WAN connections.

• 4 × integrated 1 Gigabit Ethernet WAN ports
• 2 × Gigabit Ethernet RJ-45 ports
• 2 × Gigabit Ethernet SFP ports
• 1 × Network Interface Module (NIM) slot
• 1 × Pluggable Interface Module (PIM) slot
• Supports flexible WAN and branch connectivity options

High-Performance Cisco SD-WAN

The C8200-1N-4T is designed for branch environments that require higher SD-WAN throughput and scale. Cisco specifies up to 1 Gbps SD-WAN IPsec throughput with 1400-byte traffic and up to 900 Mbps with IMIX.

The platform supports up to 2,500 SD-WAN overlay tunnels, enabling scalable connectivity across distributed enterprise branch networks.

Integrated Security and SD-WAN Services

The Cisco Catalyst C8200-1N-4T combines SD-WAN connectivity with advanced security services for modern branch networks. It supports integrated security capabilities and container-based applications, allowing organizations to implement comprehensive protection without requiring separate branch security appliances.

Cisco's tested multi-layer security use cases include next-generation firewall, intrusion prevention, URL filtering and Advanced Malware Protection workloads alongside SD-WAN traffic.

Memory and Storage

The C8200-1N-4T ships with 8GB of DRAM and supports memory upgrades to 16GB or 32GB. This scalable memory architecture allows organizations to increase system resources as routing tables, security services and branch application requirements grow.

The platform includes 8GB soldered-down onboard flash memory and ships with 16GB M.2 storage. Additional M.2 storage options include 32GB M.2 USB and 600GB M.2 NVMe storage, depending on configuration and requirements.

• 8GB default control-plane DRAM
• Optional 16GB and 32GB DRAM upgrades
• 2GB fixed data-plane DRAM
• 8GB onboard soldered flash memory
• 16GB M.2 storage included by default
• Optional 32GB M.2 USB storage
• Optional 600GB M.2 NVMe storage

Cisco IOS XE Operating System

The Cisco Catalyst C8200-1N-4T runs on Cisco IOS XE, providing a modern software foundation for enterprise routing, SD-WAN, VPN, security, automation and network management.

Cisco IOS XE supports controller-based networking and programmable interfaces, allowing the C8200-1N-4T to integrate into centralized enterprise network management architectures.

• Cisco IOS XE operating system
• Cisco SD-WAN support
• Cisco Catalyst Center management
• Programmable APIs
• Centralized policy and network management
• Enterprise routing and VPN capabilities

Enterprise Routing and Network Scale

The C8200-1N-4T provides significant routing and session scalability for small and medium-sized branches. Its expandable DRAM architecture allows the platform to support larger routing tables and increased NAT capacity.

• Up to 1.6M IPv4 routes with default 8GB DRAM
• Up to 4M IPv4 routes with 32GB DRAM
• Up to 1.5M IPv6 routes with default 8GB DRAM
• Up to 4M IPv6 routes with 32GB DRAM
• Up to 1.2M NAT sessions with default 8GB DRAM
• Up to 2M NAT sessions with 32GB DRAM
• Up to 512K firewall sessions
• Up to 4,000 VRFs
• Up to 4,000 ACLs
• Up to 72K IPv4 ACEs
• Up to 8K queues

Modular Expansion

The C8200-1N-4T provides one NIM slot and one PIM slot, allowing organizations to expand WAN, LAN, wireless and other connectivity capabilities according to deployment requirements.

Cisco provides a broad range of compatible modules for the Catalyst 8200 Series, including Gigabit Ethernet switching, routed-port and wireless WAN options. This modular approach helps organizations adapt their branch infrastructure without replacing the complete edge platform.

Ideal Applications

Why Choose Cisco Catalyst C8200-1N-4T?

• High-performance 8-core enterprise edge platform
• Four integrated 1G WAN ports
• 2 × RJ-45 and 2 × SFP Gigabit Ethernet interfaces
• 8GB default DRAM with 16GB and 32GB upgrade options
• 16GB M.2 storage included by default
• 1GB SD-WAN IPsec throughput
• Up to 2,500 SD-WAN overlay tunnels
• 3.8Gbps IPv4 forwarding throughput
• 1 NIM and 1 PIM expansion slot
• Cisco IOS XE operating system
• Advanced VPN and integrated security capabilities
• Designed for small and medium-sized enterprise branches
