Cisco Catalyst C9200-24P-A 24-Port Gigabit PoE+ Managed Switch with Modular Uplink, Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-24P-A
The Cisco Catalyst C9200-24P-A combines enterprise-class performance, advanced Layer 3 networking, flexible modular uplinks, and reliable PoE+ connectivity, making it the ideal choice for organizations seeking a secure, scalable, and high-performance managed switch for demanding business environments.
PRODUCT OVERVIEW

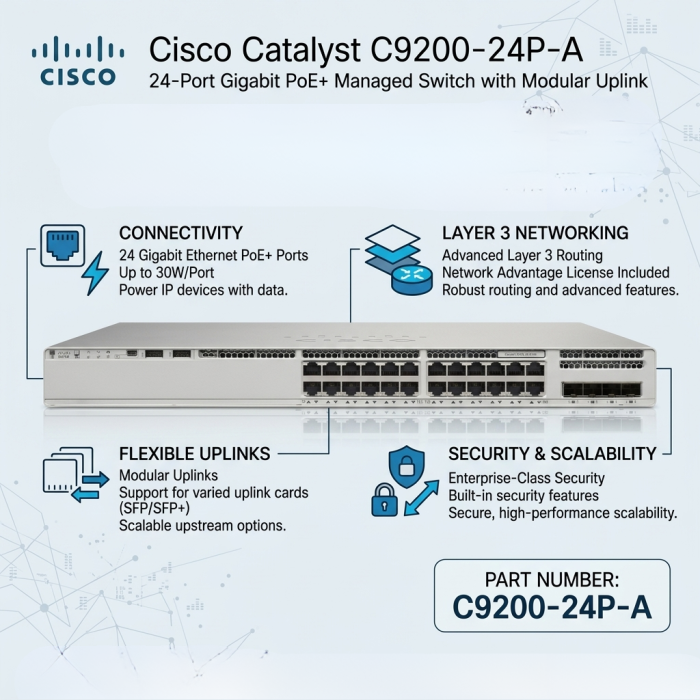

Cisco Catalyst C9200-24P-A 24-Port Gigabit PoE+ Managed Switch with Modular Uplink, Network Advantage
The Cisco Catalyst C9200-24P-A is an enterprise-class managed switch designed to deliver secure, intelligent, and scalable networking for modern organizations. Equipped with 24 Gigabit Ethernet PoE+ ports and a modular uplink slot, this switch provides high-performance connectivity while powering IP phones, wireless access points, surveillance cameras, and other PoE-enabled devices through a single Ethernet cable. The Network Advantage license unlocks advanced Layer 3 routing, enhanced security, automation, and policy-based networking capabilities, making it ideal for enterprise campus and branch deployments.
Powered by Cisco IOS XE, the C9200-24P-A offers enterprise-grade security, automation, and simplified network management. Built on Cisco's UADP 2.0 ASIC architecture, it supports advanced features such as VLANs, Quality of Service (QoS), Access Control Lists (ACLs), MACsec encryption, Flexible NetFlow, and Software-Defined Access (SD-Access) integration. These capabilities help optimize network performance while protecting business-critical applications and sensitive data.
The switch features 24 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, delivering up to 30W per port to connected devices. It is supplied with a 600W AC power supply, providing ample PoE capacity for enterprise deployments. Its modular uplink slot supports optional 4 × 1G SFP, 4 × 1G/10G SFP+, 2 × 25G SFP28, or 2 × 40G QSFP+ network modules, allowing businesses to expand bandwidth and adapt to future networking requirements without replacing the switch.
For high availability and simplified administration, the Cisco Catalyst C9200-24P-A supports Cisco StackWise-160, enabling multiple switches to function as a single logical unit for easier management and increased resiliency. Field-replaceable power supplies and redundant fans further enhance reliability, ensuring continuous operation in mission-critical environments.
With 4 GB DRAM, 4 GB Flash memory, a 128 Gbps switching capacity, and Cisco's proven enterprise networking technologies, the C9200-24P-A is an excellent solution for corporate offices, educational institutions, healthcare facilities, retail environments, and government organizations requiring secure, scalable, and future-ready network infrastructure.
Key Features
- 24 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 PoE+ ports
- Modular uplink slot supporting optional 1G, 10G, 25G, and 40G network modules
- Cisco Network Advantage software license
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- Advanced Layer 2 and Layer 3 switching and routing
- 128 Gbps switching capacity
- 600W AC power supply
- Cisco StackWise-160 stacking support
- 4 GB DRAM and 4 GB Flash memory
- VLAN, QoS, ACL, MACsec encryption, and Flexible NetFlow
- Ideal for enterprise campuses, branch offices, IP telephony, wireless networking, and surveillance deployments
Technical Specifications
- Model: C9200-24P-A
- Ethernet Ports: 24 × Gigabit Ethernet RJ-45 PoE+
- Uplink: Modular network module (optional 1G/10G/25G/40G)
- PoE Support: Yes (PoE+)
- Power Supply: PWR-C6-600WAC
- Operating System: Cisco IOS XE
- License: Cisco Network Advantage
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 128 Gbps
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-24P-A 24-Port Gigabit PoE+ Managed Switch with Modular Uplink, Network Advantage |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 128 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 24 × 10/100/1000 Gigabit Ethernet PoE+ RJ-45 Ports, 1 × Modular Uplink Slot |
| Ethernet | 24 × 10/100/1000 Mbps Gigabit Ethernet PoE+ (Up to 30W per port) |
| I/O Port | 1 × Modular Uplink Slot (Supports optional 4×1G SFP, 4×10G SFP+, 8×10G SFP+, or 2×25G SFP28 Network Modules), RJ-45 Console Port, USB Mini-Type B Console Port, USB Type-A Port, RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
