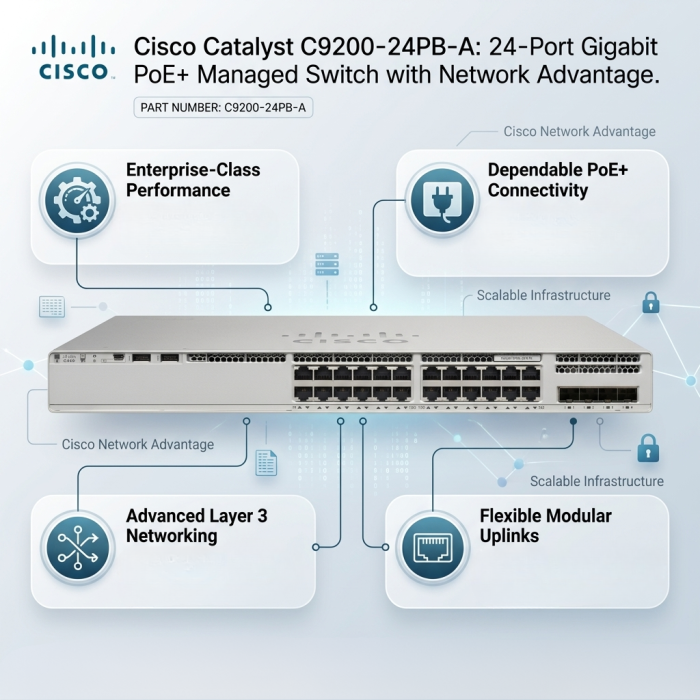

Cisco Catalyst C9200-24PB-A 24-Port Gigabit PoE+ Managed Switch with Modular Uplink, Network Advantage

The Cisco Catalyst C9200-24PB-A is an enterprise-grade managed switch engineered to deliver secure, intelligent, and scalable network connectivity for organizations with demanding business requirements. Featuring 24 Gigabit Ethernet PoE+ ports and a modular uplink slot, this switch enables high-speed wired networking while providing Power over Ethernet (PoE+) to IP phones, wireless access points, IP surveillance cameras, and other connected devices. The switch includes the Cisco Network Advantage license, offering advanced Layer 2 and Layer 3 capabilities, enhanced routing, network segmentation, and enterprise-grade security.

Powered by Cisco IOS XE, the C9200-24PB-A simplifies network management with integrated automation, advanced monitoring, and robust security features. Built on Cisco's UADP 2.0 ASIC architecture, it supports intelligent traffic management, VLANs, Quality of Service (QoS), Access Control Lists (ACLs), MACsec encryption, Flexible NetFlow, and Software-Defined Access (SD-Access), ensuring reliable performance for mission-critical applications, voice, video, and cloud services.

The switch is equipped with 24 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, delivering up to 30W of power per port to support a wide range of PoE-enabled devices. Its modular uplink slot supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, and 2 × 25G SFP28 network modules, allowing businesses to expand network bandwidth as requirements evolve. A 600W AC power supply provides a generous PoE budget for enterprise deployments.

The C9200-24PB-A is part of Cisco's Enhanced Virtual Networks (Enhanced VN) portfolio, supporting up to 32 Virtual Networks (VNs) for Software-Defined Access (SD-Access) deployments. This makes it an ideal solution for organizations implementing advanced network segmentation and large-scale enterprise architectures.

Designed for maximum reliability, the switch supports Cisco StackWise-160, allowing multiple switches to operate as a single logical unit for simplified management, increased resiliency, and seamless scalability. Field-replaceable power supplies and redundant cooling fans help minimize downtime and ensure continuous network availability.

With 4 GB DRAM, 4 GB Flash memory, a 128 Gbps switching capacity, and Cisco's proven enterprise networking technologies, the Cisco Catalyst C9200-24PB-A is an excellent choice for corporate campuses, government organizations, healthcare facilities, educational institutions, financial services, and branch offices requiring secure, scalable, and future-ready networking.

Key Features

• 24 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 PoE+ ports

• Modular uplink slot supporting optional 1G, 10G, and 25G network modules

• Cisco Network Advantage software license

• Enhanced Virtual Networks (Supports up to 32 VNs)

• Cisco IOS XE operating system

• Cisco UADP 2.0 ASIC architecture

• Advanced Layer 2 and Layer 3 switching and routing

• 128 Gbps switching capacity

• 600W AC power supply

• Cisco StackWise-160 stacking support

• 4 GB DRAM and 4 GB Flash memory

• VLAN, QoS, ACL, MACsec encryption, Flexible NetFlow, and enterprise-grade security

Technical Specifications

• Model: C9200-24PB-A

• Ethernet Ports: 24 × Gigabit Ethernet RJ-45 PoE+

• Uplink: Modular network module (optional 1G/10G/25G)

• PoE Support: Yes (PoE+)

• PoE Power Supply: 600W AC

• Operating System: Cisco IOS XE

• License: Cisco Network Advantage

• CPU: Cisco UADP 2.0 ASIC

• Memory: 4 GB DRAM

• Flash Memory: 4 GB

• Switching Capacity: 128 Gbps

• Stacking: Cisco StackWise-160

The Cisco Catalyst C9200-24PB-A delivers enterprise-class performance, advanced Layer 3 networking, Enhanced Virtual Network support, flexible modular uplinks, and dependable PoE+ connectivity, making it the ideal managed switch for organizations building secure, scalable, and software-defined network infrastructures.
