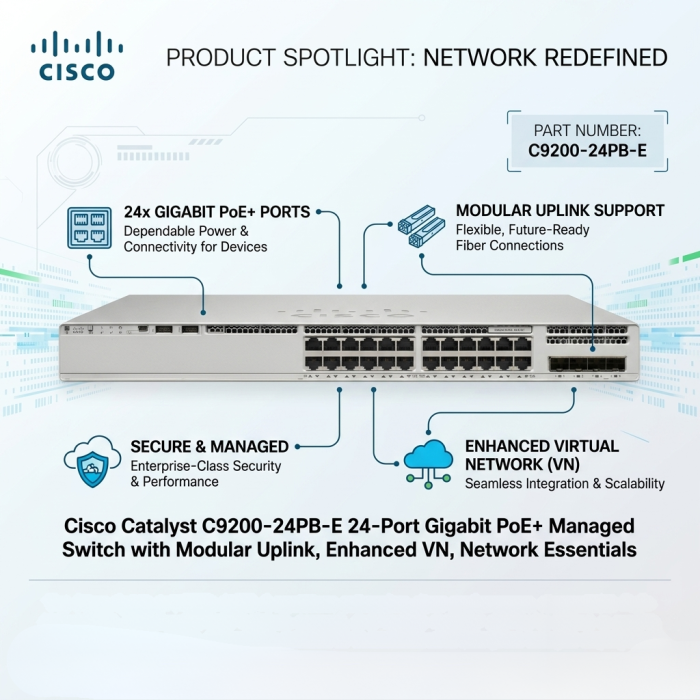

Cisco Catalyst C9200-24PB-E 24-Port Gigabit PoE+ Managed Switch with Modular Uplink, Enhanced VN, Network Essentials
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-24PB-E
The Cisco Catalyst C9200-24PB-E combines enterprise-class performance, dependable PoE+ connectivity, Enhanced Virtual Network support, and flexible modular uplinks to deliver a secure, scalable, and future-ready networking solution for businesses and enterprise campus deployments.
PRODUCT OVERVIEW
Cisco Catalyst C9200-24PB-E 24-Port Gigabit PoE+ Managed Switch with Modular Uplink, Enhanced VN, Network Essentials
The Cisco Catalyst C9200-24PB-E is a high-performance enterprise managed switch designed to deliver secure, scalable, and reliable connectivity for modern business networks. Equipped with 24 Gigabit Ethernet PoE+ ports and a modular uplink slot, this switch enables organizations to connect and power IP phones, wireless access points, IP cameras, and other PoE-enabled devices while providing flexible uplink options for growing network infrastructures. The Network Essentials license offers essential Layer 2 and Layer 3 networking capabilities, making it an excellent choice for enterprise access, branch offices, educational institutions, and commercial environments.
Powered by Cisco IOS XE, the C9200-24PB-E provides advanced security, simplified management, and intelligent automation. Built on Cisco's UADP 2.0 ASIC architecture, the switch supports enterprise networking features including VLANs, Quality of Service (QoS), Access Control Lists (ACLs), IEEE 802.1X authentication, and secure network segmentation to ensure reliable performance for voice, video, cloud, and business-critical applications.
The switch features 24 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, delivering up to 30W per port for compatible devices. It comes with a 600W AC power supply, providing a 370W PoE budget, with the option to add a secondary power supply for increased PoE capacity and redundancy. The modular uplink slot supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, and 2 × 25G SFP28 network modules, allowing businesses to easily expand bandwidth as network demands increase.
As part of Cisco's Enhanced Virtual Network (Enhanced VN) platform, the C9200-24PB-E supports up to 32 Virtual Networks (VNs) for Software-Defined Access (SD-Access) deployments. This makes it an ideal solution for organizations requiring advanced network segmentation, secure multi-tenant environments, and scalable campus network architectures.
For maximum availability, the switch supports Cisco StackWise-160, enabling multiple switches to operate as a single logical unit for simplified management, higher resiliency, and seamless scalability. Field-replaceable redundant power supplies and fans further improve system reliability, minimizing downtime in mission-critical enterprise environments.
Key Features
- 24 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 PoE+ ports
- Modular uplink slot supporting optional 1G, 10G, and 25G network modules
- Cisco Network Essentials software license
- Enhanced Virtual Network (Enhanced VN) support
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- Advanced Layer 2 and essential Layer 3 switching
- 128 Gbps switching capacity
- 600W AC power supply with 370W PoE budget
- Cisco StackWise-160 stacking technology
- 4 GB DRAM and 4 GB Flash memory
- VLAN, QoS, ACL, IEEE 802.1X authentication, and enterprise-grade security
Technical Specifications
- Model: C9200-24PB-E
- Ethernet Ports: 24 × Gigabit Ethernet RJ-45 PoE+
- Uplink: Modular network module (optional 1G/10G/25G)
- PoE Support: Yes (PoE+)
- PoE Budget: 370W
- Power Supply: PWR-C6-600WAC
- Operating System: Cisco IOS XE
- License: Cisco Network Essentials (Enhanced VN)
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 128 Gbps
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-24PB-E 24-Port Gigabit PoE+ Managed Switch with Modular Uplink, Enhanced VN, Network Essentials |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 128 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 24 × 10/100/1000 Gigabit Ethernet PoE+ RJ-45 Ports, 1 × Modular Uplink Slot |
| Ethernet | 24 × 10/100/1000 Mbps Gigabit Ethernet PoE+ (Up to 30W per port) |
| I/O Port | 1 × Modular Uplink Slot (Supports optional 4×1G SFP, 4×10G SFP+, 8×10G SFP+, or 2×25G SFP28 Network Modules), 1 × RJ-45 Console Port, 1 × USB Mini-Type B Console Port, 1 × USB Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
