Cisco Catalyst C9200-24PXG-A 24-Port Multi-Gig PoE+ Managed Switch with Modular Uplink, Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-24PXG-A
The Cisco Catalyst C9200-24PXG-A is an ideal solution for organizations seeking a secure, high-performance Multi-Gigabit PoE+ switch with advanced Layer 3 capabilities, flexible modular uplinks, and enterprise-grade reliability. Its combination of Multi-Gig connectivity, Network Advantage licensing, and Cisco IOS XE software makes it a future-ready platform for demanding enterprise networks.
PRODUCT OVERVIEW

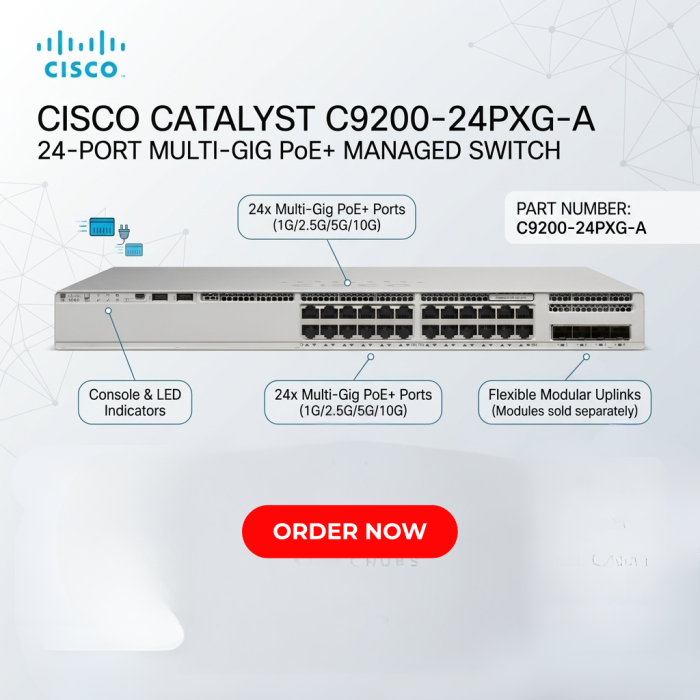

Cisco Catalyst C9200-24PXG-A 24-Port Multi-Gig PoE+ Managed Switch with Modular Uplink, Network Advantage
The Cisco Catalyst C9200-24PXG-A is an enterprise-class managed switch designed to deliver high-speed Multi-Gigabit connectivity, advanced security, and reliable Power over Ethernet (PoE+) for modern business networks. Featuring 24 Ethernet ports, including 8 Multi-Gig (100M/1G/2.5G/5G/10G) PoE+ ports and 16 Gigabit Ethernet PoE+ ports, this switch is optimized for bandwidth-intensive applications such as Wi-Fi 6/6E access points, IP surveillance systems, VoIP phones, and high-performance enterprise devices. The Network Advantage license enables advanced Layer 3 routing, enhanced security, automation, and policy-based networking for enterprise deployments.
Powered by Cisco IOS XE and built on Cisco's UADP 2.0 ASIC architecture, the C9200-24PXG-A delivers intelligent network automation, advanced security, and simplified management. It supports enterprise networking features including VLANs, Quality of Service (QoS), Access Control Lists (ACLs), MACsec encryption, Flexible NetFlow, and Software-Defined Access (SD-Access), helping organizations maintain secure and efficient network operations.
The switch includes 8 Multi-Gig PoE+ ports supporting speeds up to 10 Gbps and 16 Gigabit PoE+ ports, with up to 30W PoE+ output per port. It is equipped with a 600W AC power supply and a modular uplink slot supporting optional 4 × 10G SFP+ or 2 × 25G SFP28 network modules, allowing businesses to expand bandwidth while protecting long-term infrastructure investments.
With a 352 Gbps switching capacity, 4 GB DRAM, 4 GB Flash memory, and Cisco StackWise-160 stacking support, the C9200-24PXG-A offers exceptional performance, resiliency, and scalability. Multiple switches can operate as a single logical unit, simplifying administration while increasing network availability. Field-replaceable power supplies and cooling fans further enhance uptime in mission-critical enterprise environments.
Designed for enterprise campuses, healthcare organizations, educational institutions, retail environments, hospitality, and branch offices, the Cisco Catalyst C9200-24PXG-A provides the speed, flexibility, and security required to support today's high-density wired and wireless networks while preparing organizations for future growth.
Key Features
- 24 Ethernet ports with full PoE+ support
- 8 × Multi-Gig (100M/1G/2.5G/5G/10G) RJ-45 PoE+ ports
- 16 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports
- Modular uplink slot supporting 10G and 25G network modules
- Cisco Network Advantage software license
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- 352 Gbps switching capacity
- Cisco StackWise-160 stacking technology
- 600W AC power supply
- 4 GB DRAM and 4 GB Flash memory
- Advanced Layer 2 and Layer 3 routing
- VLAN, QoS, ACL, MACsec encryption, and Flexible NetFlow
- Ideal for Wi-Fi 6/6E, enterprise campus networks, IP surveillance, and VoIP deployments
Technical Specifications
- Model: C9200-24PXG-A
- Ethernet Ports: 24 × RJ-45 (8 × Multi-Gig PoE+, 16 × Gigabit PoE+)
- Uplink: Modular Network Module (Optional 4 × 10G SFP+ or 2 × 25G SFP28)
- PoE Support: Yes (PoE+)
- Power Supply: PWR-C6-600WAC
- Operating System: Cisco IOS XE
- License: Cisco Network Advantage
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 352 Gbps
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-24PXG-A 24-Port Multi-Gig PoE+ Managed Switch with Modular Uplink, Network Advantage |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 352 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 24 × RJ-45 Ports (8 × Multi-Gig 100M/1G/2.5G/5G/10G PoE+ Ports + 16 × 10/100/1000 Gigabit PoE+ Ports), 1 × Modular Uplink Slot |
| Ethernet | 8 × Multi-Gig Ethernet PoE+ (100 Mbps, 1G, 2.5G, 5G, 10G), 16 × Gigabit Ethernet PoE+ (10/100/1000 Mbps), Up to 30W PoE+ per port |
| I/O Port | 1 × Modular Uplink Slot (Supports optional 4×1G SFP, 4×10G SFP+, 8×10G SFP+, or 2×25G SFP28 Network Modules), 1 × RJ-45 Console Port, 1 × USB Mini-Type B Console Port, 1 × USB Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz (Multi-Gig), IEEE 802.3an (10GBASE-T), IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
