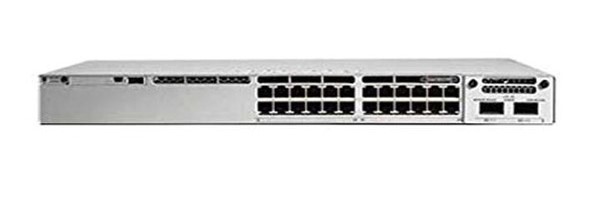

Cisco Catalyst C9200-24PXG-E 24-Port Multi-Gig PoE+ Managed Switch with Modular Uplink, Network Essentials
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-24PXG-E
The Cisco Catalyst C9200-24PXG-E is an ideal networking solution for organizations seeking enterprise-grade performance, Multi-Gigabit connectivity, flexible modular uplinks, and reliable PoE+ support. Its high-speed switching architecture, advanced security features, and scalable design make it a future-ready choice for modern business networks.
PRODUCT OVERVIEW
Cisco Catalyst C9200-24PXG-E 24-Port Multi-Gig PoE+ Managed Switch with Modular Uplink, Network Essentials
The Cisco Catalyst C9200-24PXG-E is a high-performance enterprise managed switch engineered for next-generation business networks requiring Multi-Gigabit connectivity, Power over Ethernet (PoE+), and advanced security. It features 24 Ethernet ports, including 8 Multi-Gig (100M/1G/2.5G/5G/10G) PoE+ ports and 16 Gigabit Ethernet PoE+ ports, making it ideal for supporting Wi-Fi 6/6E access points, IP cameras, VoIP phones, and other bandwidth-intensive devices. The switch includes the Cisco Network Essentials license, providing essential Layer 2 and Layer 3 networking capabilities for enterprise access deployments.
Powered by Cisco IOS XE and built on Cisco's UADP 2.0 ASIC architecture, the C9200-24PXG-E delivers exceptional network performance, security, and operational efficiency. It supports advanced networking features such as VLANs, Quality of Service (QoS), Access Control Lists (ACLs), IEEE 802.1X authentication, and intelligent traffic management, ensuring reliable connectivity for mission-critical business applications.
The switch is equipped with 8 Multi-Gig PoE+ ports capable of supporting speeds up to 10 Gbps, alongside 16 Gigabit PoE+ ports delivering up to 30W per port. A 600W AC power supply provides ample power for connected PoE devices, while the modular uplink slot supports optional 4 × 10G SFP+ or 2 × 25G SFP28 network modules, enabling high-speed uplinks and future network expansion.
Designed for enterprise scalability, the Cisco Catalyst C9200-24PXG-E supports Cisco StackWise-160 technology, allowing multiple switches to operate as a single logical unit for simplified management and enhanced resiliency. With a 352 Gbps switching capacity, 4 GB DRAM, and 4 GB Flash memory, it provides the performance required for high-density enterprise environments while maintaining secure and reliable network operations.
Ideal for enterprise campuses, branch offices, educational institutions, healthcare facilities, retail environments, and hospitality businesses, the Cisco Catalyst C9200-24PXG-E delivers the flexibility, speed, and reliability needed to support modern digital infrastructures.
Key Features
- 24 Ethernet ports with full PoE+ support
- 8 × Multi-Gig (100M/1G/2.5G/5G/10G) RJ-45 PoE+ ports
- 16 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports
- Modular uplink slot supporting 10G and 25G network modules
- Cisco Network Essentials software license
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- 352 Gbps switching capacity
- Cisco StackWise-160 stacking technology
- 600W AC power supply
- 4 GB DRAM and 4 GB Flash memory
- Advanced Layer 2 and Layer 3 networking
- VLAN, QoS, ACL, IEEE 802.1X authentication, and enterprise-grade security
- Ideal for Wi-Fi 6/6E deployments, IP surveillance, VoIP, and enterprise campus networks
Technical Specifications
- Model: C9200-24PXG-E
- Ethernet Ports: 24 × RJ-45 (8 × Multi-Gig PoE+, 16 × Gigabit PoE+)
- Uplink: Modular Network Module (Optional 4 × 10G SFP+ or 2 × 25G SFP28)
- PoE Support: Yes (PoE+)
- Power Supply: PWR-C6-600WAC
- Operating System: Cisco IOS XE
- License: Cisco Network Essentials
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 352 Gbps
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-24PXG-E 24-Port Multi-Gig PoE+ Managed Switch with Modular Uplink, Network Essentials |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 128 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 24 × RJ-45 Ports (8 × Multi-Gig 100M/1G/2.5G/5G/10G PoE+ ports + 16 × 10/100/1000 Gigabit PoE+ ports), 1 × Modular Uplink Slot |
| Ethernet | 8 × Multi-Gig Ethernet PoE+ (up to 10 Gbps), 16 × Gigabit Ethernet PoE+ (up to 1 Gbps), Up to 30W PoE+ per port |
| I/O Port | 1 × Modular Uplink Slot (Supports 4×10G SFP+ or 2×25G SFP28 Network Modules), 1 × RJ-45 Console Port, 1 × USB Mini-Type B Console Port, 1 × USB Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz (Multi-Gig), IEEE 802.3an (10GBASE-T), IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
