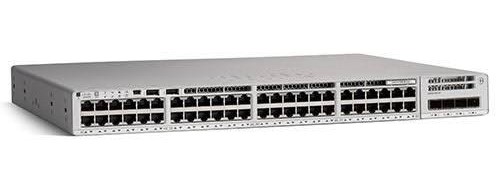

Cisco Catalyst C9200-48P-A 48-Port Gigabit PoE+ Switch with Modular Uplink and Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-48P-E
The Cisco Catalyst C9200-48P-A combines enterprise-grade Layer 3 routing, robust PoE+ capabilities, advanced security, and flexible modular uplinks to deliver a powerful, scalable, and future-ready networking solution for demanding enterprise environments.
PRODUCT OVERVIEW
Cisco Catalyst C9200-48P-E 48-Port Gigabit PoE+ Managed Switch with Modular Uplink, Network Essentials
The Cisco Catalyst C9200-48P-A is an enterprise-class Layer 3 managed switch designed to provide secure, scalable, and high-performance networking for modern business environments. Featuring 48 Gigabit Ethernet PoE+ ports and a modular uplink slot, this switch delivers reliable wired connectivity while powering IP phones, wireless access points, IP cameras, and other PoE-enabled devices. Equipped with the Cisco Network Advantage software license, it offers advanced Layer 3 routing, enterprise-grade security, automation, and intelligent network management, making it ideal for enterprise campuses, branch offices, healthcare, education, government, and commercial organizations.
The switch is equipped with 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, delivering up to 30W of power per port for compatible network devices. A 1000W AC power supply (PWR-C6-1KWAC) provides a high PoE budget suitable for dense enterprise deployments. The modular uplink slot supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, or 2 × 25G SFP28 network modules, allowing organizations to increase uplink bandwidth as network demands grow.
Designed for maximum reliability, the Cisco Catalyst C9200-48P-A supports Cisco StackWise-160 technology, enabling multiple switches to operate as a single logical unit for simplified management and enhanced resiliency. Field-replaceable redundant power supplies and fan modules help maximize uptime while minimizing maintenance requirements.
With a 176 Gbps switching capacity, 130.95 Mpps forwarding rate, 4 GB DRAM, and 4 GB Flash memory, the Cisco Catalyst C9200-48P-A delivers enterprise-grade performance and scalability. Its advanced Layer 3 functionality, comprehensive security features, and flexible expansion options make it an excellent solution for organizations building secure, future-ready network infrastructures.
Key Features
- 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ RJ-45 ports
- Advanced Layer 3 managed switch
- Cisco Network Advantage software license
- Modular uplink slot supporting optional 1G, 10G, and 25G network modules
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- 176 Gbps switching capacity
- 130.95 Mpps forwarding rate
- Up to 30W PoE+ per port
- Cisco StackWise-160 stacking technology
- 1000W AC power supply
- 4 GB DRAM and 4 GB Flash memory
- VLAN, QoS, ACL, MACsec encryption, Flexible NetFlow, and SD-Access support
- Ideal for enterprise campus, branch office, healthcare, education, retail, and government networks
Technical Specifications
- Model: C9200-48P-A
- Ethernet Ports: 48 × Gigabit Ethernet RJ-45 PoE+
- Uplink: Modular Network Module (Optional 1G/10G/25G)
- PoE Support: Yes (PoE+)
- Power Supply: PWR-C6-1KWAC
- Operating System: Cisco IOS XE
- License: Cisco Network Advantage
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-48P-A 48-Port Gigabit PoE+ Switch with Modular Uplink and Network Advantage |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 176 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 48 × 10/100/1000 Gigabit Ethernet PoE+ RJ-45 Ports, 1 × Modular Uplink Slot |
| Ethernet | 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ (Up to 30W per port) |
| I/O Port | 1 × Modular Uplink Slot (Supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, or 2 × 25G SFP28 Network Modules), 1 × RJ-45 Console Port, 1 × USB Mini-Type B Console Port, 1 × USB Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
