Cisco Catalyst C9200-48P-E 48-Port PoE+ Gigabit Ethernet Layer 3 Managed Switch, Network Essentials
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-48P-E
The Cisco Catalyst C9200-48P-E combines enterprise-grade performance, full PoE+ capability, modular uplink flexibility, and Cisco's trusted IOS XE platform to deliver a secure, scalable, and future-ready networking solution for demanding business environments.
PRODUCT OVERVIEW

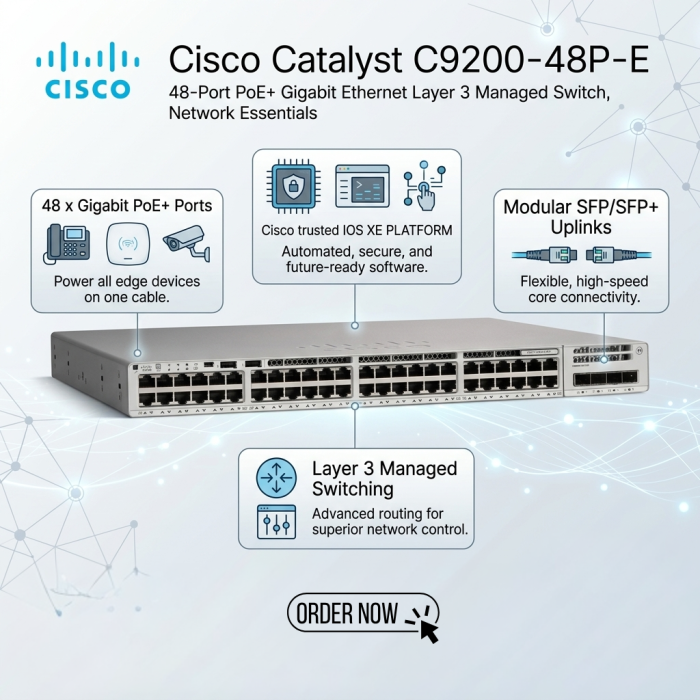

Cisco Catalyst C9200-48P-E 48-Port Gigabit PoE+ Managed Switch with Modular Uplink, Network Essentials
The Cisco Catalyst C9200-48P-E is a high-performance enterprise-class managed switch designed to provide secure, scalable, and reliable network connectivity for modern business environments. Featuring 48 Gigabit Ethernet PoE+ ports and a modular uplink slot, this switch enables organizations to power IP phones, wireless access points, IP cameras, and other PoE-enabled devices while delivering high-speed data connectivity across enterprise networks. The switch includes the Cisco Network Essentials software license, offering essential Layer 2 and Layer 3 networking features for campus, branch, and commercial deployments.
The switch is equipped with 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, delivering up to 30W of power per port to connected devices. It comes with a 1000W AC power supply (PWR-C6-1KWAC), providing a generous PoE power budget for high-density deployments. The modular uplink slot supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, or 2 × 25G SFP28 network modules, enabling organizations to expand network bandwidth and protect their infrastructure investment as business needs evolve.
For enhanced availability and simplified administration, the Cisco Catalyst C9200-48P-E supports Cisco StackWise-160 technology, allowing multiple switches to operate as a single logical unit with 160 Gbps stacking bandwidth. Field-replaceable redundant power supplies and fan modules improve network resiliency, reduce maintenance time, and maximize uptime in mission-critical enterprise environments.
With a 176 Gbps switching capacity, 130.95 Mpps forwarding rate, 4 GB DRAM, and 4 GB Flash memory, the Cisco Catalyst C9200-48P-E delivers enterprise-grade performance, flexibility, and security. It is an ideal networking solution for enterprise campuses, branch offices, educational institutions, healthcare facilities, retail stores, hospitality, and government organizations requiring dependable PoE+ connectivity and scalable infrastructure.
Key Features
- 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ RJ-45 ports
- Modular uplink slot supporting optional 1G, 10G, and 25G network modules
- Cisco Network Essentials software license
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- Advanced Layer 2 and essential Layer 3 switching
- 176 Gbps switching capacity
- 130.95 Mpps forwarding rate
- Cisco StackWise-160 stacking technology
- 1000W AC power supply
- 4 GB DRAM and 4 GB Flash memory
- VLAN, QoS, ACL, IEEE 802.1X authentication, and enterprise-grade security
- Ideal for Wi-Fi deployments, IP telephony, surveillance systems, and enterprise campus networks
Technical Specifications
- Model: C9200-48P-E
- Ethernet Ports: 48 × Gigabit Ethernet RJ-45 PoE+
- Uplink: Modular Network Module (Optional 1G/10G/25G)
- PoE Support: Yes (PoE+)
- Power Supply: PWR-C6-1KWAC
- Operating System: Cisco IOS XE
- License: Cisco Network Essentials
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-48P-E 48-Port PoE+ Gigabit Ethernet Layer 3 Managed Switch, Network Essentials |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 176 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 48 × 10/100/1000 Gigabit Ethernet PoE+ RJ-45 Ports, 1 × Modular Uplink Slot |
| Ethernet | 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ (Up to 30W per port) |
| I/O Port | 1 × Modular Uplink Slot (Supports optional 4×1G SFP, 4×10G SFP+, 8×10G SFP+, or 2×25G SFP28 Network Modules), 1 × RJ-45 Console Port, 1 × USB Mini-Type B Console Port, 1 × USB Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
