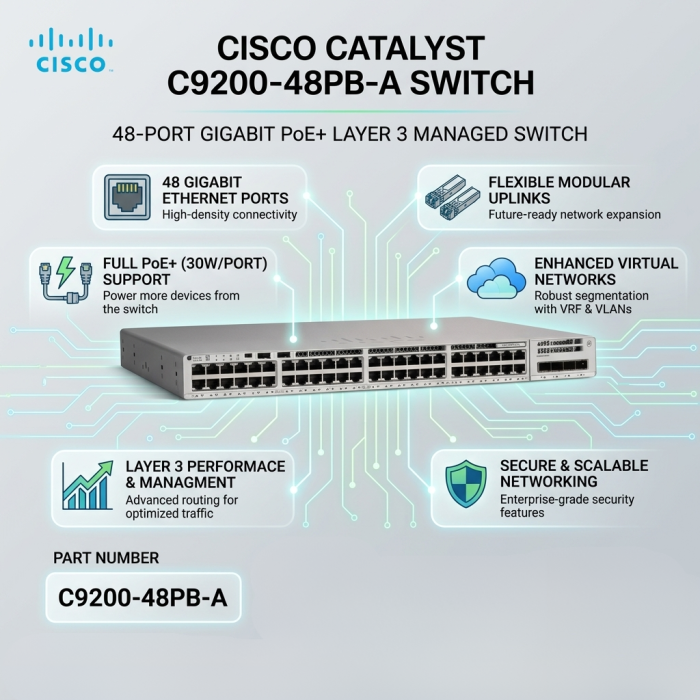

Cisco Catalyst C9200-48PB-A 48-Port Gigabit PoE+ Layer 3 Managed Switch, Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-48PB-A
The Cisco Catalyst C9200-48PB-A combines enterprise-grade Layer 3 performance, full PoE+ functionality, Enhanced Virtual Network support, and flexible modular uplinks to deliver a secure, scalable, and future-ready networking solution for demanding enterprise environments.
PRODUCT OVERVIEW
Cisco Catalyst C9200-48PB-A 48-Port Gigabit PoE+ Layer 3 Managed Switch, Network Advantage, Enhanced Virtual Networks
The Cisco Catalyst C9200-48PB-A is a next-generation enterprise managed switch designed to deliver exceptional performance, advanced security, and intelligent network automation for modern business environments. Featuring 48 Gigabit Ethernet PoE+ ports and a modular uplink slot, the switch provides high-speed connectivity while powering wireless access points, IP phones, IP cameras, and other PoE-enabled devices. Equipped with the Cisco Network Advantage license and Enhanced Virtual Networks (Enhanced VN) support, it is ideal for enterprise campuses, branch offices, healthcare, education, retail, hospitality, and government organizations.
The switch includes 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, delivering up to 30W of power per port for connected devices. A 1000W AC power supply provides a high PoE budget, making it suitable for dense deployments of wireless access points, surveillance cameras, VoIP phones, and IoT devices. The modular uplink slot supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, and 2 × 25G SFP28 network modules, allowing organizations to expand bandwidth as network requirements continue to grow.
The Enhanced Virtual Networks (Enhanced VN) capability enables secure network segmentation and supports up to 32 Virtual Networks for Cisco SD-Access deployments. Combined with Cisco StackWise-160 technology, multiple switches can operate as a single logical unit with 160 Gbps stacking bandwidth, simplifying management while improving network resiliency and availability.
With a 176 Gbps switching capacity, 130.95 Mpps forwarding rate, 4 GB DRAM, and 4 GB Flash memory, the Cisco Catalyst C9200-48PB-A provides the performance and scalability required for mission-critical enterprise applications. Its advanced Layer 3 routing, enterprise-grade security, flexible modular uplinks, and robust PoE+ capabilities make it an ideal networking solution for organizations planning future-ready digital infrastructures.
Key Features
- 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports
- Cisco Network Advantage software license
- Enhanced Virtual Networks (Enhanced VN) support
- Advanced Layer 3 routing and enterprise switching
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- 176 Gbps switching capacity
- 130.95 Mpps forwarding rate
- Up to 30W PoE+ output per port
- Modular uplink slot supporting optional 1G, 10G, and 25G network modules
- Cisco StackWise-160 stacking technology
- 1000W AC power supply
- 4 GB DRAM and 4 GB Flash memory
- VLAN, QoS, ACL, MACsec encryption, IEEE 802.1X, Flexible NetFlow, and SD-Access support
- Ideal for enterprise campuses, branch offices, healthcare, education, retail, hospitality, and government networks
Technical Specifications
- Model: C9200-48PB-A
- Ethernet Ports: 48 × Gigabit Ethernet RJ-45 PoE+
- Uplink: Modular Network Module (Optional 1G/10G/25G)
- PoE Support: Yes (PoE+)
- Power Supply: PWR-C6-1KWAC
- Operating System: Cisco IOS XE
- License: Cisco Network Advantage (Enhanced VN)
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-48PB-A 48-Port Gigabit PoE+ Layer 3 Managed Switch, Network Advantage |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 176 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 48 × 10/100/1000 Gigabit Ethernet PoE+ RJ-45 Ports, 1 × Modular Uplink Slot |
| Ethernet | 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ (IEEE 802.3af/at, up to 30W per port) |
| I/O Port | 1 × Modular Uplink Slot (Supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, or 2 × 25G SFP28 Network Modules), 1 × RJ-45 Console Port, 1 × USB Mini-Type B Console Port, 1 × USB Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, IPv4/IPv6, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
