Cisco Catalyst C9200-48PXG-A 48-Port Multi-Gig PoE+ Network Switch, Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-48PXG-A
The Cisco Catalyst C9200-48PXG-A delivers enterprise-grade Multi-Gigabit performance, advanced Layer 3 capabilities, flexible modular uplinks, and robust PoE+ support, making it an ideal choice for organizations building secure, scalable, and future-ready network infrastructures.
PRODUCT OVERVIEW

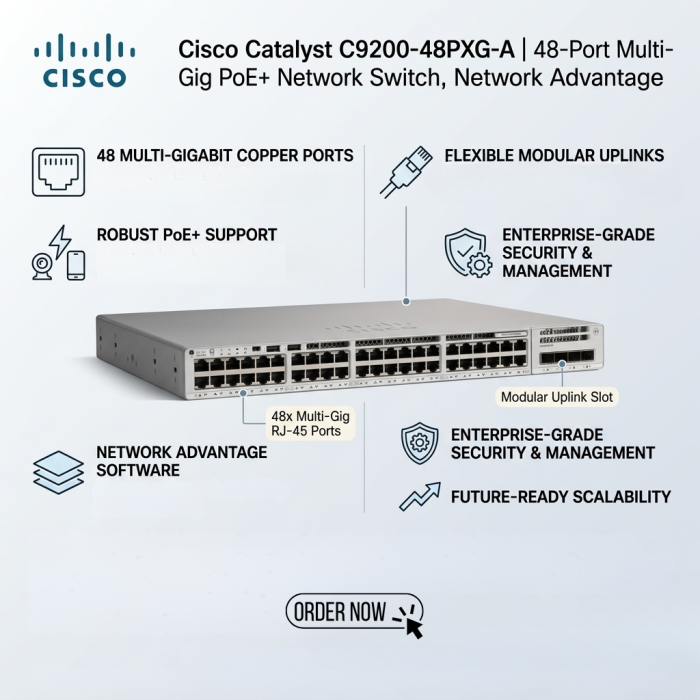

Cisco Catalyst C9200-48PXG-A 48-Port Multi-Gig PoE+ Layer 3 Managed Switch with Network Advantage
The Cisco Catalyst C9200-48PXG-A is a high-performance enterprise-class managed switch engineered for organizations that require secure, scalable, and high-speed network connectivity. Designed for next-generation business environments, it features 48 Ethernet ports, including 16 Multi-Gig (100M/1G/2.5G/5G/10G) PoE+ ports and 32 Gigabit Ethernet PoE+ ports, making it ideal for Wi-Fi 6/6E access points, IP cameras, VoIP phones, and other high-bandwidth network devices. Equipped with the Cisco Network Advantage license, it delivers advanced Layer 3 routing, automation, and enterprise-grade security for modern campus and branch networks.
The switch includes 16 Multi-Gig PoE+ ports capable of delivering speeds up to 10 Gbps and 32 Gigabit PoE+ ports, providing up to 30W of power per port for connected devices. A 1000W AC power supply supplies ample PoE power for dense enterprise deployments. The modular uplink slot supports optional 1G, 10G, and 25G network modules, allowing organizations to expand uplink bandwidth and adapt their infrastructure as networking requirements evolve.
Designed for maximum resiliency, the Cisco Catalyst C9200-48PXG-A supports Cisco StackWise-160 technology, enabling multiple switches to function as a single logical unit with 160 Gbps stacking bandwidth. With a 416 Gbps switching capacity, 309.52 Mpps forwarding rate, 4 GB DRAM, and 4 GB Flash memory, the switch delivers the performance, scalability, and reliability required for mission-critical enterprise applications.
The Cisco Catalyst C9200-48PXG-A is an ideal networking solution for enterprise campuses, educational institutions, healthcare facilities, retail businesses, hospitality environments, government organizations, and branch offices. Its combination of Multi-Gigabit connectivity, full PoE+ support, advanced Layer 3 networking, and flexible modular uplinks makes it a future-ready platform for growing enterprise infrastructures.
Key Features
- 48 Ethernet ports with full PoE+ support
- 16 × Multi-Gig (100M/1G/2.5G/5G/10G) PoE+ RJ-45 ports
- 32 × 10/100/1000 Gigabit Ethernet PoE+ RJ-45 ports
- Cisco Network Advantage software license
- Advanced Layer 3 routing and enterprise switching
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- 416 Gbps switching capacity
- 309.52 Mpps forwarding rate
- Modular uplink slot supporting optional 1G, 10G, and 25G network modules
- Cisco StackWise-160 stacking technology
- 1000W AC power supply
- 4 GB DRAM and 4 GB Flash memory
- Enterprise security with VLAN, QoS, ACL, MACsec, IEEE 802.1X, and IPv4/IPv6 routing
- Ideal for Wi-Fi 6/6E, enterprise campuses, IP surveillance, VoIP, and high-density business networks
Technical Specifications
- Model: C9200-48PXG-A
- Ethernet Ports: 48 × RJ-45 (16 × Multi-Gig PoE+, 32 × Gigabit PoE+)
- Uplink: Modular Network Module (Optional 1G/10G/25G)
- PoE Support: Yes (PoE+)
- Power Supply: PWR-C6-1KWAC
- Operating System: Cisco IOS XE
- License: Cisco Network Advantage
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 416 Gbps
- Forwarding Rate: 309.52 Mpps
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-48PXG-A 48-Port Multi-Gig PoE+ Network Switch, Network Advantage |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 416 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 48 × RJ-45 Ports (16 × Multi-Gig 100M/1G/2.5G/5G/10G PoE+ Ports + 32 × 10/100/1000 Gigabit PoE+ Ports), 1 × Modular Uplink Slot |
| Ethernet | 16 × Multi-Gig Ethernet PoE+ (100 Mbps, 1G, 2.5G, 5G, 10G), 32 × Gigabit Ethernet PoE+ (10/100/1000 Mbps), Up to 30W PoE+ per port |
| I/O Port | 1 × Modular Uplink Slot (Supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, or 2 × 25G SFP28 Network Modules), 1 × RJ-45 Console Port, 1 × USB Mini-Type B Console Port, 1 × USB Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
