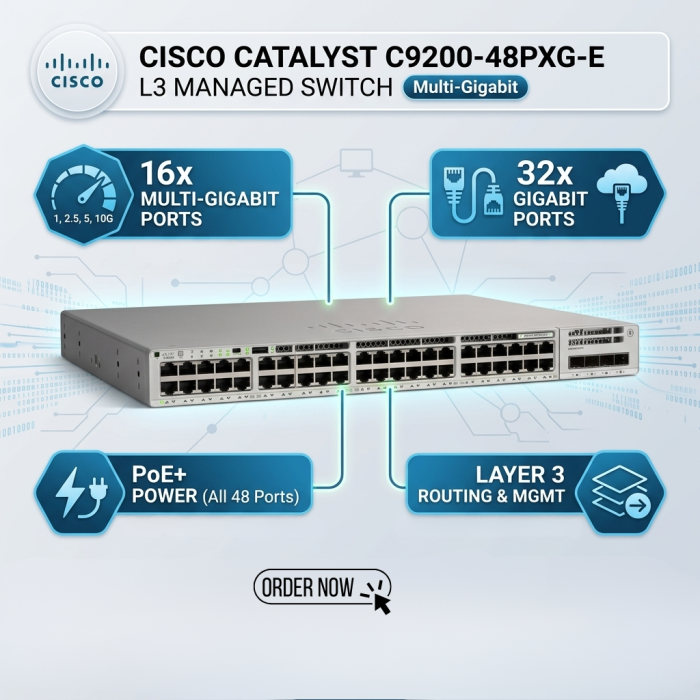

Cisco Catalyst C9200-48PXG-E Layer 3 Managed Switch, 16 Multi-Gig & 32 Gigabit PoE+ Ports
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-48PXG-E
The Cisco Catalyst C9200-48PXG-E combines enterprise-class Multi-Gigabit performance, robust PoE+ capabilities, advanced Layer 3 networking, and flexible modular uplinks to deliver a secure, scalable, and future-ready switching solution for today's demanding business environments.
PRODUCT OVERVIEW
Cisco Catalyst C9200-48PXG-E 48-Port Multi-Gig PoE+ Layer 3 Managed Switch, Network Essentials
The Cisco Catalyst C9200-48PXG-E is a high-performance enterprise managed switch designed to support modern digital workplaces with high-speed Multi-Gigabit connectivity, advanced security, and reliable Power over Ethernet Plus (PoE+). Featuring 48 Ethernet ports, including 16 Multi-Gig (100M/1G/2.5G/5G/10G) PoE+ ports and 32 Gigabit Ethernet PoE+ ports, this switch provides exceptional performance for bandwidth-intensive applications such as Wi-Fi 6/6E access points, IP telephony, surveillance systems, and IoT devices. With the Cisco Network Essentials license, it delivers essential Layer 2 and Layer 3 capabilities for enterprise campus and branch office deployments.
Powered by Cisco IOS XE and Cisco's advanced UADP 2.0 ASIC, the C9200-48PXG-E offers enterprise-grade security, simplified automation, and intelligent network management. It supports advanced networking technologies including VLANs, Quality of Service (QoS), Access Control Lists (ACLs), IEEE 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, and IPv4/IPv6 routing, ensuring secure and optimized network performance for business-critical applications.
The switch includes 16 Multi-Gig PoE+ ports supporting speeds up to 10 Gbps and 32 Gigabit PoE+ ports, delivering up to 30W of power per port for compatible devices. A 1000W AC power supply provides a generous PoE budget for high-density deployments, while the modular uplink slot supports optional 1G, 10G, and 25G network modules, allowing organizations to scale network bandwidth as infrastructure requirements grow.
Designed for maximum reliability, the Cisco Catalyst C9200-48PXG-E supports Cisco StackWise-160 technology, enabling multiple switches to operate as a single logical unit with 160 Gbps stacking bandwidth. With a 416 Gbps switching capacity, 309.52 Mpps forwarding rate, 4 GB DRAM, and 4 GB Flash memory, the switch delivers the performance, resiliency, and scalability required for demanding enterprise environments.
Key Features
- 48 Ethernet ports with full PoE+ support
- 16 × Multi-Gig (100M/1G/2.5G/5G/10G) PoE+ RJ-45 ports
- 32 × 10/100/1000 Gigabit Ethernet PoE+ RJ-45 ports
- Cisco Network Essentials software license
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- 416 Gbps switching capacity
- 309.52 Mpps forwarding rate
- Modular uplink slot supporting optional 1G, 10G, and 25G network modules
- Cisco StackWise-160 stacking technology
- 1000W AC power supply
- 4 GB DRAM and 4 GB Flash memory
- Advanced Layer 2 and Layer 3 networking
- Enterprise security with VLAN, QoS, ACL, IEEE 802.1X, DHCP Snooping, and IPv4/IPv6 routing
Technical Specifications
- Model: C9200-48PXG-E
- Ethernet Ports: 48 × RJ-45 (16 × Multi-Gig PoE+, 32 × Gigabit PoE+)
- Uplink: Modular Network Module (Optional 1G/10G/25G)
- PoE Support: Yes (PoE+)
- Power Supply: PWR-C6-1KWAC
- Operating System: Cisco IOS XE
- License: Cisco Network Essentials
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 416 Gbps
- Forwarding Rate: 309.52 Mpps
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-48PXG-E Layer 3 Managed Switch, 16 Multi-Gig & 32 Gigabit PoE+ Ports |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 416 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 48 × RJ-45 Ports (16 × Multi-Gig 100M/1G/2.5G/5G/10G PoE+ Ports + 32 × 10/100/1000 Gigabit PoE+ Ports), 1 × Modular Uplink Slot |
| Ethernet | 16 × Multi-Gig Ethernet PoE+ (100 Mbps, 1G, 2.5G, 5G, 10G), 32 × Gigabit Ethernet PoE+ (10/100/1000 Mbps), Up to 30W PoE+ per port |
| I/O Port | 1 × Modular Uplink Slot (Supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, or 2 × 25G SFP28 Network Modules), 1 × RJ-45 Console Port, 1 × USB Mini-Type B Console Port, 1 × USB Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
