Cisco Catalyst C9200-48T-A 48-Port Gigabit Ethernet Managed Switch with Modular Uplink, Network Advantage
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-48T-A
The Cisco Catalyst C9200-48T-A is an ideal choice for organizations seeking a secure, scalable, and high-performance managed switch with advanced Layer 3 capabilities, modular uplink flexibility, and Cisco's proven enterprise networking technologies. Its Network Advantage licensing and Cisco IOS XE platform provide the intelligence, automation, and reliability needed to support today's evolving business networks.
PRODUCT OVERVIEW

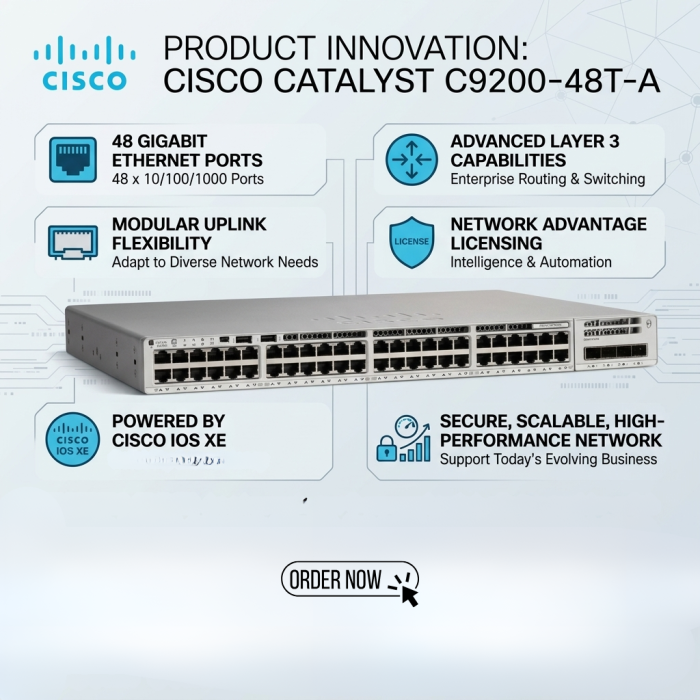

Cisco Catalyst C9200-48T-A 48-Port Gigabit Ethernet Managed Switch with Modular Uplink, Network Advantage
The Cisco Catalyst C9200-48T-A is a high-performance enterprise-class managed switch designed to provide secure, scalable, and reliable wired networking for modern business environments. Featuring 48 Gigabit Ethernet RJ-45 data ports and a modular uplink slot, this switch delivers high-speed connectivity for enterprise access networks while allowing flexible expansion with optional uplink modules. Equipped with the Cisco Network Advantage software license, it offers advanced Layer 2 and Layer 3 capabilities, making it an ideal solution for enterprise campuses, branch offices, government organizations, healthcare facilities, educational institutions, and commercial networks.
The switch includes 48 × 10/100/1000 Mbps Gigabit Ethernet ports for connecting desktops, servers, storage systems, printers, and other network devices. Its modular uplink slot supports optional 4 × 1G SFP, 4 × 10G SFP+, 8 × 10G SFP+, or 2 × 25G SFP28 network modules, enabling organizations to increase uplink bandwidth and adapt to future networking requirements without replacing existing hardware.
Designed for maximum availability, the Cisco Catalyst C9200-48T-A supports Cisco StackWise-160 technology, allowing multiple switches to operate as a single logical unit with 160 Gbps stacking bandwidth. Field-replaceable redundant power supplies and fan modules improve system resiliency, simplify maintenance, and minimize downtime in mission-critical deployments.
With a 176 Gbps switching capacity, 130.95 Mpps forwarding rate, 4 GB DRAM, and 4 GB Flash memory, the Cisco Catalyst C9200-48T-A delivers outstanding performance, security, and scalability for enterprise access networks. Its advanced software capabilities and modular architecture make it a future-ready networking solution for organizations requiring high-density Gigabit Ethernet connectivity and advanced routing features.
Key Features
- 48 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 data ports
- Modular uplink slot supporting optional 1G, 10G, and 25G network modules
- Cisco Network Advantage software license
- Cisco IOS XE operating system
- Cisco UADP 2.0 ASIC architecture
- Advanced Layer 2 and Layer 3 switching and routing
- 176 Gbps switching capacity
- 130.95 Mpps forwarding rate
- Cisco StackWise-160 stacking technology
- 4 GB DRAM and 4 GB Flash memory
- Advanced VLAN, QoS, ACL, MACsec encryption, and Flexible NetFlow
- Field-replaceable redundant power supplies and fan modules
- Ideal for enterprise campuses, branch offices, government, education, healthcare, and commercial LAN deployments
Technical Specifications
- Model: C9200-48T-A
- Ethernet Ports: 48 × Gigabit Ethernet RJ-45 (Non-PoE)
- Uplink: Modular Network Module (Optional 1G/10G/25G)
- PoE Support: No
- Operating System: Cisco IOS XE
- License: Cisco Network Advantage
- CPU: Cisco UADP 2.0 ASIC
- Memory: 4 GB DRAM
- Flash Memory: 4 GB
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- Power Supply: PWR-C6-125WAC
- Stacking: Cisco StackWise-160
| Product Name | Cisco Catalyst C9200-48T-A 48-Port Gigabit Ethernet Managed Switch with Modular Uplink, Network Advantage |
|---|---|
| Weight | 4.300000 |
| Switching Capacity | 176 Gbps |
| Memory | 4 GB DRAM and 4 GB Flash memory. |
| Interface | 48 × 10/100/1000 Gigabit Ethernet RJ-45 Ports, 1 × Modular Uplink Slot |
| Ethernet | 48 × 10/100/1000 Mbps Gigabit Ethernet (Non-PoE) |
| I/O Port | 1 × Modular Uplink Slot (Supports optional 4×1G SFP, 4×10G SFP+, 8×10G SFP+, or 2×25G SFP28 Network Modules), 1 × RJ-45 Console Port, 1 × USB Mini-Type B Console Port, 1 × USB Type-A Port, 1 × RJ-45 Management Port |
| Operating System | Cisco IOS XE |
| Cpu | Cisco UADP 2.0 Min |
| Network/Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN, IEEE 802.1p, IEEE 802.1X, Layer 2 & Layer 3 Switching |
| Dimensions | (4.4 x 44.5 x 32.9cm) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Power Supply (PoE) | PWR-C5-125WAC |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
