Cisco Catalyst C9200-NM-2Y 2-Port 25G SFP28 Network Module for Catalyst 9200 Multigigabit Series Switches
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco Catalyst C9200-NM-2Y
The Cisco Catalyst C9200-NM-2Y is a high-performance uplink network module designed to expand the connectivity of Cisco Catalyst 9200 Multigigabit Series switches. It features two 25 Gigabit Ethernet SFP28 ports, delivering ultra-fast fiber uplinks for enterprise campus, branch office, and high-bandwidth network deployments. Each port supports 1G SFP, 10G SFP+, and 25G SFP28 transceivers, providing flexible migration paths as network requirements grow.
PRODUCT OVERVIEW
Cisco Catalyst C9200-NM-2Y 2-Port 25G SFP28 Network Module for Catalyst 9200 Multigigabit Series Switches

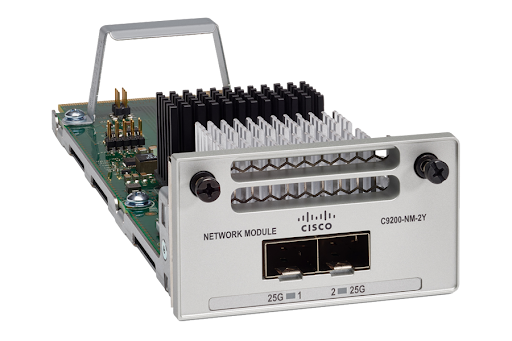

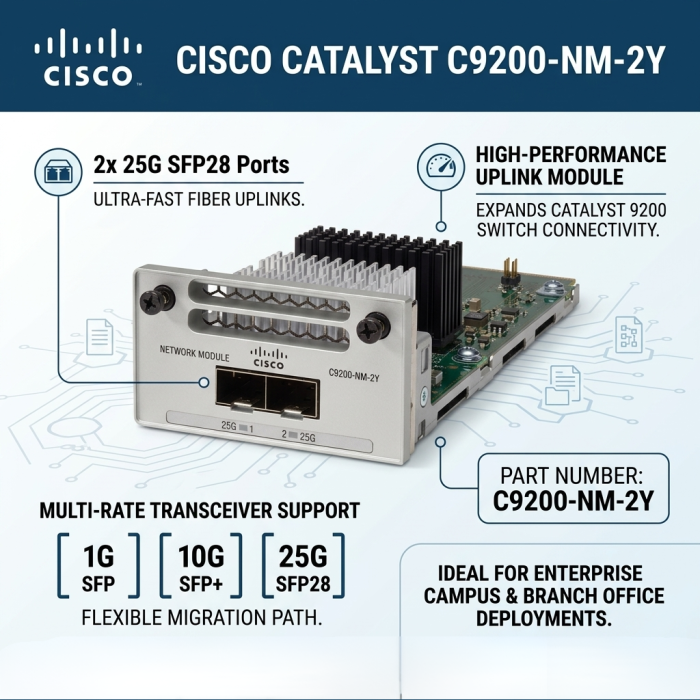

The Cisco Catalyst C9200-NM-2Y is a high-performance uplink network module designed to expand the connectivity of Cisco Catalyst 9200 Multigigabit Series switches. It features two 25 Gigabit Ethernet SFP28 ports, delivering ultra-fast fiber uplinks for enterprise campus, branch office, and high-bandwidth network deployments. Each port supports 1G SFP, 10G SFP+, and 25G SFP28 transceivers, providing flexible migration paths as network requirements grow.
The module is hot-swappable, allowing installation or replacement without powering down the host switch, minimizing downtime and simplifying maintenance. Built for modern enterprise infrastructures, it enables seamless connectivity to aggregation, distribution, and core network layers while protecting existing infrastructure investments.
Designed to operate with Cisco IOS XE, the C9200-NM-2Y integrates seamlessly with Cisco Catalyst 9200 Multigigabit switches and delivers reliable, secure, and high-speed network performance. It is ideal for bandwidth-intensive applications such as Wi-Fi 6/6E, virtualization, cloud services, data center edge connectivity, and high-performance enterprise networks.
The Cisco Catalyst C9200-NM-2Y is supported only on Cisco Catalyst 9200 Multigigabit switch models, including the C9200-24PXG and C9200-48PXG series. Its flexible support for 1G, 10G, and 25G optics makes it a future-ready solution for organizations upgrading to higher-speed network backbones.
Key Features
- 2 × 25 Gigabit Ethernet SFP28 uplink ports
- Supports 1G SFP, 10G SFP+, and 25G SFP28 transceivers
- Hot-swappable, field-replaceable design
- Compatible with Cisco Catalyst 9200 Multigigabit Series switches
- Cisco IOS XE support
- High-speed fiber uplink connectivity
- Ideal for enterprise campus, branch office, and data center edge deployments
- Supported only on C9200-24PXG and C9200-48PXG switch models
Technical Specifications
- Model: C9200-NM-2Y
- Port Configuration: 2 × 25G SFP28
- Interface: SFP/SFP+/SFP28 Fiber
- Operating System: Cisco IOS XE (Host Switch)
- Hot Swappable: Yes
- Network Standard: IEEE 802.3z, IEEE 802.3ae, IEEE 802.3by
- Compatible Switches: Cisco Catalyst C9200-24PXG and C9200-48PXG Multigigabit Series
| Product Name | Cisco Catalyst C9200-NM-2Y 2-Port 25G SFP28 Network Module for Catalyst 9200 Multigigabit Series Switches |
|---|---|
| Weight | 0.270000 |
| CPU | N/A (Passive Network Expansion Module) |
| Switching Capacity | Depends on the host Cisco Catalyst 9200 Multigigabit Switch |
| Memory | N/A |
| Interface | 2 × 25 Gigabit Ethernet SFP28 Uplink Ports |
| Ethernet | 2 × 1G/10G/25G SFP/SFP+/SFP28 Fiber Ports |
| I/O Port | 2 × SFP28 (1G/10G/25G) Uplink Ports |
| Operating System | Supported by Cisco IOS XE (Host Switch) |
| Network/Network Standard | IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3by 25 Gigabit Ethernet |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
Product Datasheet
