PRODUCT OVERVIEW

Extend Intent-Based Networking Everywhere

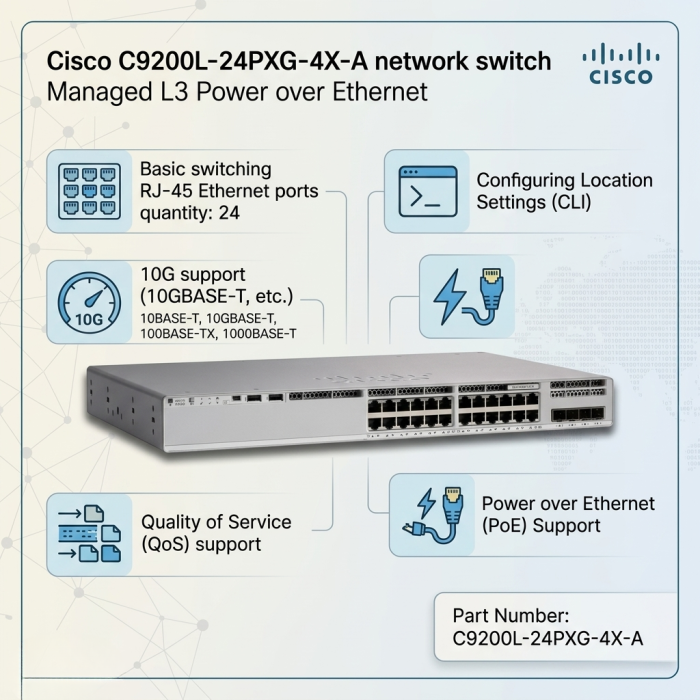

C9200L-24PXG-4X-A is a robust, enterprise-class access switch engineered with an advanced modular architecture that delivers high performance and scalability. Designed to support both Layer 2 and Layer 3 operations, it comes equipped with 24 PoE+ capable 10/100/1000 Ethernet ports and 4×10G SFP+ uplink ports, ensuring optimal connectivity for demanding network environments.

Performance

The Catalyst 9200L-24P-4X features 512MB of memory and is designed to deliver smooth and reliable data transfers with a 128 Gb/s switching capacity and 95.23 Mpps forwarding rate. When stacked with Cisco StackWise-compatible switches, the bandwidth increases to 208 Gb/s with a 155 Mpps forwarding rate.

• IP unicast routing protocols (including static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and Open Shortest Path First [OSPF], Routed Access) are supported for small network routing applications with the Network Essentials stack.
• Advanced IP unicast routing protocols, including Full (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), and Intermediate System-to-Intermediate System Version 4 (IS-ISv4) are supported for load balancing and for constructing scalable LANs. IPv6 routing with OSPFv3 and EIGRPv6 is supported for maximum performance.
• Protocol-Independent Multicast (PIM) for IP multicast routing is supported, including PIM sparse mode (PIM SM), and Source-Specific Multicast (SSM).
• IPv6 addressing support on interfaces with appropriate show commands for monitoring and troubleshooting.

Automated device provisioning automates software upgrades and installing configuration files.API-driven configuration is available with support for a wide range of automation features.Granular visibility enables model-driven telemetry to stream data from a switch to a destination.Cross-stack EtherChannel allows you to configure Cisco EtherChannel technology across different members of the stack for high resiliency.IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) provides rapid spanning tree convergence independent of spanning tree timers and also offers the benefit of Layer 2 load balancing and distributed processing.Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning tree (IEEE 802.1w) reconvergence on a per-VLAN spanning tree basis, providing simpler configuration than MSTP. In both MSTP and PVRST+ modes, stacked units behave as a single spanning tree node.Switch-port auto-recovery ("err-disable" recovery) automatically attempts to reactivate a link that is disabled because of a network error.
