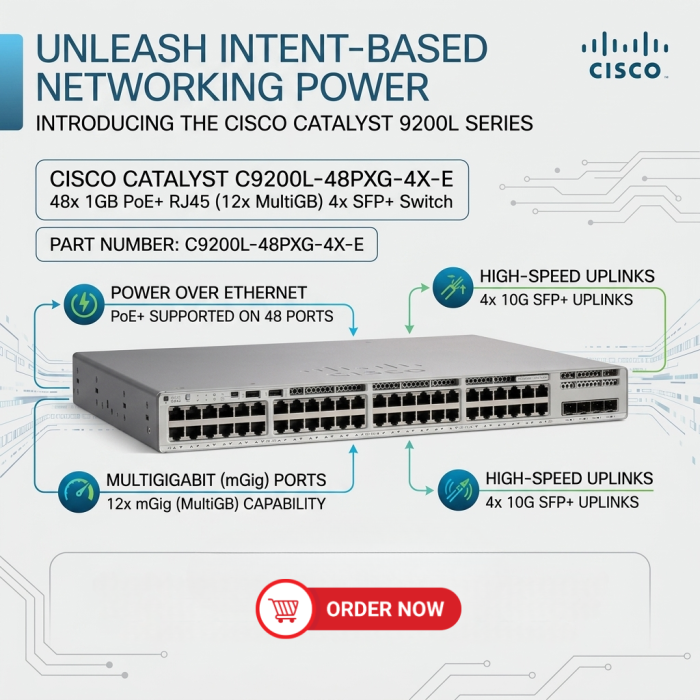

Cisco Catalyst C9200L-48PXG-4X-E 48x 1GB PoE+ RJ45 (12x MultiGB) 4x SFP+ Switch
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Key Features Of The Cisco C9200L-48PXG-4X-E
C9200L-48PXG-4X-E is the C9200L 48-p (12xmGig, 36x1G), 4x10G PoE+, Network Essentials. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
PRODUCT OVERVIEW
Cisco Catalyst C9200L-48PXG-4X-E 48x 1GB PoE+ RJ45 (12x MultiGB) 4x SFP+ Switch
The Cisco C9200L-48PXG-4X-E is an enterprise-class switch built for organizations that require scalable, secure, and high-performance networking solutions. Leveraging the renowned Cisco Catalyst architecture, this unit delivers robust Layer 3 switching capabilities for efficient traffic routing across complex infrastructures. With advanced Power over Ethernet Plus (PoE+) support on all 48 ports, it simplifies device deployment and enhances operational flexibility in dynamic workplaces across Asia, Europe, Africa, and North America. Integrated Network Essentials software provides essential automation and policy-driven management, ideal for distributors, system integrators, and end users looking for easy network scalability and strong security. This switch’s forward-thinking design delivers high stacking bandwidth, optimized Quality of Service for demanding applications, and comprehensive access controls, making it a reliable cornerstone for digital transformation in distributed business environments.
- Up to 80 Gb of Stacking Bandwidth - The 9200L switches feature StackWise®-80 technology allowing for up to 80 Gbps of stacking bandwidth. This technology provides for faster and more efficient data transfer between switches as it enables users to manage a stack of switches as a single virtual switch. The 80G of bandwidth means users can easily transfer large amounts of data between stacked switches without experiencing frustrating lags or delays. Note: Fixed stacking is not supported. You cannot stack 9200L (fixed modules) switches with 9200 (modular uplink) switches or with other series of Catalyst switches.
- Support for Dual Redundancy - These switches offer a high level of network availability thanks to support for dual redundant fans and power supplies. Dual redundancy allows users to work with confidence knowing that if one of their power supplies or fans fail, the backup will take over and the switch will continue to work seamlessly. This is incredibly important for business-critical environments where even a few minutes of downtime can have far reaching effects.
- Up to 1440W PoE+ - This switch features up to 740W of default PoE+ and can reach up to a max of 1440W of PoE+ when a second power supply is added, allowing for ample power to support a large number of PoE-enabled devices including VoIP phones, access points, security cameras and more. The default of 740W of PoE+ can provide up to 30W of power per port for up to 24 devices simultaneously, while the max of 1440W can provide up to 30W of power per port for all 48 ports.
C9200L-48PXG-4X-E Specification
- Downlinks total 10/100/1000 or PoE+ copper ports :48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G)
- Uplink configuration :4x 10G fixed uplinks
- Default primary AC power supply :PWR-C5-1KWAC
- Fans :Fixed redundant
- Software :Network Essentials
- Chassis Dimensions :1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm
- Virtual Networks :1
- Stacking bandwidth :80 Gbps
- Total number of MAC addresses :16,000
- Total number of IPv4 routes (ARP plus learned routes) :11,000 (8,000 direct routes and 3,000 indirect routes)
- IPv4 routing entries :3,000
- IPv6 routing entries :1,500
- Multicast routing scale :1,000
- QoS scale entries :1,000
- ACL scale entries :1,500
- Packet buffer per SKU :6 MB buffers for 24- or 48-port Gigabit Ethernet models
- Flexible NetFlow (FNF) entries :16,000 flows on 24- and 48-port Gigabit Ethernet models
- DRAM :2 GB
- Flash :4 GB
- VLAN IDs :1024
- Total Switched Virtual Interfaces (SVIs) :512
- Jumbo frames :9198 bytes
- Wireless bandwidth per switch :N/A
- Switching capacity :392 Gbps
- Forwarding rate :291.66 Mpps
- Mean time between failures (hours) :337,360
| Product Name | Cisco Catalyst C9200L-48PXG-4X-E 48x 1GB PoE+ RJ45 (12x MultiGB) 4x SFP+ Switch |
|---|---|
| Weight | 4.800000 |
| Memory | DRAM: 2 GB | Flash: 4 GB |
| Ethernet | 10/100/1000 Mbps Base-T Gigabit Ethernet |
| I/O Port | 48 × 10/100/1000 Full PoE+ ports (740W default PoE budget) |
| Operating System | Cisco IOS XE (Network Essentials Software level) |
| Cpu | Cisco UADP 2.0 Min |
| Dimensions | 44.5 cm x 28.8 cm x 4.4 cm |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United States |
