PRODUCT OVERVIEW

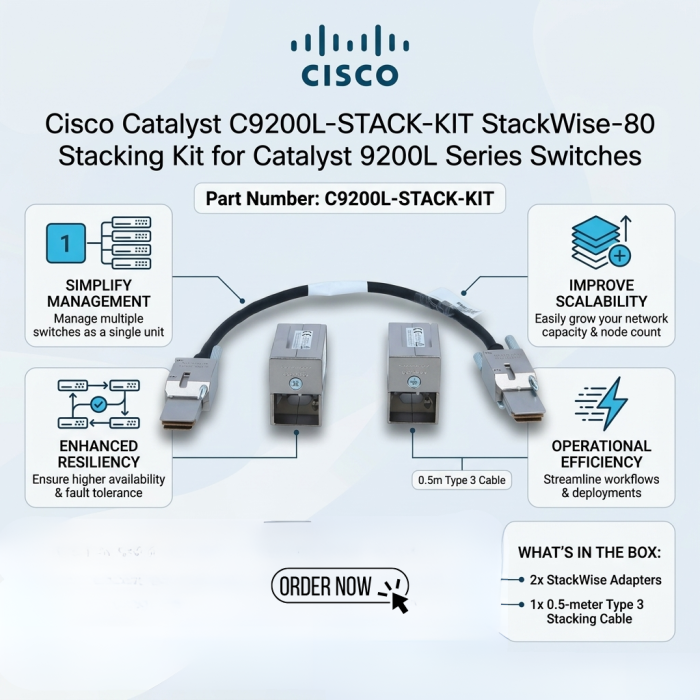

Cisco Catalyst C9200L-STACK-KIT StackWise-80 Stacking Kit for Catalyst 9200L Series Switches

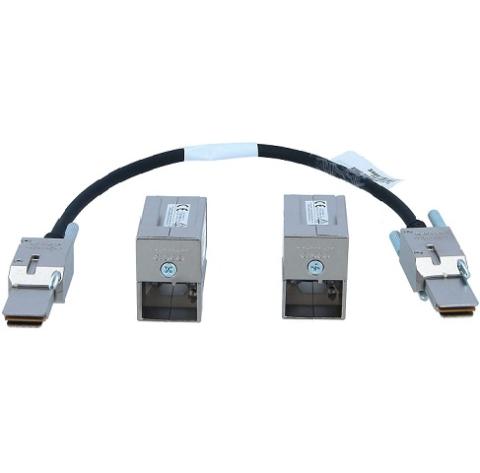

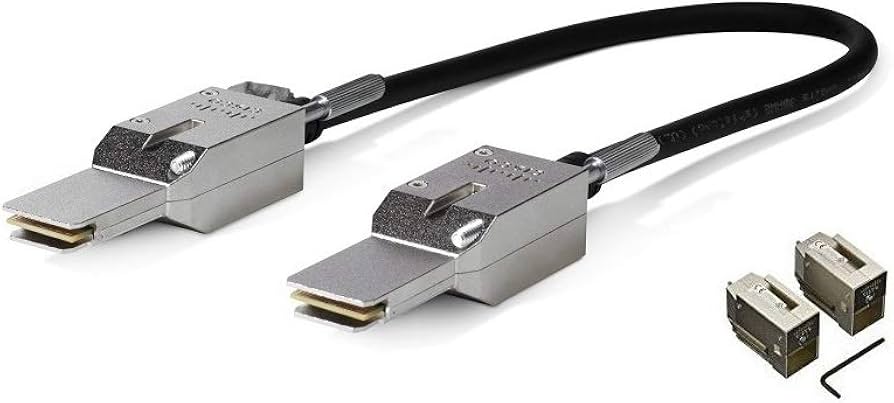

The Cisco Catalyst C9200L-STACK-KIT is a StackWise-80 stacking kit designed specifically for Cisco Catalyst 9200L Series fixed switches. It enables multiple compatible switches to operate as a single logical unit, simplifying network management while improving scalability, resiliency, and operational efficiency. The kit includes two StackWise adapters and one 0.5-meter Type 3 stacking cable, providing everything needed to establish a high-speed stack connection.

Built on Cisco StackWise-80 technology, the C9200L-STACK-KIT provides up to 80 Gbps stacking bandwidth, allowing high-speed communication between stacked switches. It supports stacks of up to eight Cisco Catalyst 9200L switches, delivering a unified control plane, simplified configuration, and improved network availability for enterprise and branch deployments.

The kit is compatible only with Cisco Catalyst 9200L Series switches and is not supported on modular Cisco Catalyst 9200 (C9200) models. Organizations can also choose optional 1-meter and 3-meter Type 3 stacking cables for installations requiring longer distances between switches.

The Cisco Catalyst C9200L-STACK-KIT is ideal for enterprise campuses, branch offices, educational institutions, healthcare facilities, retail environments, and government organizations seeking a reliable and scalable stacking solution. Its hot-pluggable design minimizes downtime while enabling simplified network expansion and centralized switch management.

Key Features

• Cisco StackWise-80 stacking technology
• Supports up to 80 Gbps stacking bandwidth
• Includes 2 × StackWise adapters
• Includes 1 × 0.5 m Type 3 stacking cable
• Supports stacking of up to 8 Cisco Catalyst 9200L switches
• Simplified single-switch management
• Hot-pluggable stack components
• Compatible only with Cisco Catalyst 9200L Series switches
• Optional 1 m and 3 m Type 3 stack cables available
• Ideal for enterprise campus and branch office deployments

Technical Specifications

• Model: C9200L-STACK-KIT
• Product Type: StackWise-80 Stacking Kit
• Included Components: 2 × Stack Adapters, 1 × 0.5 m Type 3 Stack Cable
• Stacking Technology: Cisco StackWise-80
• Maximum Stack Members: 8
• Stacking Bandwidth: Up to 80 Gbps
• Compatible Switches: Cisco Catalyst 9200L Series
• Operating System: Cisco IOS XE (Host Switch)
• Weight: 0.27 kg (0.60 lb)
